TRANSTIG 170Pi

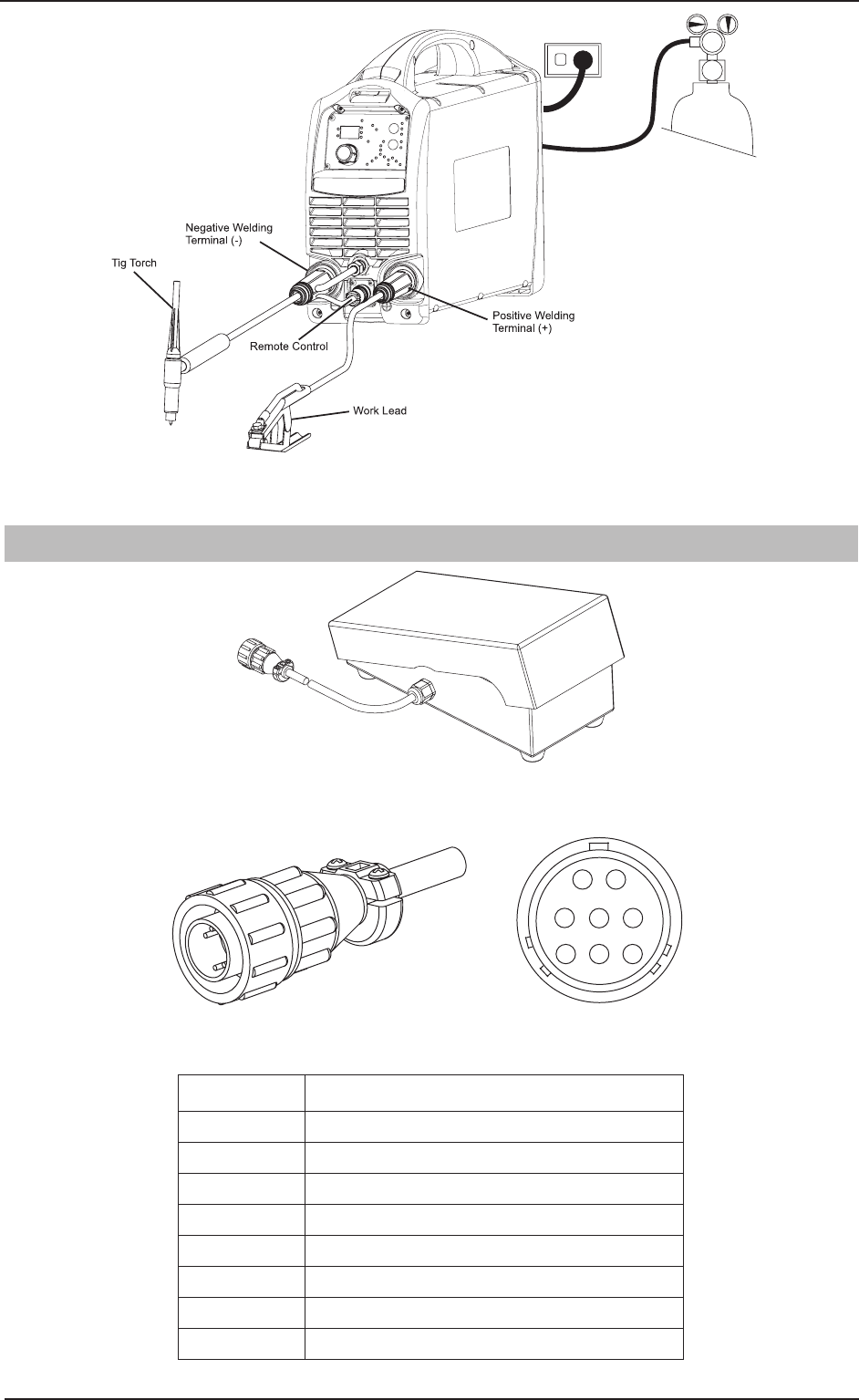

Manual 0-5241 3-17 INSTALLATION, OPERATION AND SETUP

A-11666

Figure 3-7: Setup for TIG Welding

3.09 Foot Control Part No. W4015800 (Optional Accessory)

Art # A-11338

Figure 3-8: Foot Control

Art # A-11339

345

Art # A-11340

Figure 3-9: 8 Pin Control Plug

Pin Description

1 Not Used

2 Trigger Switch

3 Trigger Switch

4 Not Used

5 Potentiometer Maximum

6 Potentiometer Minimum

7 Potentiometer Wiper

8 Not Used

Table 3-2
