TRANSTIG 170Pi

Manual 0-5241 3-7 INSTALLATION, OPERATION AND SETUP

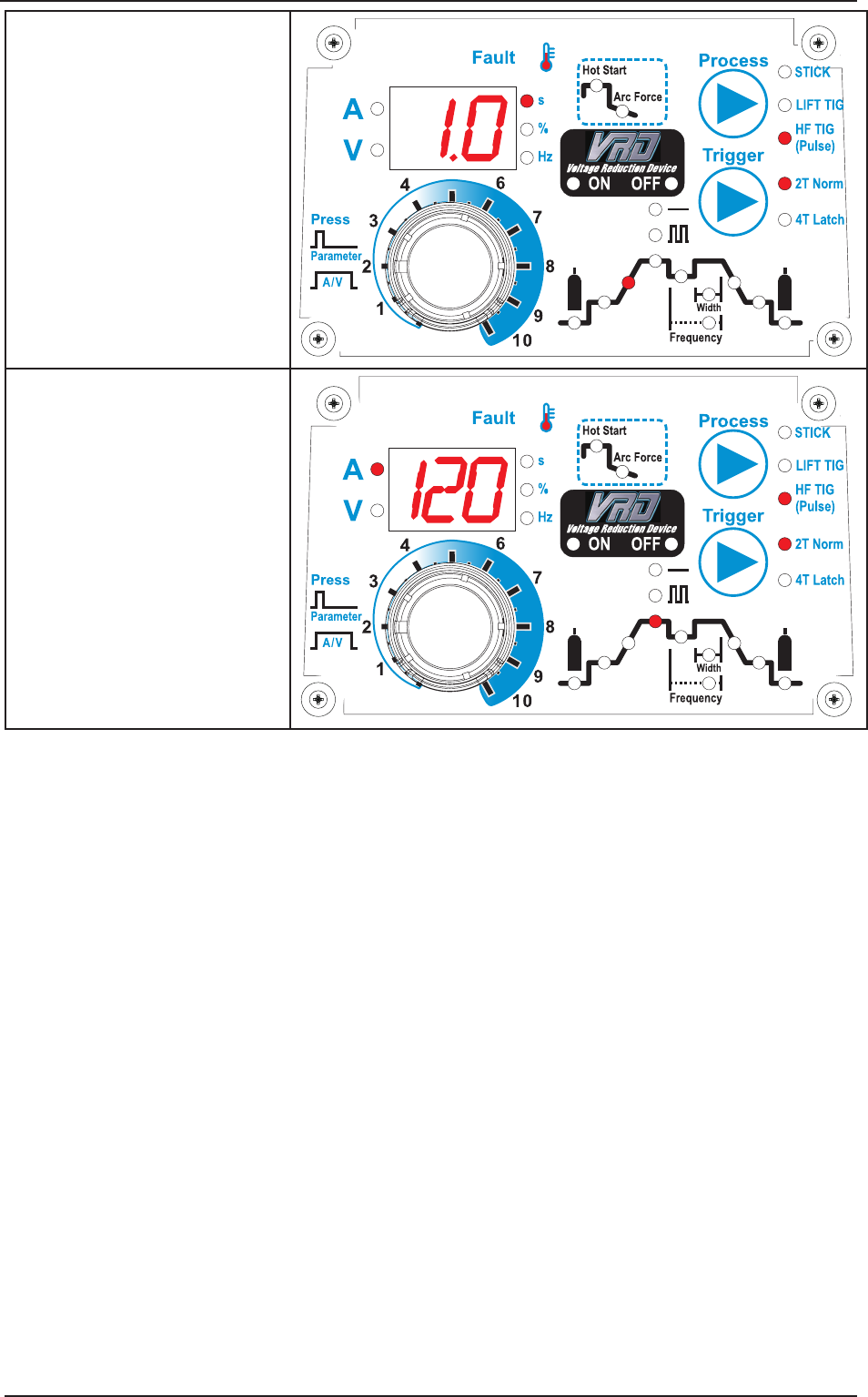

Up Slope

This parameter operates in TIG

modes only and is used to set the

time for the weld current to ramp

up from INITIAL current to BASE

current.

Range is 0.0 to 15.0 seconds.

Factory default is 1.0 second.

Base Current

In DC TIG mode, this parameter

sets the TIG welding current. In

PULSE TIG mode, this parameter

sets the PEAK current.

Range is 5 to 170A. Factory default

is 120A.
