TRANSTIG 170Pi

Manual 0-5241 3-5 INSTALLATION, OPERATION AND SETUP

A-11647

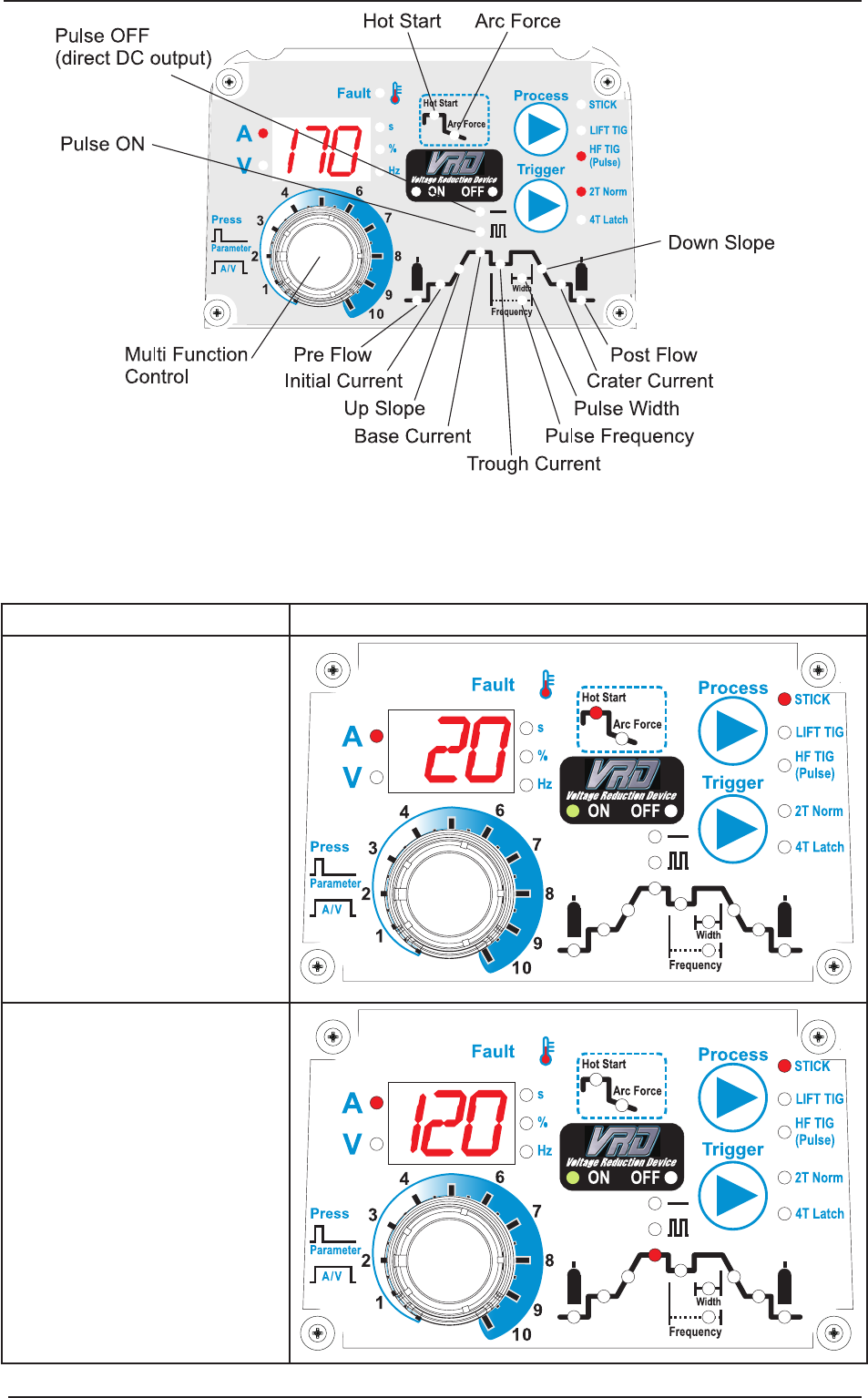

Figure 3-3: Programming Mode

STICK Programming Mode

Programming Parameter Control Panel Display

Hot Start

This parameter operates in

STICK mode to improve the start

characteristics for stick electrodes

HOT START current is on top of the

BASE current.

e.g. HOT START current = 130 amps

when BASE (WELD) = 100 amps &

HOT START = 30 amps

Range is 0 to 70A. Factory default

is 20A. Note that maximum weld

current is 170A.

Base Current

This parameter sets the STICK weld

current.

Range is 5 to 170A. Factory default

is 120A.
