Installation Guide

Aug. 2019

SP-6K-SS

STEP 3

Before mounting motor pump, first mount the bracket on the side you preferred (Right or Left or Back).

Then mount the motor pump on the back of column. Fix it using bolts and nuts. Connect the hose from the

cylinder to the motor pump. (Fig.6 A, B, C) The hose has different fittings on each end. So make sure you

match up the end of the hose with the cylinder. There is an O-ring on the end of the cylinder tube. Make sure

these fittings are tight.

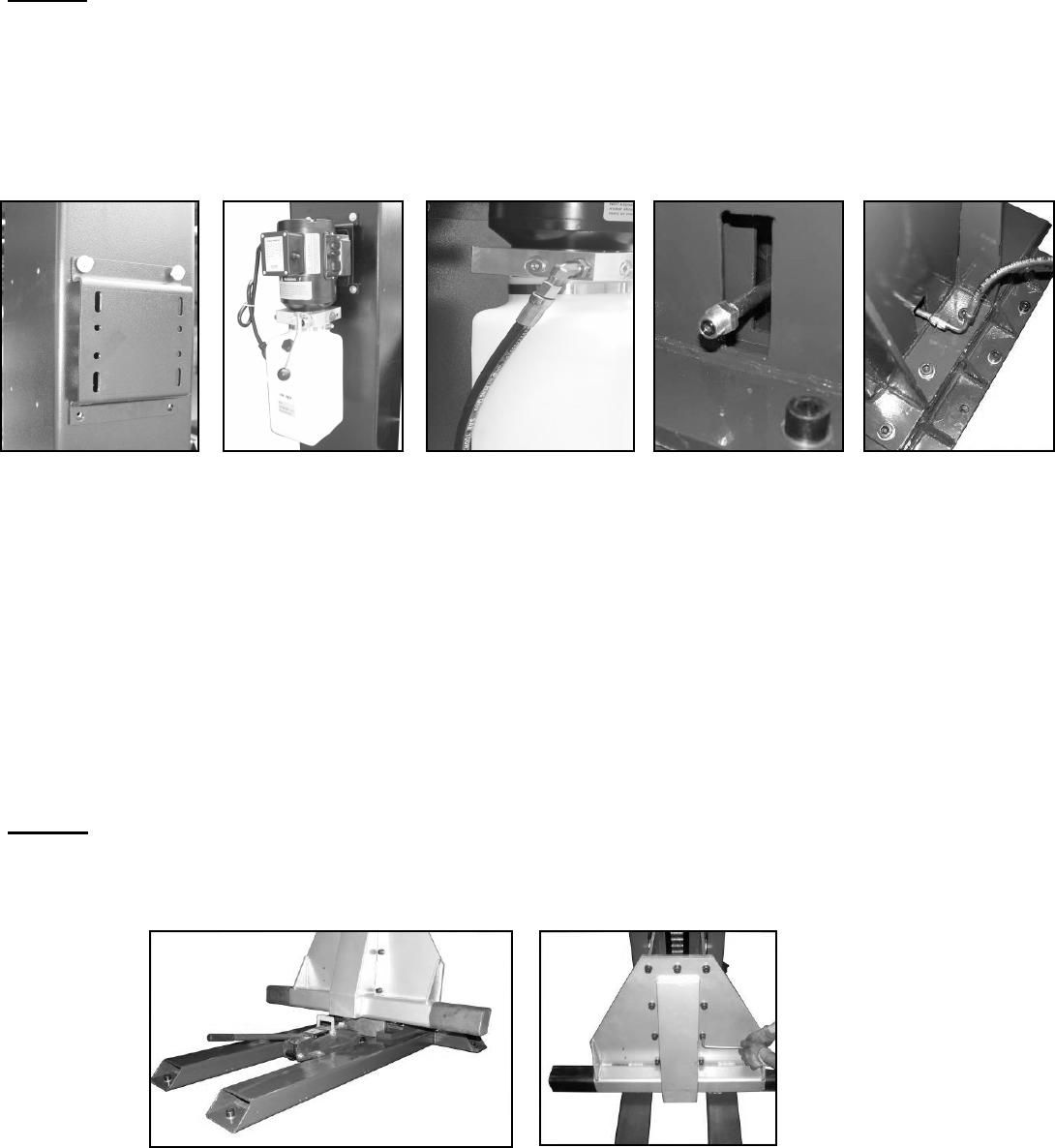

Fig. 6

A, B, C, D, E (Motor Pump & Hose)

Fill the tank with hydraulic oil (about 6 Liter). It is suggested to be AW 32/46 Non-Detergent Non-Foaming

Anti-Wear Hydraulic Oil (SAE-10).

Now you need to get the motor pump with the correct power connection. Your 110V pump does come with a

short cord attached to the motor. But because it may be not long enough and there are so many receptacle

variations, you will need a proper extension cord and/or to install a plug on the end of the cord. If you are not

sure the cord size and which plug to use, consult your electrician. And the motor running direction should be

the same as the indication on it.

STEP 4

The next task is to position the lifting frame on the carriage with hex socket bolts. (Fig.8 A & B) A hydraulic

floor jack or bottle jack is recommended to assist in aligning mounting holes. Tighten all the bolts securely.

Fig. 8

A & B (Lifting Frame)
