STEP 7
Attach drive-on ramps to end of runway platforms, along with ramp supports, according to the driving direction.
Ensure Circlips are properly installed into slots on pivot pins. (Fig.11 A, B, C)

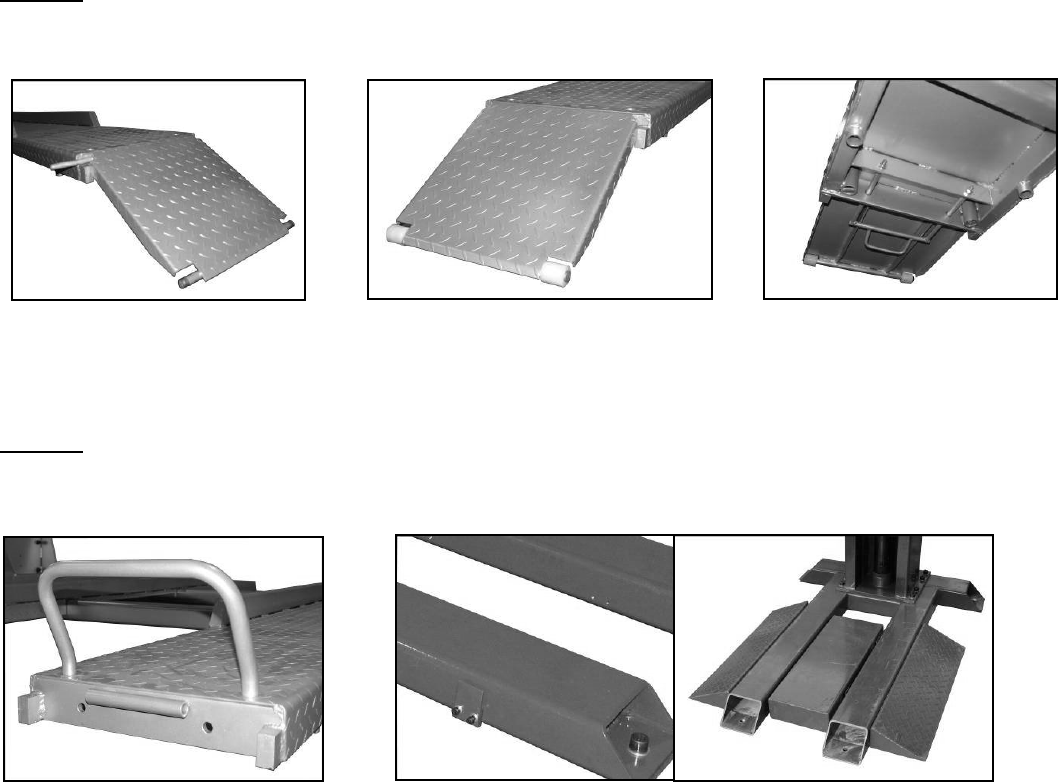

Fig. 11
A, B, C (Ramps & Support Brackets)
STEP 8
Put on the wheel stop at the other end of the runway (Fig. 12). Bolt the ground ramp fixing chip on the base
plate. Then put on the ground ramps and middle spacer. (Figs. 13, 14)
Figs.12, 13 & 14
(Wheel Stops, Ground Ramps & Middle Spacer)
Re-check to ensure all Nuts, Bolts & Fasteners are securely tightened.
The lift is now ready for testing.
