User Manual

6. Lithium battery(Lilo/LiPo/LiFe)program

These programs are only suitable for charging and discharging Lithium batteries with

a nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different

charge technique is termed a constant voltage(CV) and constant current(CC) method. The

charge current varies according to the battery capacity and performance. The nal voltage

of charge process is also very important; it should be precisely matched with the charade

voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6 V for LiFe. The charge

current and nominal voltage as for cell count set on the charge program must always be

correct for the battery to be charged.

When you are willing to alter the parameter value in the program, press Start/Enter key to

make it blink then change the value with INC or DEC key. The value will be stored by pressing

Start/Enter key once.

6.1 Charging of Lithium Battery

This charging mode is for LiPo/LiIo/LiFe battery without balance lead.

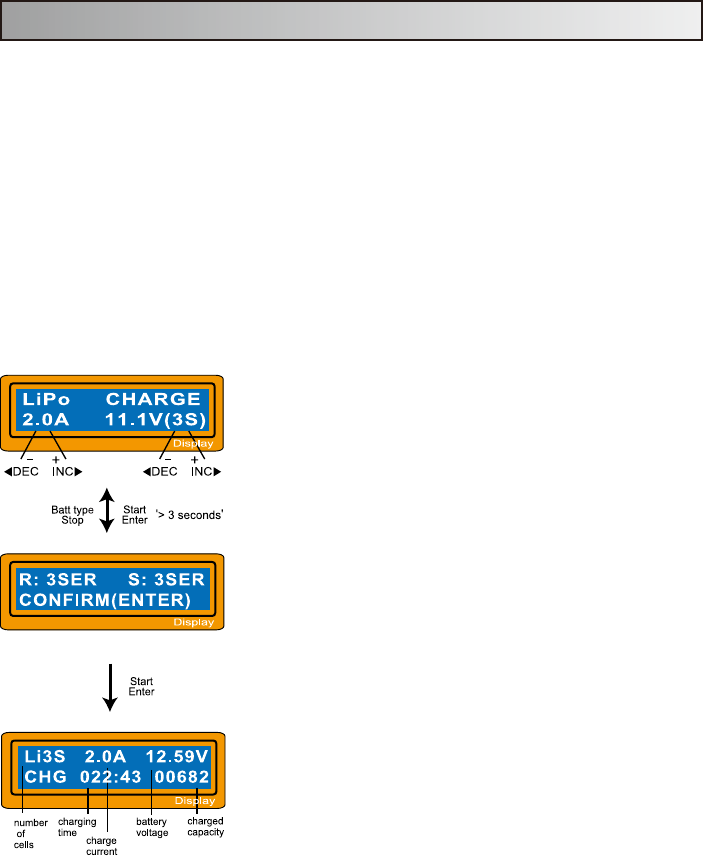

The left side of the first line shows the type of battery you

select at the users setting. The value on the left side of

second line sets a charge current and the value on the right

side of second line sets the voltage of the battery pack.

After setting the current and voltage press Start/Enter

key for more than 3 seconds to start the process.

(Charge current:0.1~6.0A,Voltage:3.7~22.2V)

This shows the number of cells you set up and the

processor detects. ' R:' shows the number of cells found

by the charger and ' S:' is the number of cells selected by

you at the previous screen. If both numbers are identical

you can start charging by press Start/Enter button. If

not, press Batt Type/Stop button to go back to previous

screen. Then carefully check the number of cells of the

battery pack to charge again.

The screen shows the present situation during charge

process. To stop charging press Batt Type/Stop key once

6.2 Charging Lithium battery at balance mode

This function is for balancing the voltage of Lithium-polymer battery cells while charging.

In the balance mode, the battery needs to have a balance lead to connect to the battery's

power lead to the output of chaeger.

In this mode, the charging process will be different from ordinary charging mode. The

internal processor of the charger will monitor the voltages of each cell of the battery pack

and controls charging current that is feeding to each cell to normalise the voltage.
