Ampli er Considerations
The TPX series loudspeakers are optimized for use with the TURBOSOUND T series ampli ers with the LMS series controllers. A full range of DSP settings to suit
any con guration are provided for download on the TURBOSOUND website. The use of third party ampli cation and processing is only advised using the matrix of
manual settings as well as the limiter calculator provided on the TURBOSOUND website. The TPX series loudspeaker enclosures should be driven by high quality power
ampli ers designed for true professional use. Power ampli ers should be capable of delivering long term broadband power equal to half the loudspeaker’s peak power
rating at its stated nominal impedance. The use of underpowered ampli ers must be avoided as heavily clipped signals can cause permanent loudspeaker damage.
Limiters, crossovers and equalisation points must be set in accordance with the settings provided on the TURBOSOUND website. This will ensure the optimum sound
quality and long-term reliability as well as protection from damage.
Neutrik speakON* NL4 locking input connector(s) are provided, allowing options for input and link through.

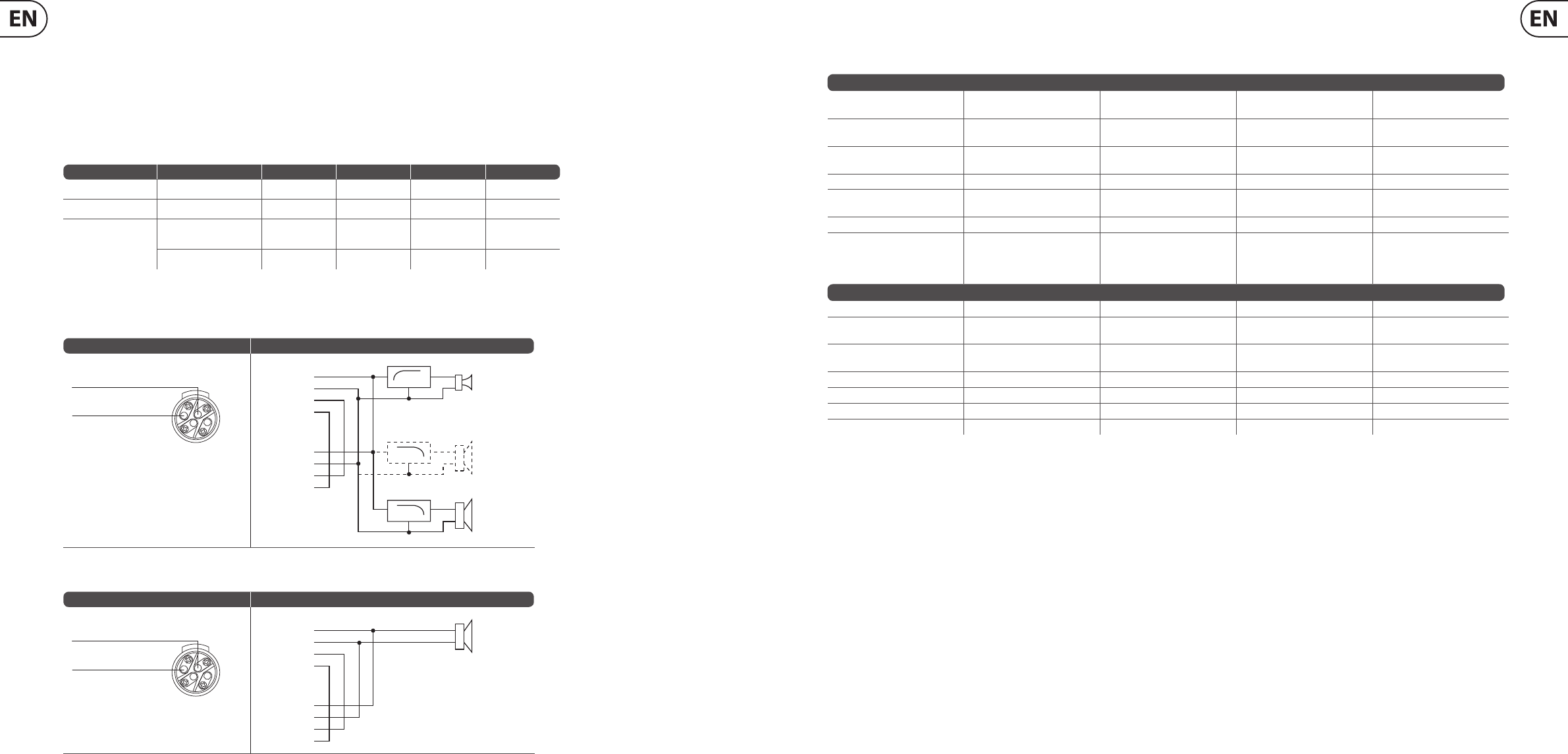

Connections
Models: TPX122M, TPX152, TPX153
Connector Internal Schematic
speakON NL4
1-
2-
2+
1+
PASSIVE, Input Full Range -
PASSIVE, Input Full Range +
HPF
HF
NL4
Input/
Link
1+
1 -
2+
2 -
>
>
>
>
>
>
>
>
1+
1 -
2+
2 -
NL4
Input/
Link
LPF
LF
LF/
TPX153
only
LPF
Models: TPX118B
Connector Internal Schematic
speakON NL4
1-
2-
2+
1+
Input SUB -
Input SUB +
NL4
Input/
Link
1+
1-
2+
2 -
>
>
>
>
>
>
>
>
1+
1-
2+
2 -
NL4
Input/
Link
LF
Model  TPX122M TPX152 TPX153 TPX118B
Mode  Passive Passive Passive Passive
Impedance  8  8  4  4 
Minimum
Ampli er
Power
Continuous RMS 250 W 250 W 500 W 600 W
Peak 1000 W 1000 W 2000 W 2400 W
Technical Speci cations
TPX122M TPX152 TPX153 TPX118B
System
Frequency response
75 Hz – 20 kHz ±3 dB
60 Hz – 20 kHz -10 dB
50 Hz – 20 kHz ±3 dB
40 Hz – 20 kHz -10 dB
50 Hz – 20 kHz ±3 dB
40 Hz – 20 kHz -10 dB
45 Hz – 200 Hz ±3 dB
35 Hz – 200 Hz -10 dB
Nominal dispersion
70° H x 50° V @
-6 dB points
70° H x 50° V @
-6 dB points
70° H x 50° V @
-6 dB points
Half space
Power handling (IEC)
250 W continuous,
1,000 W peak
250 W continuous,
1,000 W peak
500 W continuous,
2,000 W peak
600 W Continuous,
2,400 W peak
Sensitivity 97 dB (1 W @ 1 m) 97 dB (1 W @ 1 m) 97 dB (1 W @ 1 m) 98 dB (1 W @ 1 m)
Maximum SPL
121 dB continuous,
127 dB peak
121 dB continuous,
127 dB peak
124 dB continuous,
130 dB peak
126 dB continuous,
132 dB peak
Impedance 8 Ω 8 Ω 4 Ω 4 Ω
Components
1 x 12" (308 mm)
LF driver
1 x 1" (25 mm)
HF compression driver
1 x 15" (388 mm)
LF driver
1 x 1" (25 mm)
HF compression driver
2 x 15" (388 mm)
LF driver
1 x 1" (25 mm)
HF compression driver
1 x 18" (460 mm)
LF driver
Enclosure
Connectors 2 x Neutrik speakON NL4 2 x Neutrik speakON NL4 2 x Neutrik speakON NL4 2 x Neutrik speakON NL4
Wiring
Pins 1+ / 1- input,
pins 2+ / 2- link
Pins 1+ / 1- input,
pins 2+ / 2- link
Pins 1+ / 1- input,
pins 2+ / 2- link
Pins 1+ / 1- input,
pins 2+ / 2- link
Dimensions HWD
582 x 424 x 328 mm
(23.0 x 16.7 x 13.0")
691 x 460 x 437 mm
(27.2 x 18.1 x 17.2")
1085 x 461 x 435 mm
(42.7 x 18.1 x 17.1")
599 x 514 x 556 mm
(23.6 x 20.2 x 21.9")
Net weight 18.9 kg (41.7 lbs) 24.8 kg (54.7 lbs) 38.6 kg (84.9 lbs) 34.8 kg (76.8 lbs)
Construction 18 mm (¾ ") particle board 18 mm (¾ ") particle board 18 mm (¾ ") particle board 18 mm (¾ ") particle board
Finish Black carpet covering Black carpet covering Black carpet covering Black carpet covering
Grille Powder-coated perforated steel Powder-coated perforated steel Powder-coated perforated steel Powder-coated perforated steel
