Specifications Guide

2001 East Terra Lane | O’Fallon, MO 63366-4434 | p 636.240.2400 | f 636.272.7546
www.true-residential.com | [e-mail]
MS•5/17

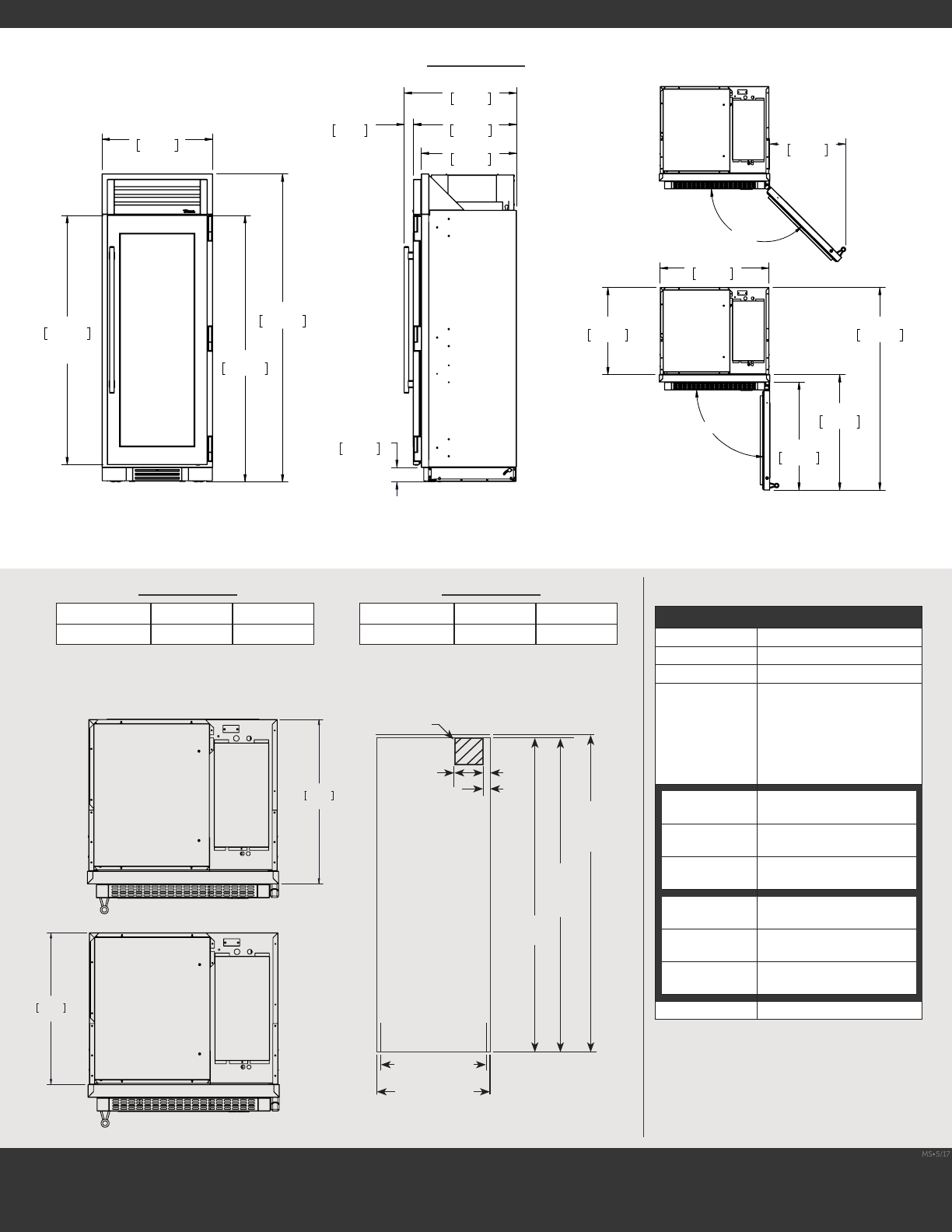

PLAN VIEW
FLUSH OPENING DIMENSIONS PROUD OPENING DIMENSIONS
Dimensions may vary by ± 1/8”
Width Depth† Height
29¾" 24" 84"
83 15/16"
2132mm
30"
762mm
67 29/32"
1725mm
DOOR
HEIGHT
72 5/8"
1845mm
25 25/32"
655mm
27 29/32"
709mm
30 15/32"
774mm
2 9/16"
65mm
3 15/16"
100mm
90°
29 15/32"
748mm
31 15/32"
799mm
55 1/4"
1403mm
23 25/32"
604mm
29 9/16"
751mm
135°
20 19/32"
523mm
TR-30REF-R-SG-A
R
†Depth does not include 2 ⁄for door handle.
**Because of the weight of this unit, it is recommended to
consult a flooring expert prior to installation. The flooring
beneath the unit should be rated to support at least 150
pounds per square foot.
SPECIFICATIONS
Width 30"
Depth† 28"
Height 84"
Shelving
4 adjustable/removable stainless
steel encapsulated glass shelves.
3 stainless steel soft-close drawer
bins with polycarbonate fronts
and integrated handles.
3 adjustable/removable stainless
steel door bins (Solid door only).
Flush Opening
Width
30¼"
Flush Opening
Depth
26"
Flush Opening
Height
84¼"
Proud Opening
Width
29¾"
Proud Opening
Depth
24"
Proud Opening
Height
84"
Weight** TBD lbs
Width Depth† Height
30¼" 26" 84¼"
FRONT VIEW SIDE VIEW TOP VIEWS
23 25/32"
604mm
PROUD INSTALL
25 25/32"
655mm
FLUSH INSTALL
TR-30REF-R-SG-A
R
23 25/32"
604mm
PROUD INSTALL
25 25/32"
655mm
FLUSH INSTALL
TR-30REF-R-SG-A
R
84"
(2134 mm)
PROUD
INSTALL
84
1
/4"
(2140 mm)
FLUSH
INSTALL
77"
(1956 mm)
2"
(51 mm)
8"
(204 mm)
Electrical located
in this area.
30
1
/4"
(769 mm)
29
3
/4"
(756 mm)
FLUSH
INSTALL
PROUD
INSTALL
TOP VIEW
FIGURE 1 ROUGH OPENING
FRONT VIEW
FIGURE 2 ROUGH OPENING
