Datasheet

Item no. 1619012 / 1618956 / 1618971

0.30" Dual Digit Numeric Displays Common Anode

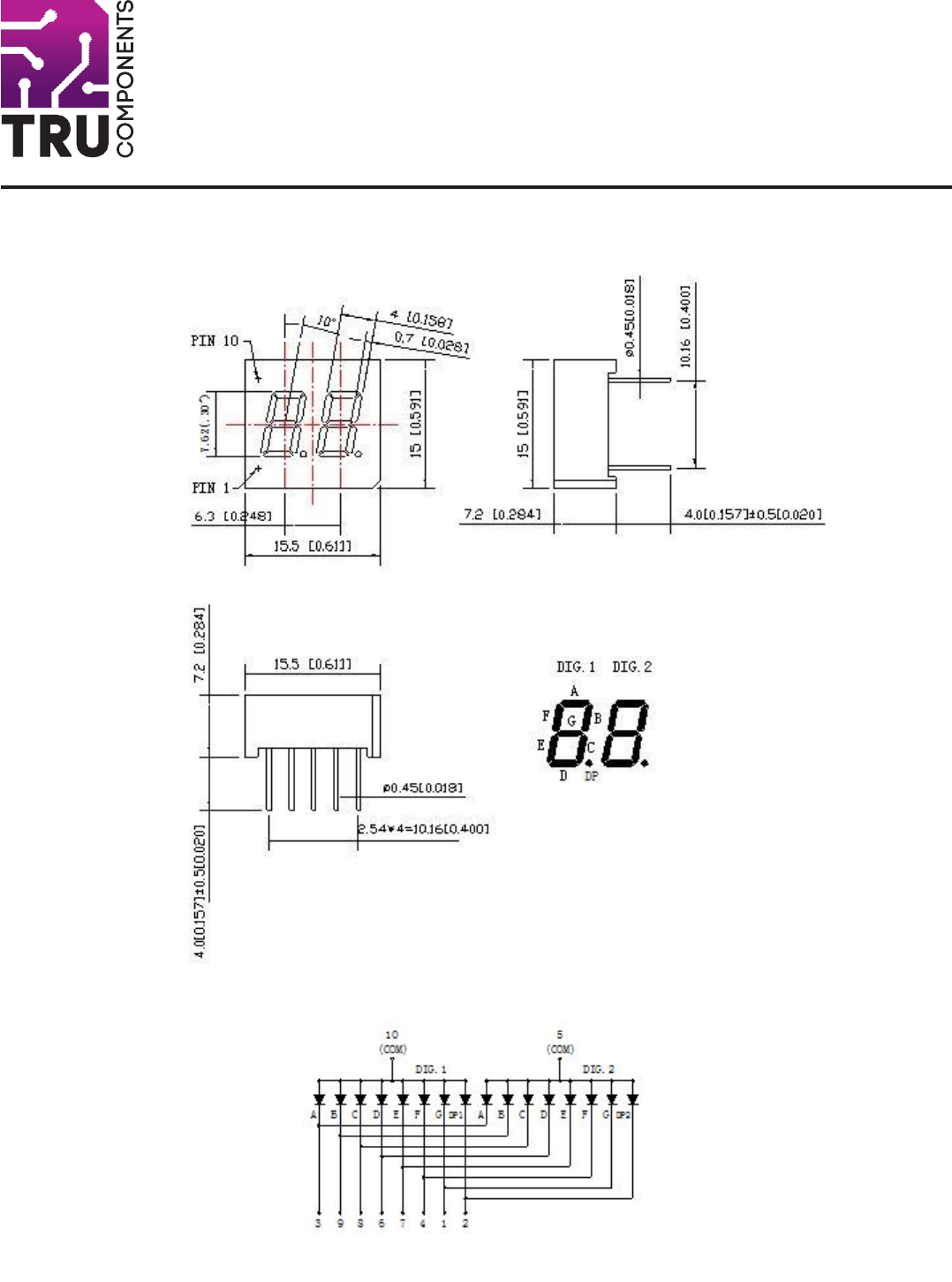

Package Dimension:

Common Anode

Notes:

All dimensions are in millimeters (inches).

Tolerance is ± 0.25 mm (.010″) unless otherwise noted.

Specifications are subject to change without notice.

PAGE 1
Distributed by Conrad Electronic SE • Klaus-Conrad-Str. 1 • D-92240 Hirschau Datasheet Item no. 1619012 / 1618956 / 1618971 0.30" Dual Digit Numeric Displays Common Anode Package Dimension: Common Anode Notes: All dimensions are in millimeters (inches). Tolerance is ± 0.25 mm (.010″) unless otherwise noted. Specifications are subject to change without notice.
PAGE 2
Distributed by Conrad Electronic SE • Klaus-Conrad-Str. 1 • D-92240 Hirschau Datasheet Item no. 1619012 / 1618956 / 1618971 Absolute Maximum Ratings at Ta=25℃ Parameters Power Dissipation Per Segment Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width) Forward Current Per Segment Dating Linear From 50°C Reverse Voltage Operating Temperature Range Storage Temperature Range Soldering Temperature Symbol PD Max. 60 Unit mW IFP 100 mA IF 25 0.
