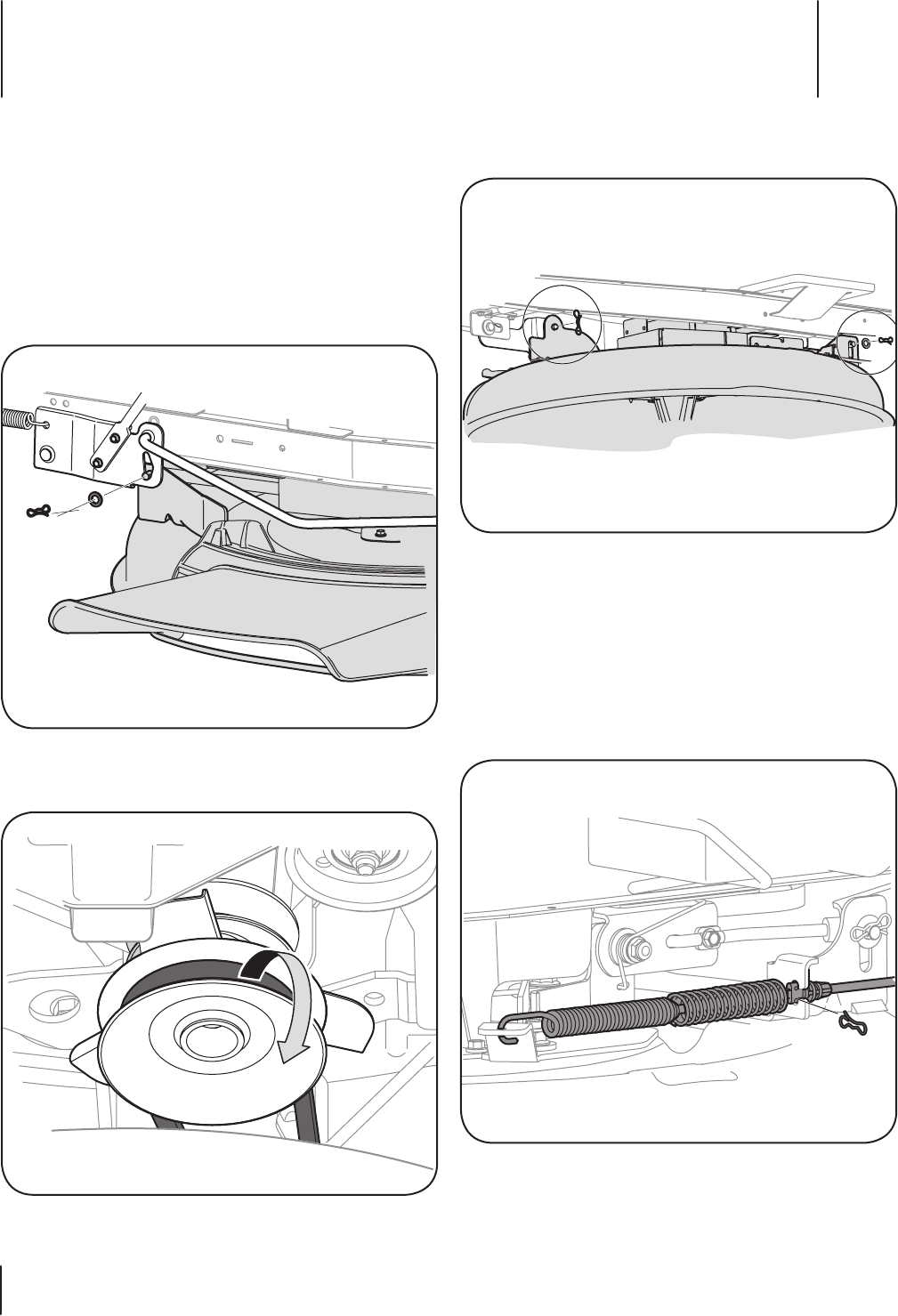

5. Remove the remaining bow-tie cotter pins securing the
deck to the unit, as shown in Figure 7-3.
Figure 7-3
NOTE: The bow-tie clips should be re-installed from the top
down.
 Unplug the wire pigtail from the deck switch.
7. Move the deck lift lever into the top notch on the right
fender to raise the deck lift arms up and out of the way.
8. 
deck by removing the bow-tie cotter pin which secures it.

Figure 7-4
 Gently slide the cutting deck (from the left side) out from
underneath the tractor.
Cutting Deck Removal
To remove the cutting deck, proceed as follows:
 
position and engage the parking brake.
2. Lower the deck by moving the deck lift lever into the
bottom notch on the right fender.
3. Remove the bow-tie cotter pin and flat washer from the
deck lift assembly, and retain for reinstallation later. See

Figure 7-1
 
Figure 7-2.
Figure 7-2
