9. Giving 2 users access to 1 computer
To give 2 users access to 1 computer connect the system as in
Figure 7.
The connections are the same as in Figure 6, with the addition
of a KVM workstation for user 2.
Access to the computer is on a first-come-first-served basis.
6VDC
SD
DESKPRO
Ω
SD
P110
Computer
Transmitter
Receiver
CAT5 FTP cable
Up to 110m / 360ft
To Monitor port
SD
P110
To Keyboard
port
To Mouse
port
User 1
User 2
CAT5
SMART
Extender
RECEIVER
MINICOM
www.minico m.com
CAT5
SMART
Extender
TRANSMITTER
MINICOM
www.minicom.com

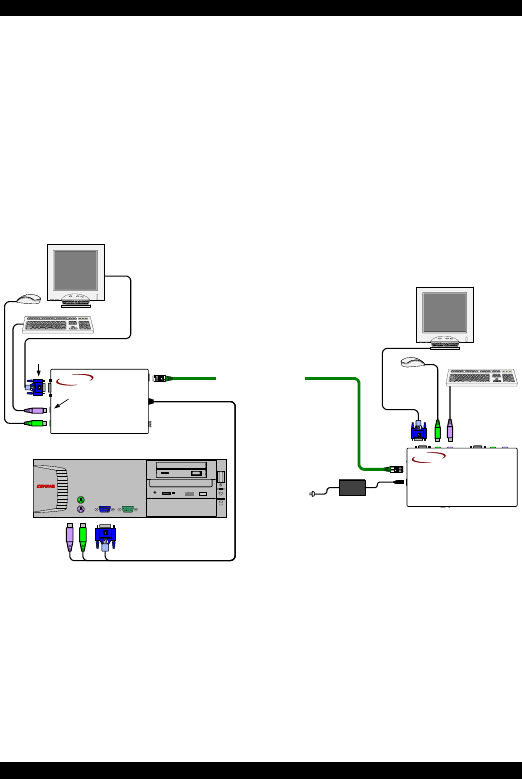

Figure 7 Giving 2 users access to 1 computer
