An internal relay is used to enable external amplifi ers when the
controller has powered up correctly and the system and application
software are ready. The amplifi er enable is a single pole solid state
relay with a normally open “contact”. The enable relay contact will
be open circuit if there is no power on the controller OR a following
error exists on a servo axis OR the user program sets it open with
the WDOG=OFF command.
ALL STEPPER AND SERVO AMPLIFIERS MUST BE INHIBITED WHEN
THE AMPLIFIER ENABLE OUTPUT IS OPEN CIRCUIT

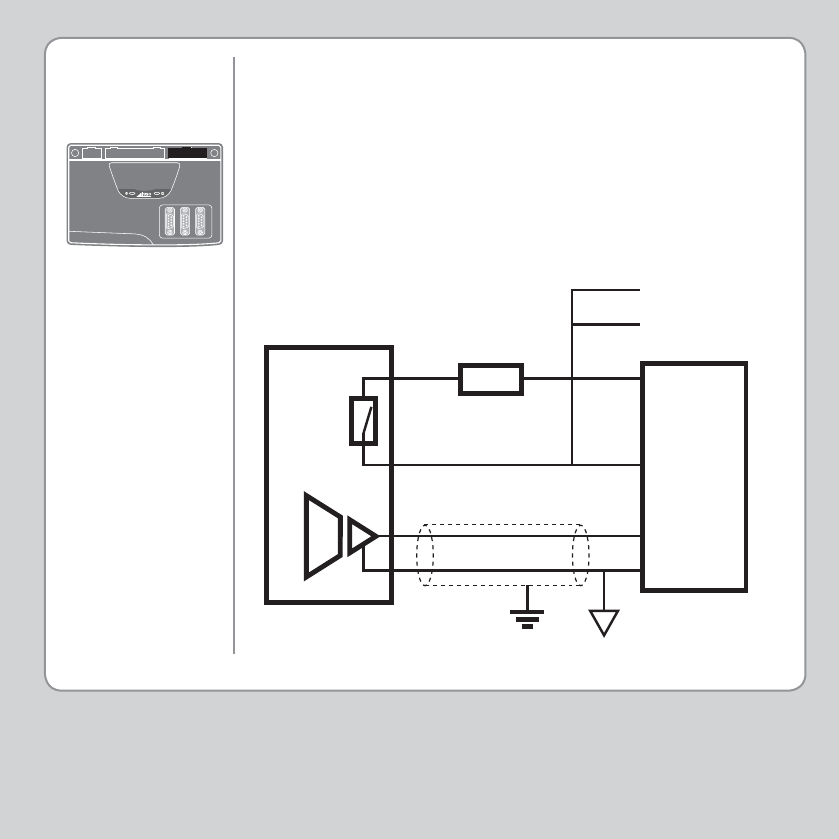

AMPLIFIER
ENABLE
(WATCHDOG)
RELAY OUTPUT
MC 403
Amplifi er
Enable 1
Amplifi er
Enable 2
V+
V-
Trio Controller Servo Amplifi er
To other axis enables
24V 0V
0V
Enable
VIN +
VIN-
