Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to

ensure you have received all components.

If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY

Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online

via “Contact Us” section at www.trinityii.com.

You will need a Phillips screwdriver for assembly which is not provided.

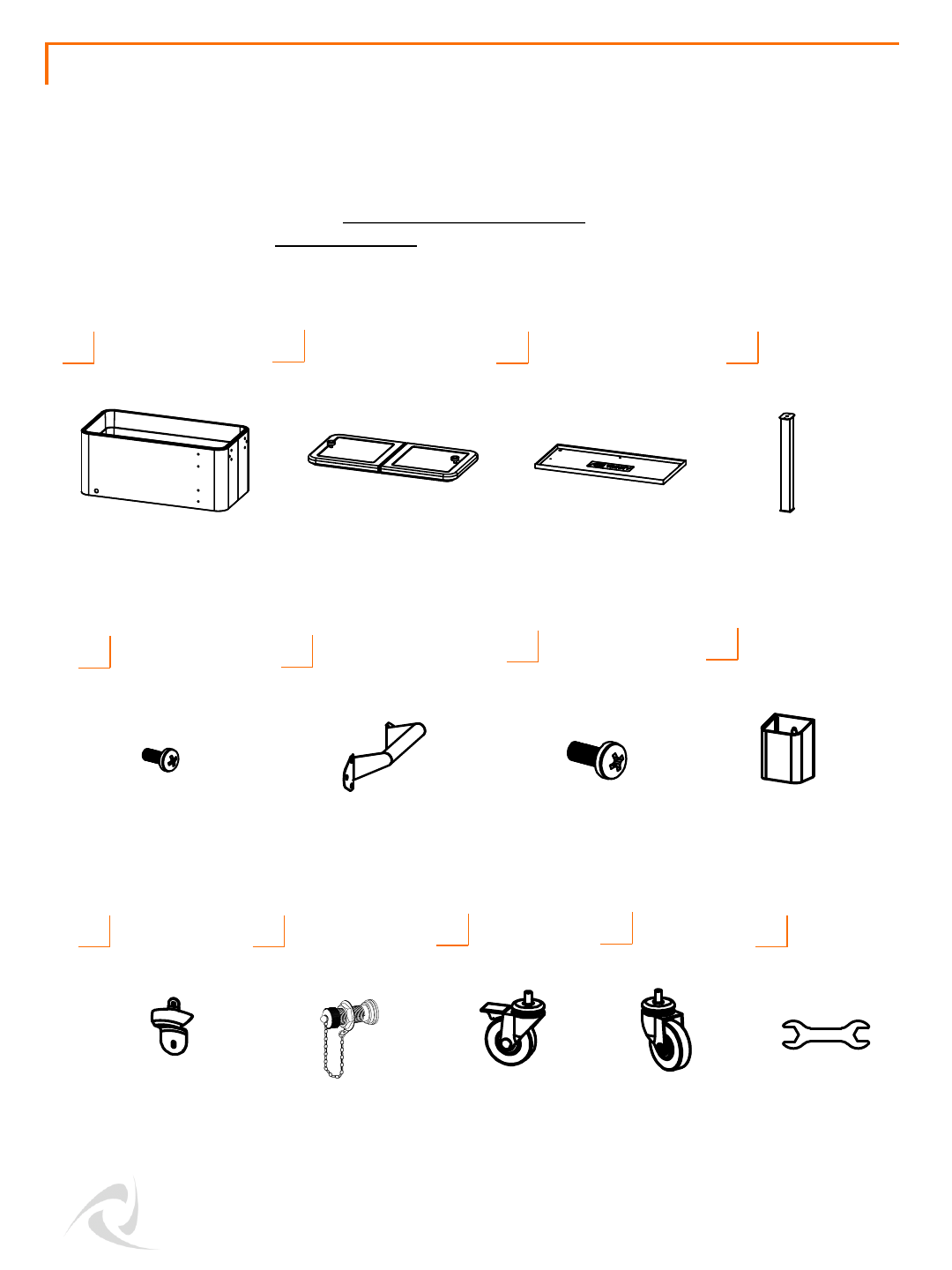

PARTS LIST

TUB (1)

LID (1)

SHELF (1)

LEG (4)

SMALL

SCREW (10)

HANDLE (2)

LARGE

SCREW (12)

CAP CATCHER (1)

BOTTLE

OPENER (1)

I J

DRAIN PLUG (1)

LOCKING

CASTER (2)

NON-LOCKING

CASTER (2)

WRENCH (1)

Summary of content (5 pages)

PAGE 1
PARTS LIST Your TRINITY Stainless Steel Cooler should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. Parts can also be requested online via “Contact Us” section at www.trinityii.com. You will need a Phillips screwdriver for assembly which is not provided.
PAGE 2
ASSEMBLY INSTRUCTIONS STEP 1 Align HANDLES (F) on each side of TUB (A). Attach HANDLE (F) with LARGE SCREW (G). Make sure to tighten securely. HANDLES (F) can be attached either angled up or down based on your preference. A (1) F (2) G (12) Phillips F G A STEP 2 Turn Cooler upside down. Align LEG (D) with holes on bottom of TUB (A). Attach LEG (D) with SMALL SCREWS (E). Make sure to tighten securely. D (4) E (8) Phillips D E © 2020 TRINITY - 800.985.
PAGE 3
ASSEMBLY INSTRUCTIONS STEP 3 Align holes in SHELF (C) with bottom of LEG (D), making sure that Shelf Lip is facing TUB (A). Screw LOCKING CASTER (K) into bottom of LEG (D), securing SHELF (C) in between. Make sure LOCKING CASTERS (K) are installed on the same side. Screw NON-LOCKING CASTER (L) into bottom of LEG (D), securing SHELF (C) in between. Repeat for the other NON-LOCKING CASTER (L). L K (2) C (1) L (2) M M (1) K Tighten CASTERS (K, L) with the provided WRENCH (M).
PAGE 4
ASSEMBLY INSTRUCTIONS STEP 5 Unscrew DRAIN PLUG (J) assembly. Insert DRAIN PLUG (J) through the opening in TUB (A) from the inside. Make sure the rubber seal is on the inside of TUB (A). From the outside, slide the Washer on first, then the second Washer with Chain, and then screw on the Nut. Be sure not to overtighten. Once DRAIN PLUG (J) is in place, screw on the Cap. J (1) Outside the tub Inside the tub J STEP 6 Set LID (B) on top of TUB (A). Clean the inside of Cooler thoroughly before use.
PAGE 5
SERVICE PARTS LIST – TXK-0802 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description 1) PBR-17-002-3115 Cooler Lid 9) ZSV-99-011-3010 Non-Locking Caster 2) AMA-05-005-0150 Lid Knob 10) PBR-03-028-2913 Shelf 3) XSV-01-010-0530 Knob Screw 11) PBR-04-022-1625 Leg 4) XST-18-015-3115 Cooler Tub 12) XSV-01-010-0416 Small Screw 5) XST-02-004-0001 Bottle Opener 13) CGL-02-003-0001 Drain Plug 6) XST-02-005-0002 Cap Catche
