3.2 TOUCH PANEL INDICATOR

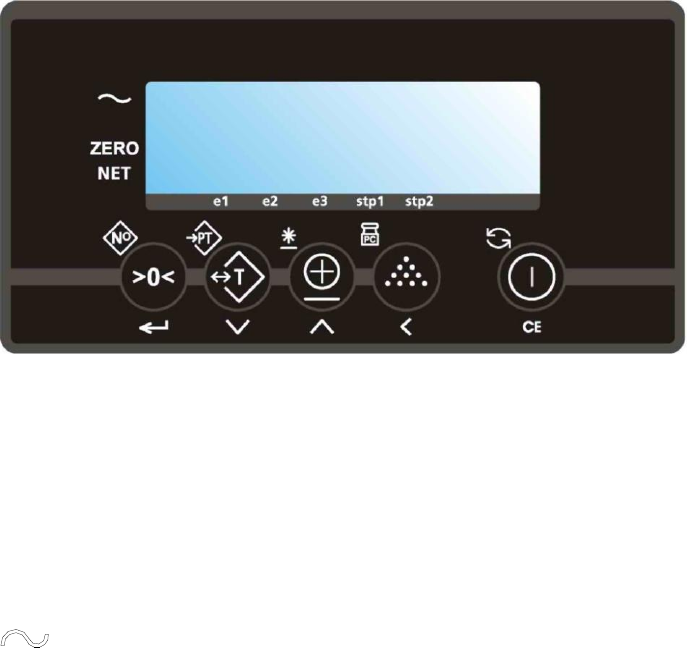

Indicator Front
There are 3 display-modes: lbs, kg or the number of pieces.
Also the battery sign is integrated in the display in order to show a low battery status.
THE DISPLAY
By means of eight pointer bars the display shows:
◄
the scale (including load) is stable
▬
the weight shown is negative
ZERO
◄
the weight shown is within the zero range
NET
◄
the display is showing the net weight
e1
▼
displayed weight shown is in range 1
e2
▼
displayed weight shown is in range 2
e3
▼
displayed weight shown is in range 3
stp1
▼
Set-point 1 is activated
stp2
▼
Set-point 2 is activated
