3. EXTERNAL APPEARANCE AND PART DESCRIPTIONS

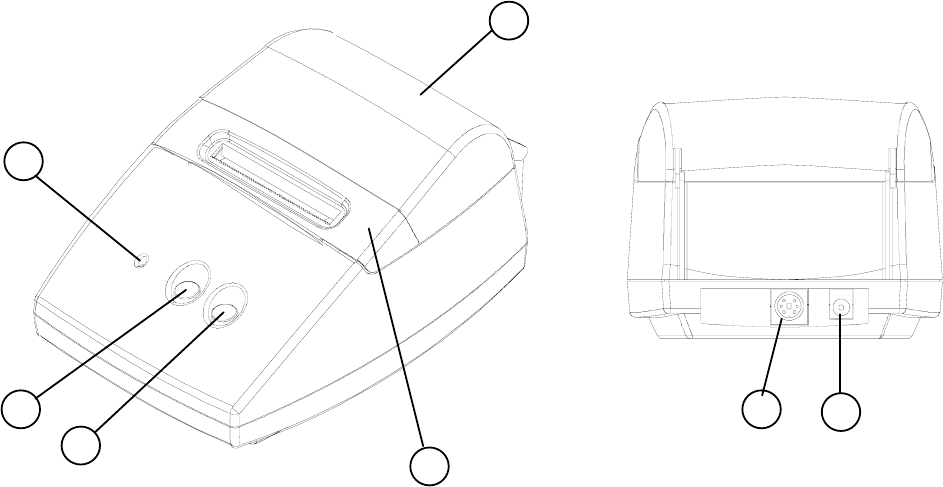

3.1 External Appearance
1
5
2
3
4
6
7
3.2 Part Descriptions
1. DC Power Jack: Insert one end of the enclosed AC adapter here.
2. Power/Status Lamp: Lit when power is turned ON and goes out when
turned OFF. Also used to indicate system status. See Section 3.3.
3. CLR Key: Use this key to clear a steady Red Status condition.
4. LF/FF Key: Paper is fed by one line (LF) when key is pressed and
released. Paper is continuously fed (FF) when key is pressed and held.
5. Interface Connector: Printer is connected to various hosts via cables.
Please ensure that both the printer and the host are turned off before
connecting.
6. Printer Cover: Opened to replace paper roll.
7. Print Head Cover: Removed to replace paper roll.
