4 Connectors
The TMCM-1110_V23 stepRocker has nine connectors altogehter. There are two screw connectors for
power and motor and two interface connectors (mini-USB and RS485). Furthermore, the stepRocker has
one connector for reference switches for all three motors, the driver input connector (TTL level) for motor
0, two controller output connectors (TTL level) for motors 1 and 2 and the GPIO connector, which can be
used e.g. for connecting an ABN-encoder.
NOTICE
Start with power supply OFF and do not connect or disconnect motor dur-
ing operation! Motor cable and motor inductivity might lead to voltage spikes
when the motor is (dis)connected while energized. These voltage spikes might
exceed voltage limits of the driver MOSFETs and might permanently damage
them. Therefore, always switch off / disconnect power supply or at least disable
driver stage before connecting / disconnecting motor.
Power
Motor
Reference
switches
Controller
Out 2
Controller
Out 1
GPIO Driver In 0
USB
RS485
(CAN
optional)
1
1
14
1
1
1
1
1
1

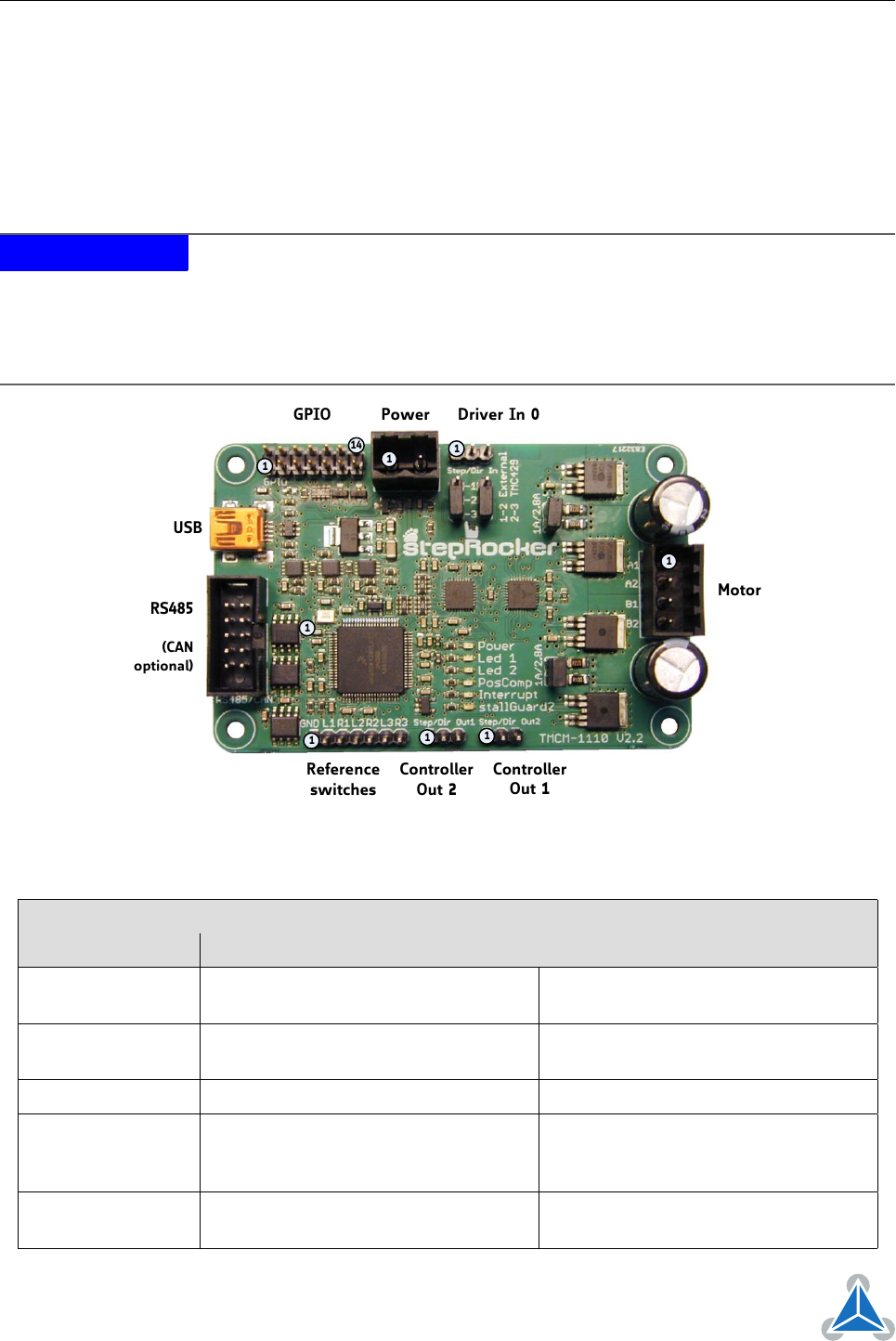

Figure 2: TMCM-1110 stepRocker Connectors
Connector Types and Mating Connectors
Connector Connector type on-board Mating connector type
Power RIA 220-02, 2 pin, 5.08mm pitch,
shrouded header
RIA 249-02, screw type terminal block,
pluggable, centerline 5.08mm pitch
Motor RIA 183-04, 4 pin, 3.5mm pitch,
schrouded header
RIA 169-04, screw type terminal block,
pluggable, centerline 3.5mm pitch
USB USB-mini female connector USB-mini male connector
RS485/CAN Low profile box header without lock-
ing bar, type 8380, 10 pin, DIN 41651,
2.54mm pitch
Low profile IDC socket connector, 10
pin, DIN 41651, 2.54mm pitch
GPIO Multi-pin-connector, 14 pin, 2.54mm
pitch
Female connector with 2.54mm pitch
