TMCM-1110 Hardware Manual • Hardware Version V2.30 | Document Revision V1.10 • 2017-SEP-06
5 / 26
3 Mechanical and Electrical Interfacing
3.1 Size of board
The board with the controller/driver electronics has an overall size of 85mm x 55mm x 15mm without
mating connectors. It offers four mounting holes for M3 screws (3.2mm diameter). All four mounting holes
are connected to the ground plane (signal and supply ground) of the module.
85
55
4
4
4
Ø 3.2
4 x M3
screws

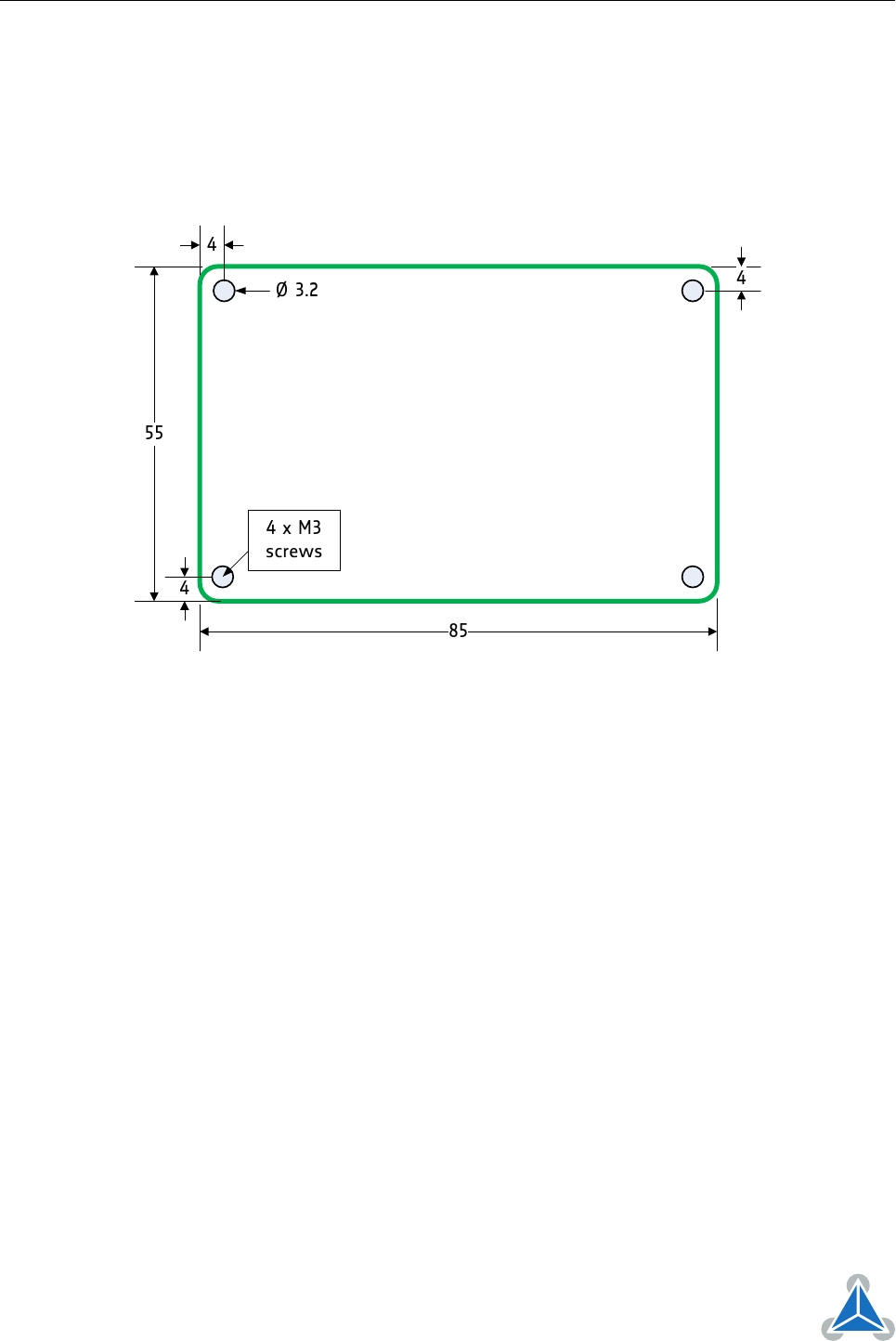

Figure 1: Board Dimensions and Positions of Mounting Holes (all Values in mm)
