TMCM-1076 Hardware Manual • Hardware Version V1.10 | Document Revision V1.00 • 2018-JUN-25

7 / 22

3 Mechanical and Electrical Interfacing

3.1 TMCM-1076 Dimensions and Weight

The dimensions of the TMCM-1076 are approximately 60mm x 60mm x 13mm. There are four mounting

holes for M3 screws for mounting the TMCM-1076. These mounting holes are located in the bottom / base

plate and accessible after removing the top cover (see 5, right ﬁgure, mounting holes marked red). Two of

them at opposite positions can be used for mounting the module to the backside of our NEMA23 stepper

motors (screw/thread length depends on motor size). The other two can be used for mounting the module

to the backside of our NEMA24 stepper motors (screw/thread length depends on motor size).

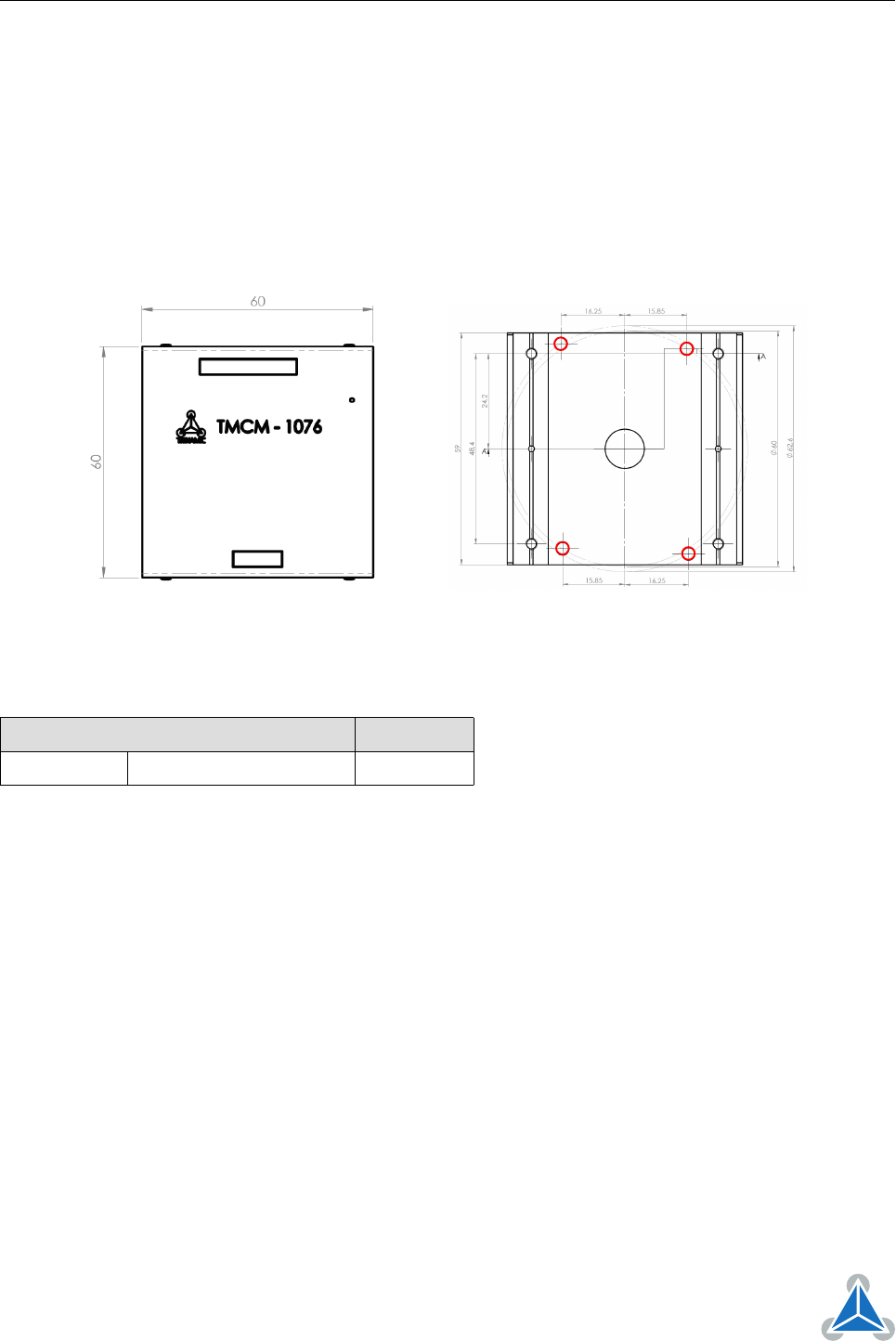

Figure 5:

TMCM-1076 top view mechanical dimensions (left) and position of mounting holes (marked red / right).

All dimensions in mm

Order Code Dimension in mm Weight in g

TMCM-1076 60mm x 60mm x 13mm ≈ 68

Table 3: TMCM-1076 dimensions and weight

3.2 Mounting Considerations

TMCM-1076 is designed to be mountable on the back of our NEMA23 and NEMA24 motors. Alternatively, it

can be mounted standalone.
