Datasheet

IC BREAKOUT BOARDS
Module with Motor
Features and additional Resources
• TMC2300 low voltage stepper motor driver
• Battery Supply via 2xAA cells via JST S2B-PH-
K-S connector (typically +3V)
• Onboard Stepper Motor Goot 25BYJ12-60
1.5V/1A
• Interface to Microchip PIC-IoT Board
• StealthChop2™silent motor operation
• Board size 1.0" x 2.5"
• 2x8 pin 0.1" header pin holes
• Link to additional information and IC data
sheet
• Basic software project based on MPLAB X IDE
can be provided.
Pin List
Left Signal Right Signal
+VBAT_FB Supply feedback to MCU ADC n.c. not used
RESETn not used DIAG diagnosis signal to MCU
STEP Step signal to TMC2300 UART_RX UART receive line from MCU
DIR Direction signal to TMC2300 UART_TX UART transmit line to MCU
STDBY Standby control to TMC2300 n.c. not used
EN Enable control to TMC2300 n.c not used
+3.3V VCCIO +5V not used
GND Ground GND Ground

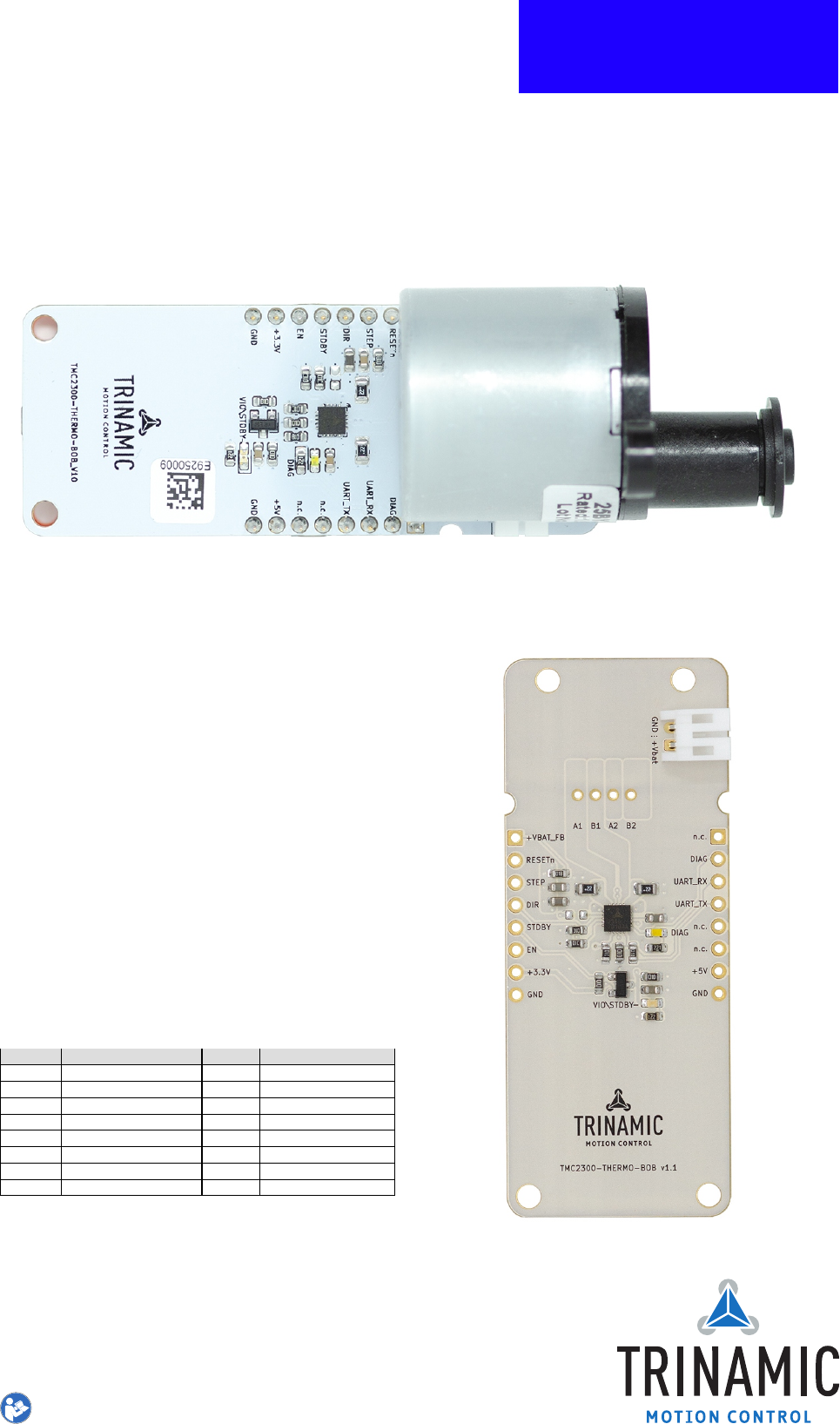

Board Top View without Motor
