TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15

4 / 6

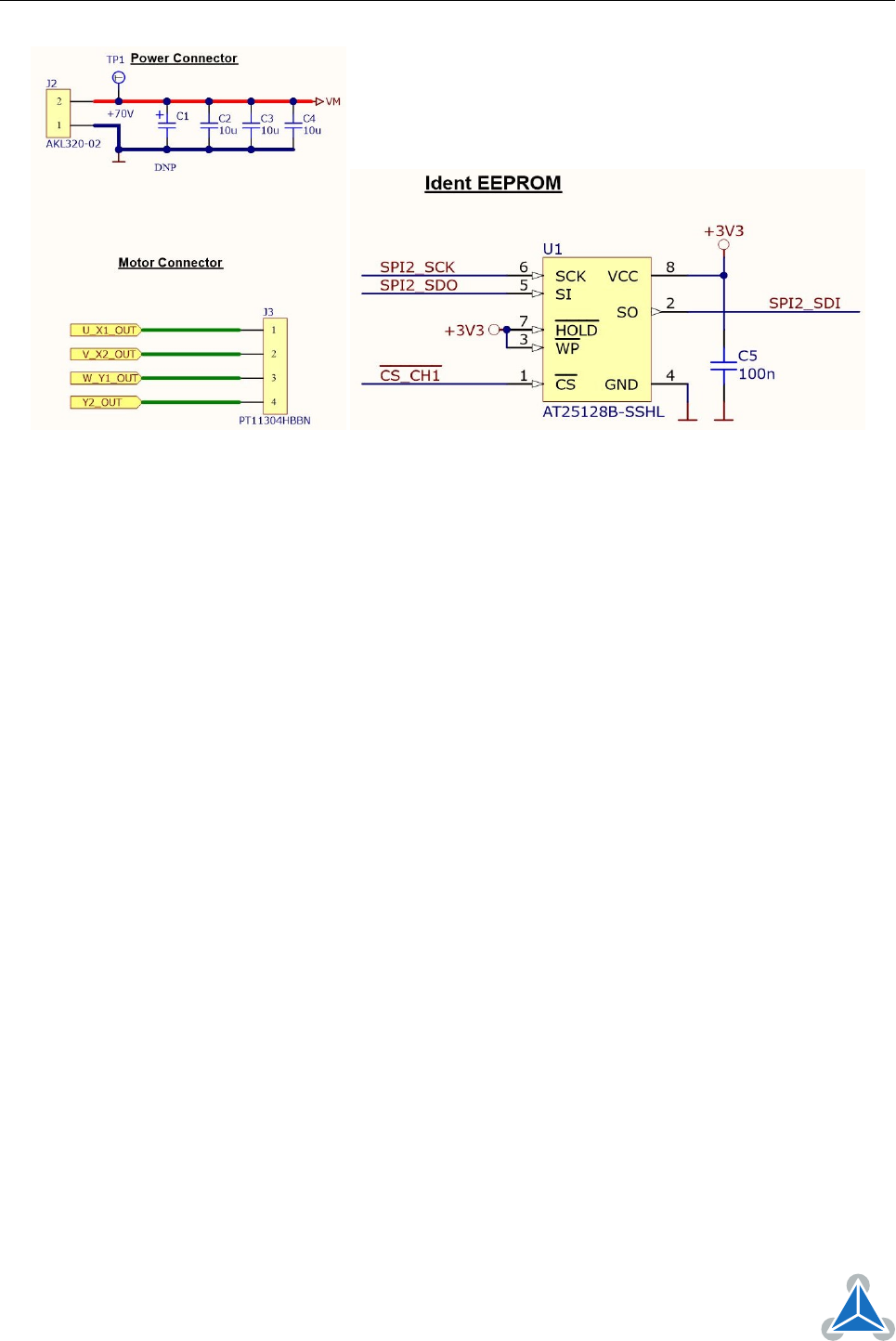

Figure 2: Motor connector, power connector and EEPROM

The evaluation board can be automatically recognized when Ident EEPROM is properly conﬁgured. This

part is only needed on an Evaluation board for user convenience.

3 Usage with own Motion Controller

The TMC-UPS-10A70V-A-EVAL can be used with third party motor controller. In that case 5V needs to be

supplied via the Motor Controller connector. SPI signals are not needed.
