TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15
3 / 6
1 Getting Started
The TMC-UPS-10A70V-A-EVALis a power stage module to be used in the TMC4671 Evaluation Kit. It is based
on the TMC-UPS-10A70V-EVAL V1.10.
Please assemble all components properly according to guidelines in the respective Motion Controller
Evaluation Board Manual.
2 Hardware Information
All design files for our evaluation boards are available for free. We offer the original ECAD files (Eagle,
Altium, or PADS), Gerber data, the BOM, and PDF copies.
The files can be downloaded from the evaluation boards’ website directly at
https://www.trinamic.com/
support/eval-kits/.
Note
If files are missing on the website or something is wrong please send us a note.
2.1 Connectors
The TMC-UPS-10A70V-A-EVALprovides a motor connector, a power supply connector and a Evaluation
system compliant connector to a motion controller Evaluation board. Please check silk screen for correct
motor connection.

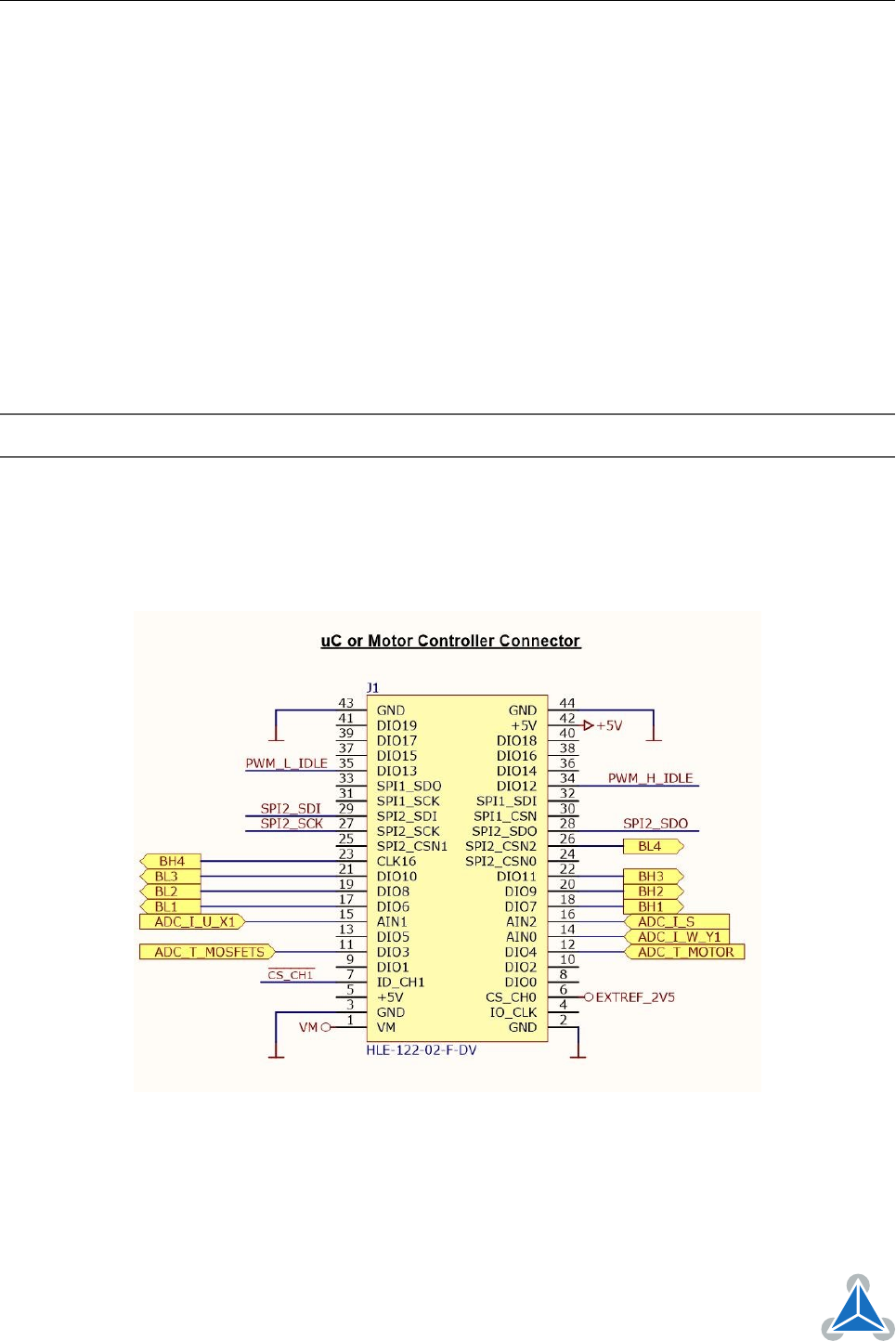

Figure 1: 44 pin Motor Controller Connector
