Evaluation Board for Stepper and BLDC

EVALUATION BOARD

TMC-UPS-10A70V-A-EVAL Evaluation Board

Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15

The TMC-UPS-10A70V-A-EVAL is a universal Power Stage for usage with the TMC4671-EVAL. It drives

up to 10A of current and is tolerant to supply voltages up to 70V. It uses half bridge gate drivers

and discrete MOSFETs as well as standard connectors for supply and motor connection. Current

measurement is implemented by inline shunt ampliﬁers.

Features

•

Power Stage for the TMC4671-EVAL

•

4 independent Half-Bridges with Gate

Driver and Phase Current up to 10A

RMS for driving a 2-phase stepper

motor, or a 3-phase BLDC or a sin-

gle phase DC motor.

•

Main Supply Voltage (VM) up to 70V

•

Supply for Gatedrivers and Shunt

Ampliﬁers (zero current level = 5V/2)

•

2 Phase Current shunt ampliﬁers

and one for bottom shunt with +/-

10A measurement range

Applications

• Laboratory Automation

• Manufacturing

• Semiconductor Handling

• Robotics

• Factory Automation

• Test & Measurement

• Life Science

• Biotechnology

• Liquid Handling

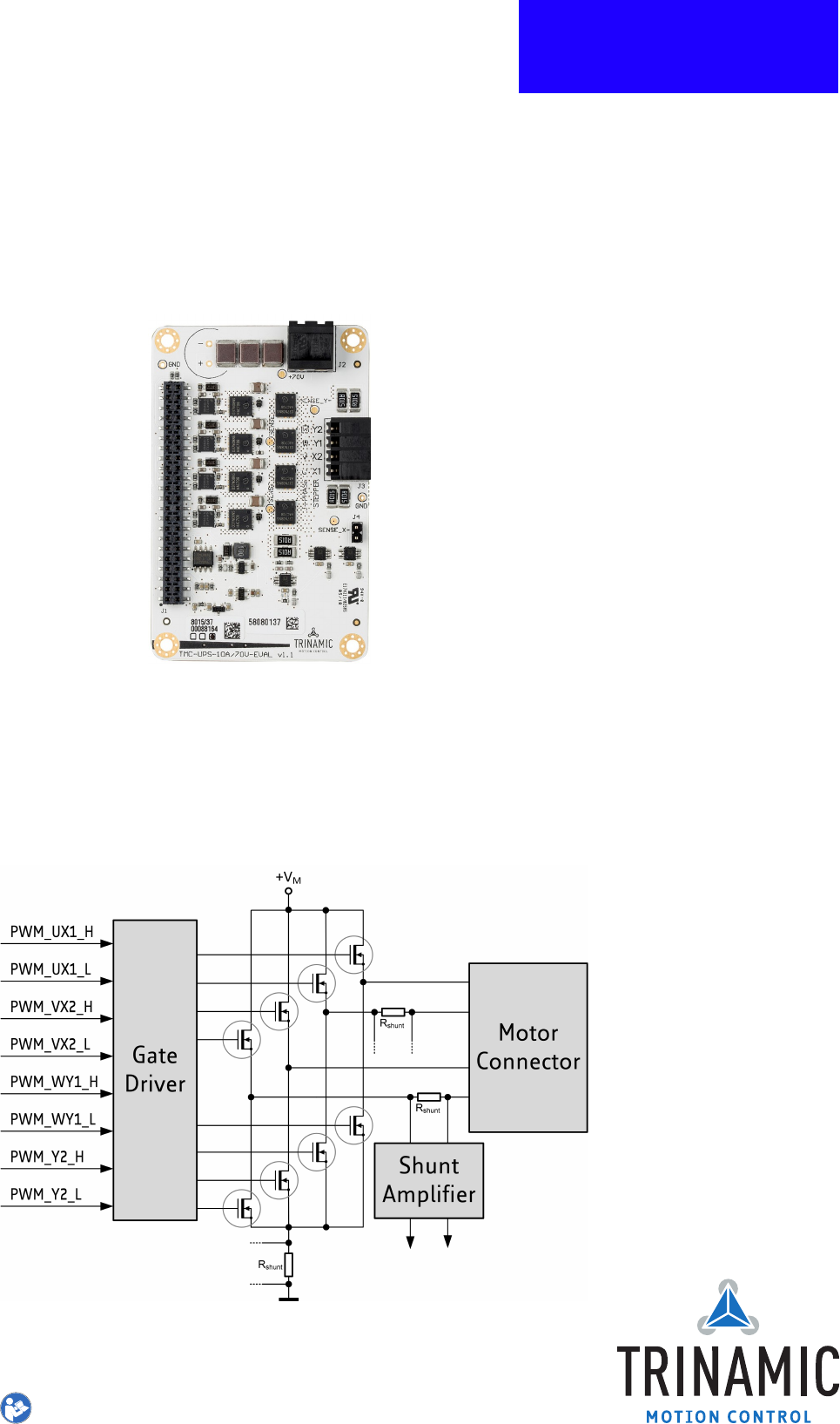

Simpliﬁed Block Diagram

Terms of delivery and rights to technical change reserved.

Download newest version at: www.trinamic.com

Read entire documentation.

Summary of content (6 pages)

PAGE 1
EVALUATION BOARD Evaluation Board for Stepper and BLDC TMC-UPS-10A70V-A-EVAL Evaluation Board Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 The TMC-UPS-10A70V-A-EVAL is a universal Power Stage for usage with the TMC4671-EVAL. It drives up to 10A of current and is tolerant to supply voltages up to 70V. It uses half bridge gate drivers and discrete MOSFETs as well as standard connectors for supply and motor connection. Current measurement is implemented by inline shunt ampliﬁers.
PAGE 2
TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 2/6 Contents 1 Getting Started 3 2 Hardware Information 2.1 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3 3 Usage with own Motion Controller 4 4 Supply Voltage for Shunt Ampliﬁers 5 5 Revision History 5.1 Document Revision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE 3
TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 1 3/6 Getting Started The TMC-UPS-10A70V-A-EVALis a power stage module to be used in the TMC4671 Evaluation Kit. It is based on the TMC-UPS-10A70V-EVAL V1.10. Please assemble all components properly according to guidelines in the respective Motion Controller Evaluation Board Manual. 2 Hardware Information All design ﬁles for our evaluation boards are available for free.
PAGE 4
TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 4/6 Figure 2: Motor connector, power connector and EEPROM The evaluation board can be automatically recognized when Ident EEPROM is properly conﬁgured. This part is only needed on an Evaluation board for user convenience. 3 Usage with own Motion Controller The TMC-UPS-10A70V-A-EVAL can be used with third party motor controller. In that case 5V needs to be supplied via the Motor Controller connector.
PAGE 5
TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 4 5/6 Supply Voltage for Shunt Ampliﬁers With resistors R33 and R34 the supply voltage for the shunt ampliﬁers can be changed. The default setting is R34 = 5V, which results in a zero current offset of 5.0V/2 = 2.5V as required by TMC4671-EVAL. When using the TMC4670-EVAL or TMC8670-EVAL, R33 should be placed (0R) and R34 should not be equipped to change the zero current offset to 3.3V/2 = 1.66V.
PAGE 6
TMC-UPS-10A70V-A-EVAL Evaluation Board • Hardware Version V1.00 | Document Revision V1.00 • 2019-APR-15 5 Revision History 5.1 Document Revision Version Date Author Description 1.00 2019-APR-15 SK Initial release. Table 1: Document Revision ©2019 TRINAMIC Motion Control GmbH & Co. KG, Hamburg, Germany Terms of delivery and rights to technical change reserved. Download newest version at www.trinamic.
