PD-1160 TMCL
™
Firmware Manual • Firmware Version V1.42 | Document Revision V1.06 • 2018-JAN-09
22 / 113

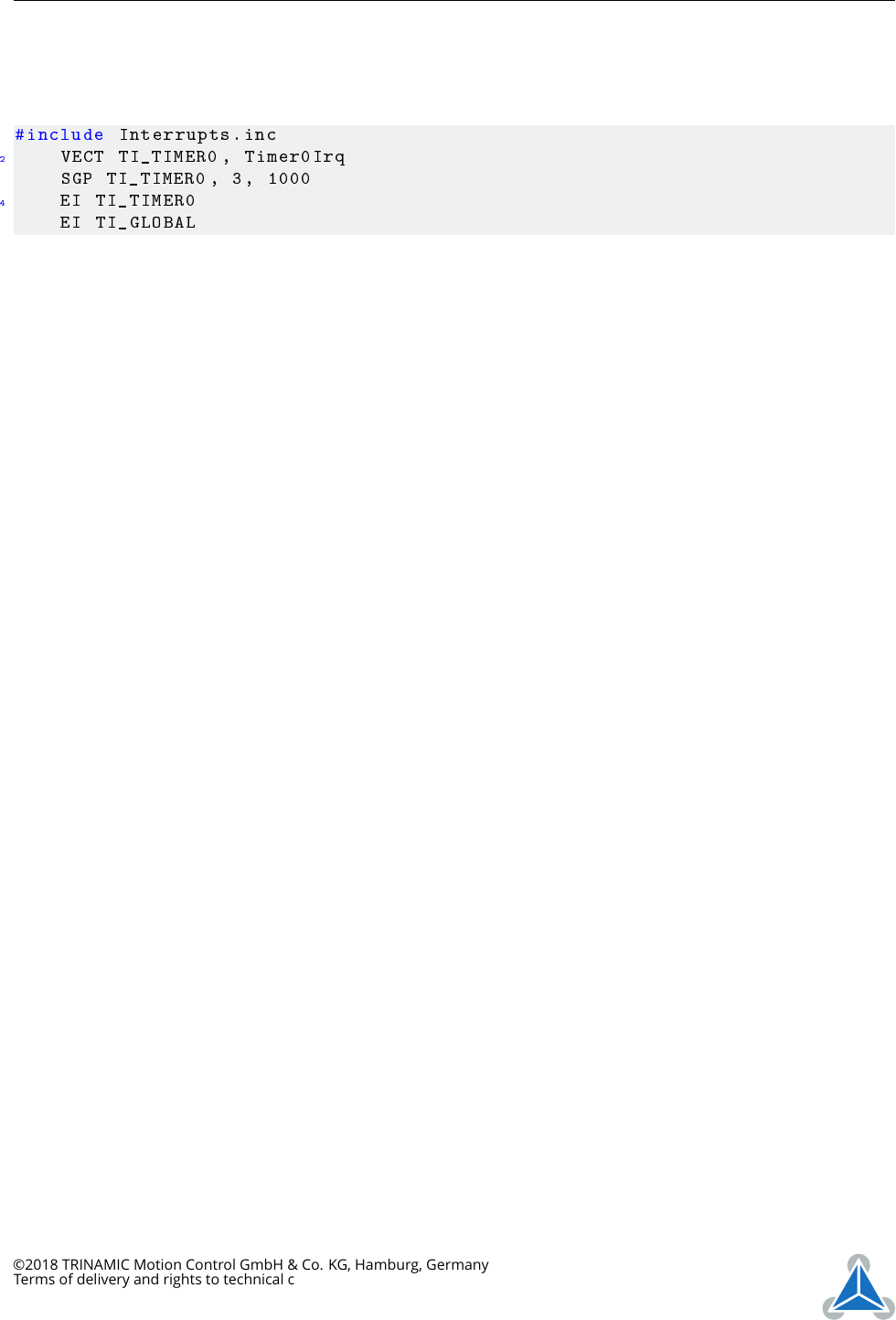

In the example above, the interrupt numbers are being used directly. To make the program better readable
use the provided include file Interrupts.inc. This file defines symbolic constants for all interrupt numbers
which can be used in all interrupt commands. The beginning of the program above then looks as follows:
#include Interrupts .inc
2
VECT TI_TIMER0 , Timer0Irq
SGP TI_TIMER0 , 3, 1000
4
EI TI_TIMER0
EI TI_GLOBAL
