Primary Host.
An IP address for the primary Radius server that will authenticate
users of any 802.1x/WPA WLANs.
Secret.
The shared secret that is configured in the primary Radius server and is
used to authenticate the access point to the Radius server.
Authentication Port.
A TCP/UDP port for primary Radius server authentication
services. The port number you supply must be the one on which the primary
Radius server is configured for authentication. Click the
Default AuthPort
button
to reset the value to the standard port number.
Accounting Port.
A TCP/UDP port for the primary Radius server accounting
services. The port number you supply must be the one on which the primary
Radius server is configured for accounting. Click the
Default AcctPort
button to
reset the value to the standard port number.
Secondary Host.
An IP address of the optional secondary Radius server for
authenticating users of any 802.1x/WPA WLANs.
Secret
,
Authentication Port
, and
Accounting Port
under
Secondary Host
are the
same as above but apply to the secondary Radius server.
802.11b/g Profile area
Use the 802.11b/g Profile area of the Access Point Configuration page to select a
radio policy and frequency channel for access point operations.

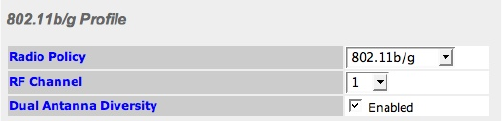

Figure 39. 802.11 b/g Profile area of Access Point Configuration page
Radio Policy.
Use this menu to specify a mixture of 802.11b/g clients or force all
access to 802.11b only. (Typically, you’ll want the 802.11b/g mixture.)
RF Channel.
Use this menu to choose a frequency channel for the access point to
operate on. Although 11 channels are available in the US, only three of these
channels overlap: 1, 6, and 11. Set the channel to one of the three
