User's Manual

SkyPilot SkyExtender DualBand Installation and Setup Guide
32
If the pane lists an access point WLAN SSID profile that you can use to
configure an open access Wi-Fi network, skip to the section “Creating an
access point profile” on page 38.
If you need to create an access point WLAN SSID profile, continue with step 2.
2
Add a new WLAN SSID profile.
Click the
Add
button below the profile list to display the Add Access Point
WLAN SSID Profile dialog box. (Asterisks identify required fields.)

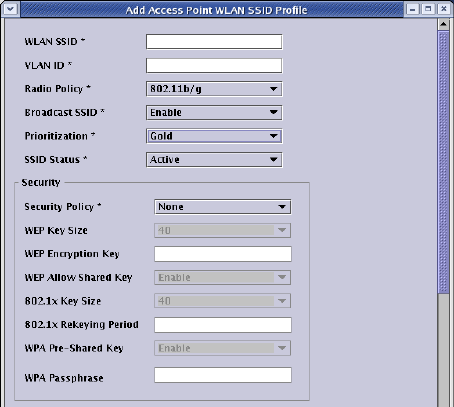

Figure 18. Add Access Point WLAN SSID Profile dialog box (top half)
Enter a unique name for the WLAN in the
WLAN SSID
field. (You cannot
create multiple SSIDs with the same name.)
To direct all traffic on the WLAN to a particular VLAN, enter an ID number in
the
VLAN ID
field. (If you aren’t using VLANs, enter 0 in this field.)
NOTE
If you’re setting up multiple WLAN SSIDs with different security
policies or multiple IP address spaces, the use of VLANs is highly
recommended.
