User's Manual

SkyPilot SkyExtender DualBand Installation and Setup Guide
30

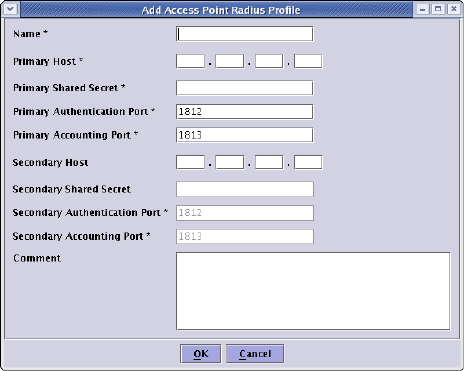

Figure 16. Add Access Point Radius Profile dialog box
Use the provided fields and pull-down menus to give the profile a name,
enter the IP address of the primary host, provide a shared secret, and identify
authentication and accounting ports.
In the
Primary Host
fields, enter the primary Radius server IP address.
Use the
Primary Shared Secret
field to supply the shared secret string
specified in the Radius server’s client configuration.
Modify the
Primary Authentication Port
and
Primary Accounting Port
assignments if they’re different from the standard defaults.
If you have access to a secondary Radius server, fill in the
Secondary Host
,
Secondary Shared Secret
,
Secondary Authentication Port
, and
Secondary
Accounting Port
fields for that server as well.
Click
OK
to save the profile.
The new profile now appears in the list of access point Radius profiles.
To continue configuring the WLAN for WPA, skip to the section “Creating a WLAN
SSID profile for WPA” on page 34.
