SkyPilot SkyExtender DualBand Installation and Setup Guide 23

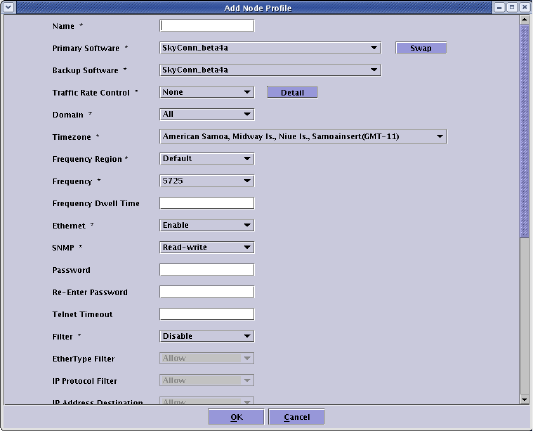

Figure 9. Add Node Profile dialog box
Use the provided fields and pull-down menus to specify general operating
parameters for the profile, including a profile name, software images, domain,
Ethernet status, and operating frequency.
Click
OK
to save the settings.
The new node profile now appears in the Node Profile list.
Creating a node
After creating the node profile, you can specify the SkyExtender DualBand as a
new node on the wireless mesh network.
When you create a node and identify it as a SkyExtender DualBand, access point
options become available in the EMS client taskbar.
1
Open the Node Maintenance pane.
In the taskbar, double-click
SkyProvision
>
Node Maintenance
.
The Node Maintenance pane appears, listing existing nodes by MAC address
and node type. Figure 10 shows an example.
