User's Manual

SkyPilot SkyExtender DualBand Installation and Setup Guide
12
1
Mount the SkyExtender DualBand.
Follow the instructions provided in the SkyPilot SkyGateway/SkyExtender
Installation Guide.
Make sure that you allow enough clearance for the 2.4 GHz antennas you’ll
attach to the bottom of the SkyExtender.
2
Connect the 2.4 GHz antennas.
The access point requires attachment of the two 2.4 GHz antennas included
with the device. Screw the antennas onto the standard N connectors on the
underside of the SkyExtender DualBand.

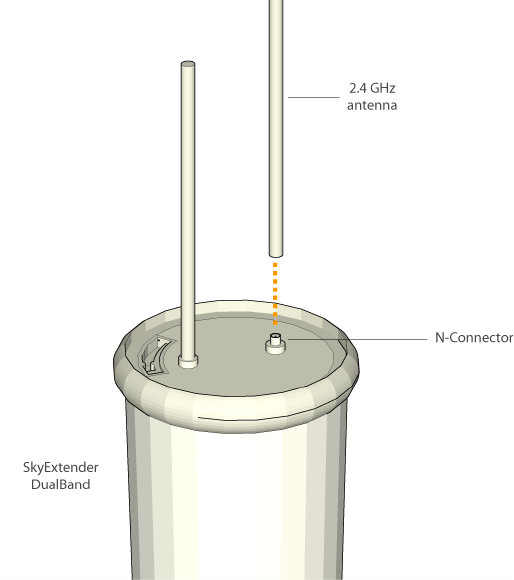

Figure 1. Attaching the antennas
