User manual

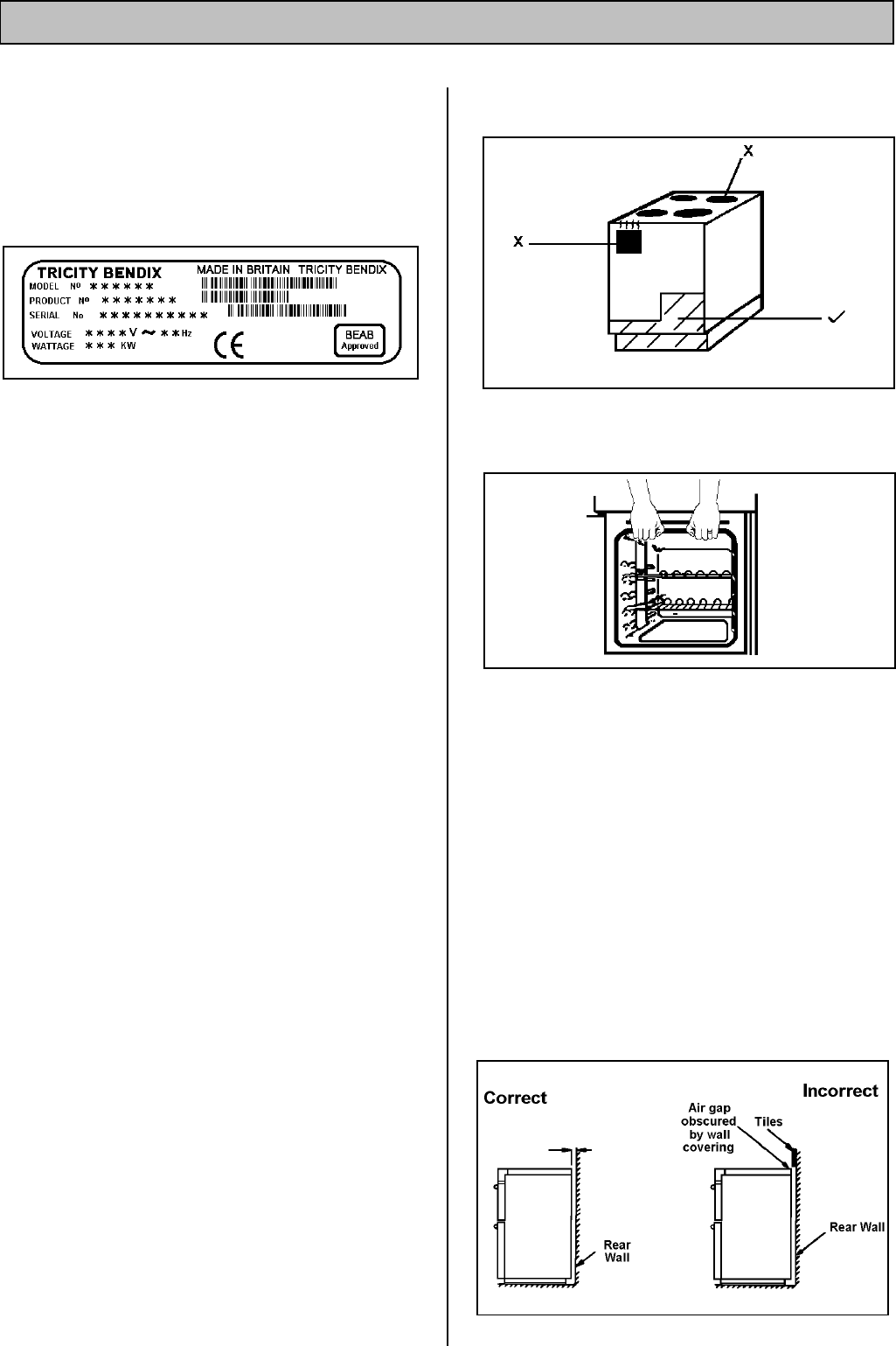

RATING PLATE
Record the model, product and serial numbers on the
back cover from the rating plate. This is situated on
the lower front frame of the appliance and can be
seen upon opening the top oven door.
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the
appliance as this may invalidate the guarantee.
INSTALLATION
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
Once the packaging has been removed the
appliance should only be moved by hand. DO NOT
use a sack barrow or any other aid to lift the
appliance as damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
The electrical connection should be made using a
double pole isolating switch (appliance socket) with
at least 3mm contact separation. The cable must
have conductors of sufficiently high cross-sectional
area to prevent overheating and deterioration.
The recommended cross-section area is six square
millimetres (6.00mm²).
The cable should be routed away from potentially hot
areas marked by X in the diagram below.
To move the appliance, open the fan oven door, and
lift the appliance by holding inside the top of the
compartment.
This is a type Y appliance which means it is
free-standing and can be fitted with cabinets on one
or both sides. It may also be fitted in a corner setting.
Ensure that the appliance is standing level.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
A nominal air gap of 2mm all around the appliance is
required to enable the appliance to be moved into
position.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
REAR VIEW
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE
EARTHED
Air gap
8
