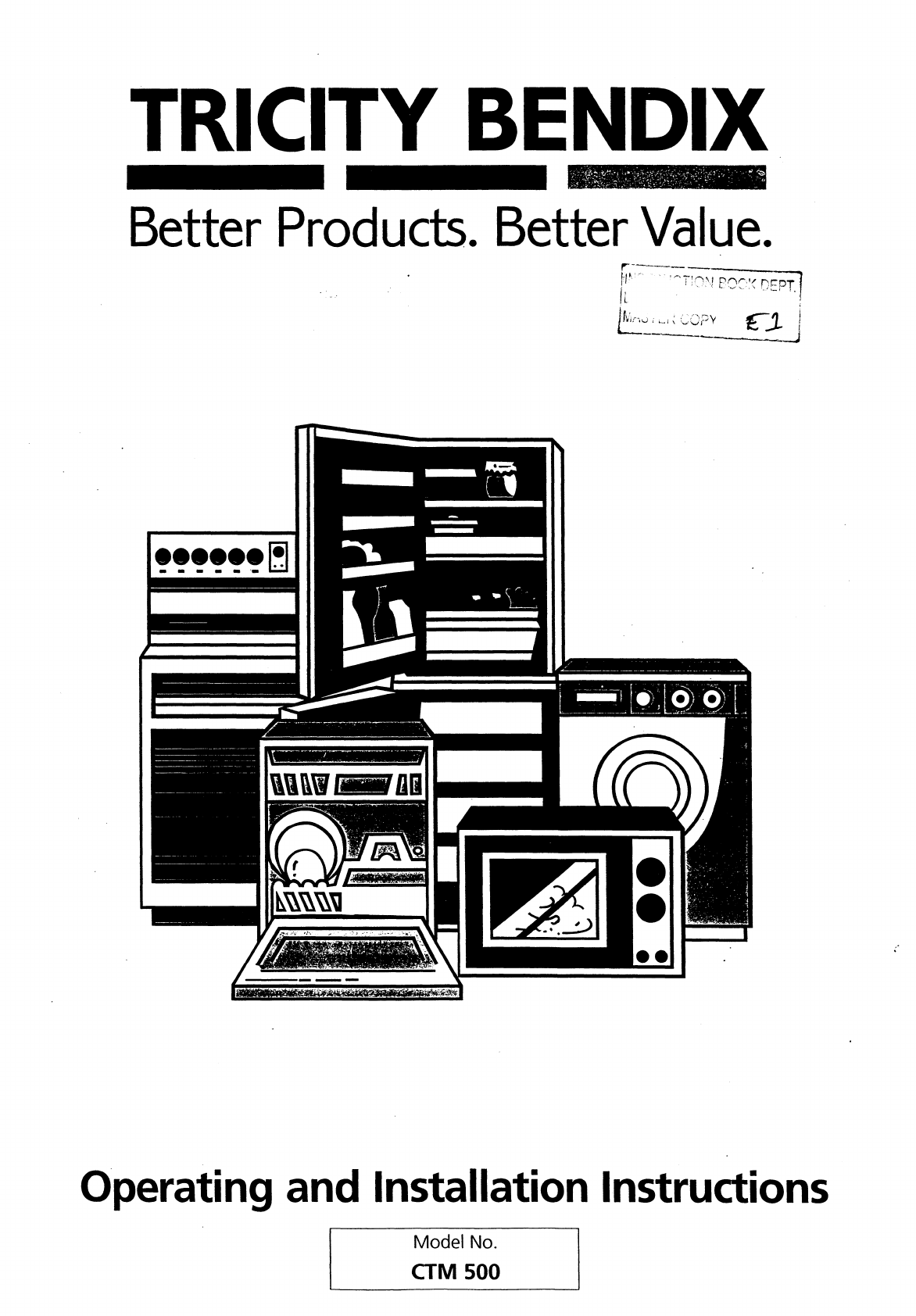

TRINITY BENDIX Better Products Bert slue i = BE Operating and Installation Instructions Model No.
CONTENTS Warnings . Installation Electrical Connections Door Reversal Use Control Manet Use Of Controls . Drying Times Drying cotton Drying 2 kg (4.5 Ib} of synthetics Hints On Drying . . Maintenance. External Cleaning Cleaning The Door Noninterchangeable Servicing. Guarantee Conditions Vicegerents. Page 3 Page 45 Page 8 Page 7 Page 8 Page 8 Page 8 Page g8 Page 10 Page 10 Page " Page 12 . . Page 12 . . Page 12 Page 12 . . Page 12 ] Page Page 1417 TECHNICAL SPECIFICATIONS DIMENSIONS: Height: 85 cm (33.
WARNINGS 1T 1S MOST IMPORTANT THAT THIS INSTRUCTION BOOK SHOULD BE RETAINED WITH THE APPLIANCE FOR FUTURE REFERENCE. SHOULD THE APPLIANCE BE SOLD OR TRANSFERRED TO ANOTHER OWNER, OR SHOULD YOU MOVE HOUSE AND LEAVE THE APPLIANCE, ALWAYS ENSURE THAT THE BOOK IS LEFT WITH THE APPLIANCE IN ORDER THAT THE NEW OWNER CAN GET TO KNOW THE FUNCTIONING OF THE APPLIANCE AND THE RELEVANT WARNINGS. THESE WARNINGS ARE PROVIDED IN THE INTEREST OF SAFETY.
INSTALLATION Positioning The appliance may be placed in any room, provided the following precautions are taken. The appliance expels hot, very moist air. The rest of the house must be able to easily absorb this moisture. Normally, absorption is only possible in houses where there is very little humidity. Otherwise, the room must have ventilation towards the outside; generally, an open door or window is enough. The capacity of the venting circuit must be at least 150 m¥hour.
if you use the front or side vent outlet, the cover you have removed should be placed at the back. Note The cover on the front vent outset will only fit the rear vent outlet. The side vent cutlet cover will ONLY fit the rear vent outlet, it wife NOT fit the front vent outlet. The length of the vent hose must not be more than 4 m and it must not contain more than two bends when it is placed in position for operation.
Electrical Connections WARNING: THIS APPLIANCE MUST BE EARTHED, The manufacturer declines any Ability should this safety measure not be observed. I the plug that is fitted to your appliance is not suitable for your socket outlet, it must be cut off, and the appropriate plug fitted. Remove the fuse from the cut off plug. The cut off plug should then be disposed of 10 prevent the hazard of electric shocks in case it should be plugged into a 13 amp socket in another part of your home.
Door reversal If required, the door can be reversed. This operation should be carried out by a qualified electrician or competent person. Operate as follows: Remove the door by unscrewing the two screws (1 Fig. A). Remove the safety pin (2) and the block (3) by bending the two fastening tags Refit the safety pin {2) and block (8} on the opposite sides, making sure they are accurately engaged. ~ Unscrew the plastic plate (4 Fig. A) and refit it on the apposite side (Fig. B).
USE Control Panel TRINITY BENDIX i p—— Dual Plus TUMBLE DRYER TWIN TEMPERATURE Programmer guide 2 DRYING TIME SELECTOR This will help you to select the correct time for drying. The selector dial is marked with times In minutes corresponding with those on the chart (page 9). To set the machine 1o the selected time, tum the dial clockwise until the time you want coincides exactly with the pointer.
DRYING TIMES Cotton and Linen Selector dial: up to 120 minutes (FULL HEAT Grey section) Degree of drying required Degree of spin given Quantity Selector dial setting 111b (5 kg} 95-100 mind 800 rpm 5.5 (2.5 kg) 65-65 mind Dry (Store dry) 1110 (5 kg) 80-90 mind 1000-1200 rpm 55 (25kg) 45-55 mind 1116 (B kg) 76-80 mind 800 pm 551 (2.5 kg) 45-55 mind Damp.dry. {kronor) 60-70 mind 1000-1200 rpm 5.
DRYING COTTON You have for example just machine-washed and spun at 1200 rpm laundry. They are cotton fabrics of medium weight which you want to iron as soon as they are dried. 1. Load the laundry Open the door by pulling it outward. Load the items one at & time, shaking them out loosely and close the door. Please check the laundry does not get caught between the door and filter. 2.
HINTS ON DRYING = Do not overload the appliance. Here is a list of the average of the more common laundry items according to an approximate basis. Sheet 70001000 g Pillowcase 100th 200¢g Tablecloth 40010 500g Table napkin 80w 100 g Kitchen toque! 70t 1209 Linen hand towel 100th 180¢g Hand toque! 15010 2509 Bath towel 700 to 1000 g Bathrobe 1000 to 1500 g Shirt 2000 300g Apron 1500 200¢g However, the best and most economical load is the maximum indicated for the different types of fabric.
MAINTENANCE Important You must disconnect the appliance from the electricity supply, before you can carny out any cleaning or maintenance work. External Cleaning Use only soap and water and then dry thoroughly. From time to time, apply a tilde wax furniture cream with a soft cloth. Important: do not use mentholated spirit, diluent or similar products. Cleaning The Door Clean periodically the interior part of the door to remove any fluff, Accurate cleaning ensures correct drying.
TRINITY BENDIX GUARANTEE CONDITIONS We, Trinity Bendix, undertake that if within 12 months of the date of the purchase this Trinity Bendix appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF ANY CHARGE for labor, materials or carriage on condition that: = The appliance has been installed correctly and used only on the electricity supply stated on the rating plate. .
12599.8560 TRINITY BENDIX Better Products. Better Value. Trinity Bendix, 99 Oakley Road, Futon, Beds LU4 9QQ A DIVISION OF EMACS LIMITED. Model No. REGISTERED IN ENGLAND NO. 176547 Part. No. CTM 500 vs 1015 12709 12599.
