4. CONNECTION TYPES

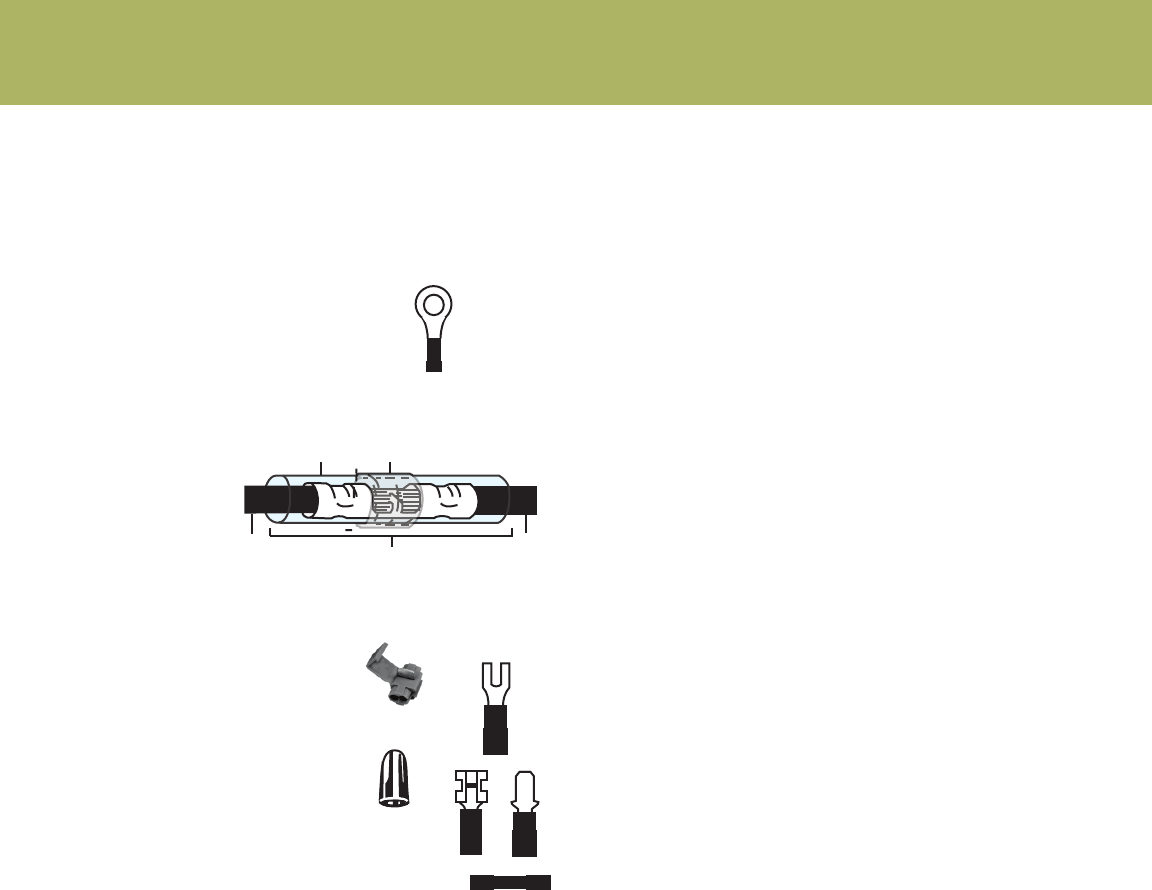

Acceptable Connection Types
a) Ring Terminals
b) Butt Splices with Self Contained Solder
and Shrink Tubing
c) Soldered Connections with Shrink Tubing
Unacceptable Connection Types
a) T-Taps
b) Spade Terminals
c) Marrettes
d) Blade Connectors
e) Standard Butt Splices
1
2
3
4
3
1. Solder Sleeve
2. Crimp Splice (shown crimped)
3. Wire
4. Shrink Tubing
