B) FUSE PANEL
An unused ignition activated position in the fuse panel is another option. This instal-
lation requires an Add-A-Circuit fuse holder as pictured below. It is not acceptable to
use a “fuse sleeve”
CONNECTION POINTS

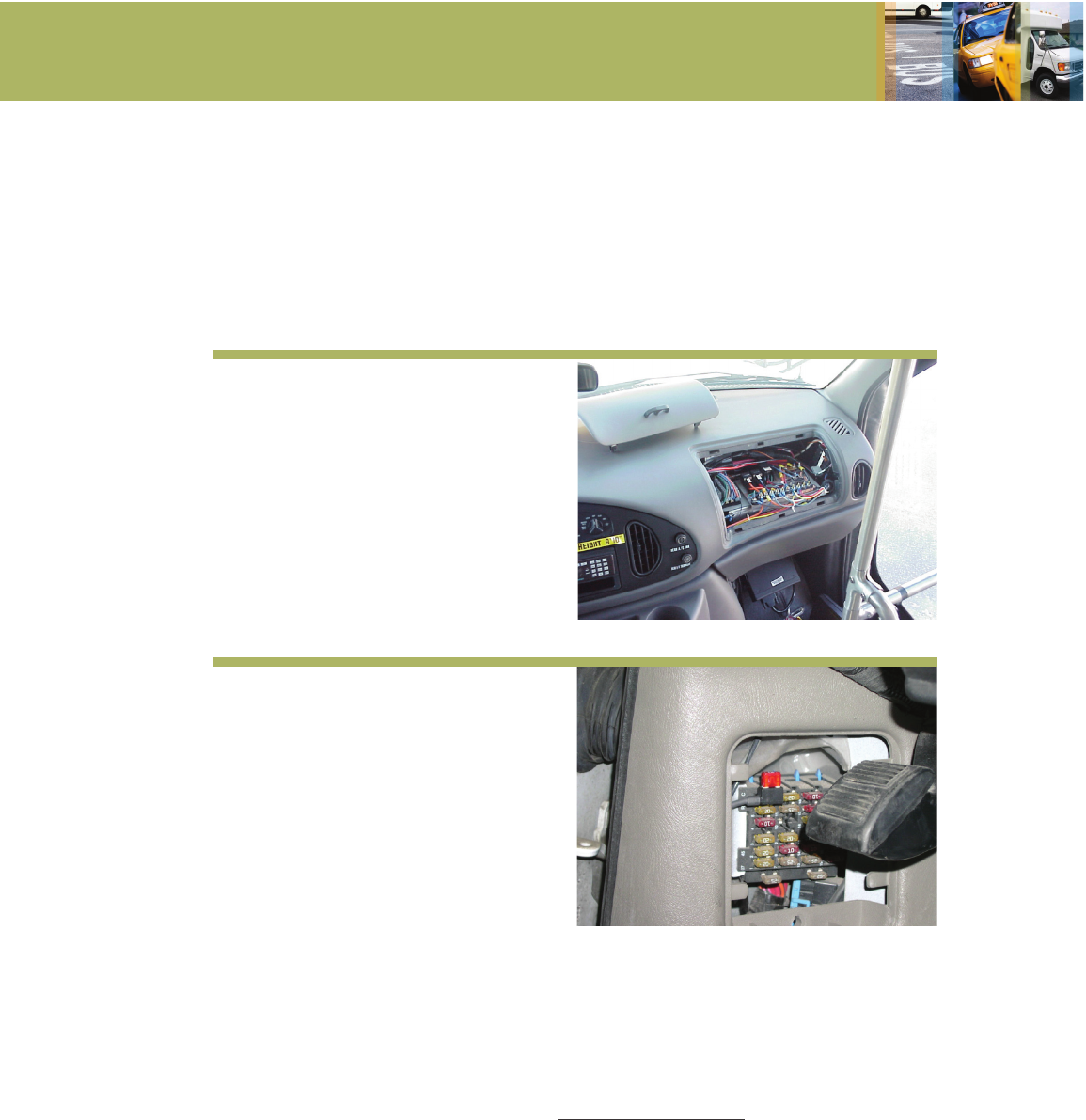

Example of an Auxiliary Electrical
Panel on a Ford Van
C) VSS (VEHICLE SPEED SENSOR FOR ODOMETER PULSES) OPTIONAL
Most installations will utilize the Ranger GPS receiver for mileage tracking, however
in some cases a wired odometer connection may be required. Many vehicles have a
VSS point which provides a pulse train from the transmission. Vehicles that do not
have a VSS point with adequate signal characteristics will require the installation of a
transducer. It is the responsibility of the installer and customer to locate a VSS point
or determine the appropriate location for a transducer. Your Trapeze representative
may be able to assist in locating suitable VSS point. He/She can also provide
information on the type of signal that is required for accurate odometer tracking.
Add-A-Circuit Installation
