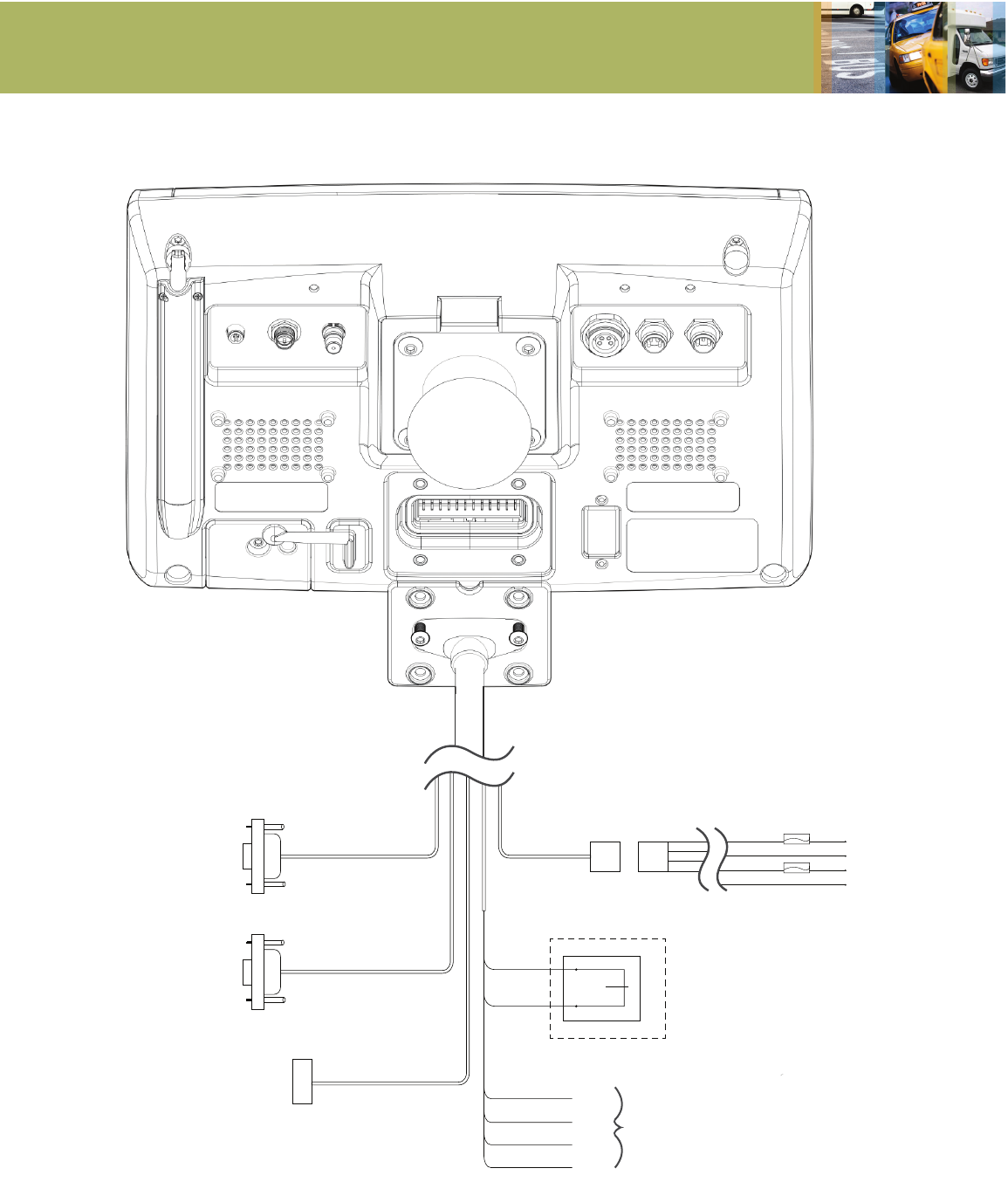

WIRING Ranger Back View
DB9
DB9
1x3
Molex
2x2
Molex
Comm 1
RS 232
Serial Port
Minimum Required Connections Cable P/N:
4-CAS-PIGTMMLX20-00
Ranger Power Pigtail Cable P/N:
4-CAS-RNG4MUL310-00
(Ships attached to Ranger)
Comm 2
RS 232
Serial Port
J-1708
Contact Trapeze
Vehicle Specialist for
application details
Red 3A
Black
Green 2A
White
Blue GPI01
Violet GPI02
Orange GPI03
Yellow GPI04
Red
Green
Vin, 12/24/ v
Ground
Ignition Sense
Odometer
(typically not used)
Optional Emergency
Switch
Normally closed SPDT
