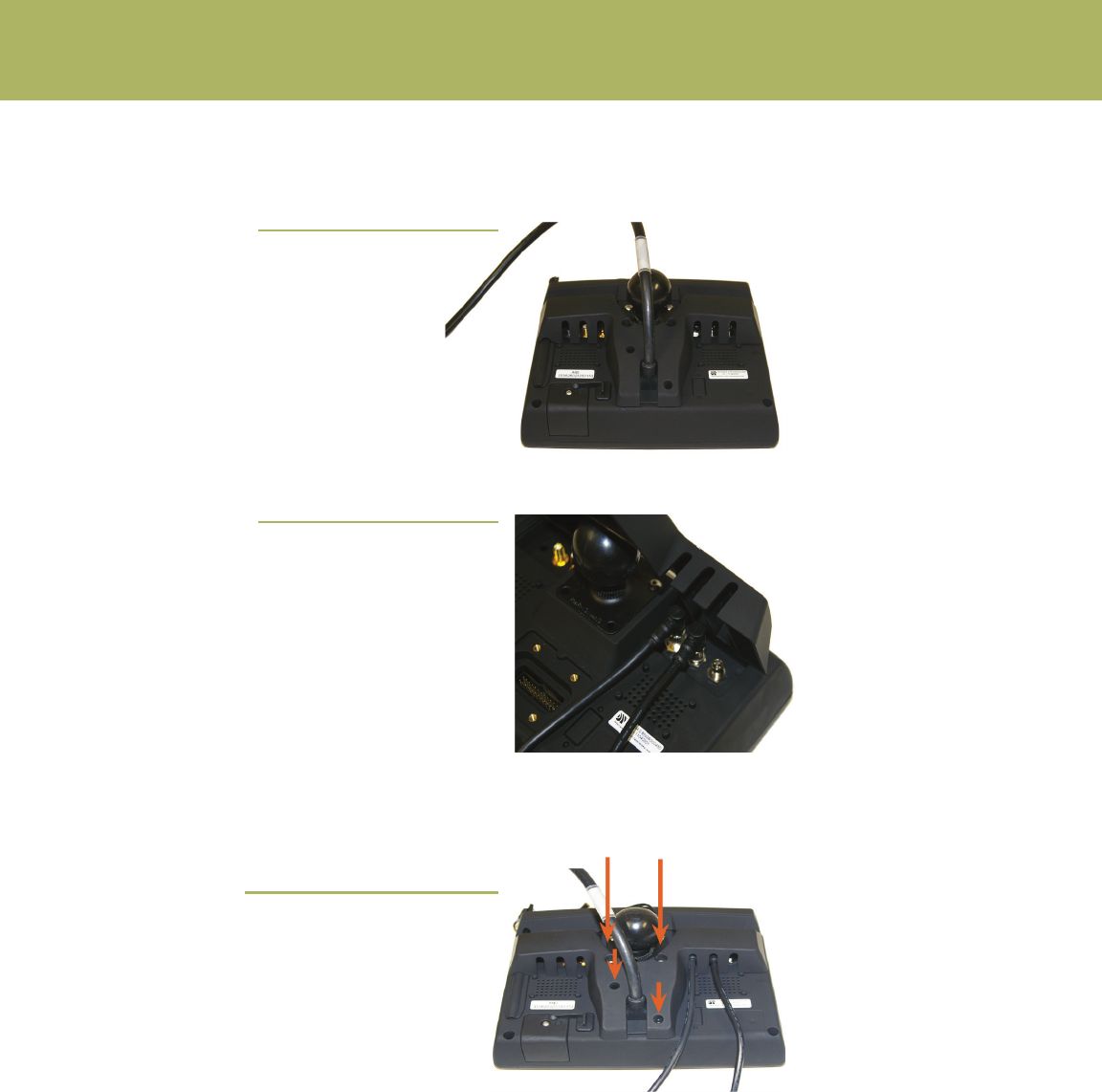

INSTALLING THE RANGER COVER PLATE
STEP 2A
Align the back cover
plate with the Ranger
as shown.
STEP 2B
If there are external cables
connected to the Ranger,
ensure to thread the cables
through the holes in the cover.
The cables must be threaded
in such a way that they are
not pinched by the cover when
fastened to the Ranger.
If an optional WiFi antenna is
provided, torque the R-SMA
connector to 140 oz-inches
(100 N-cm).
STEP 3
Secure the cover to the Ranger
with the screws provided. This
will require 6mm and 2mm hex
head screws (2 of each).
Torque mounting ball and RF
cable cover screws to 80 - 90
oz-inches (55 - 65 N-cm).
