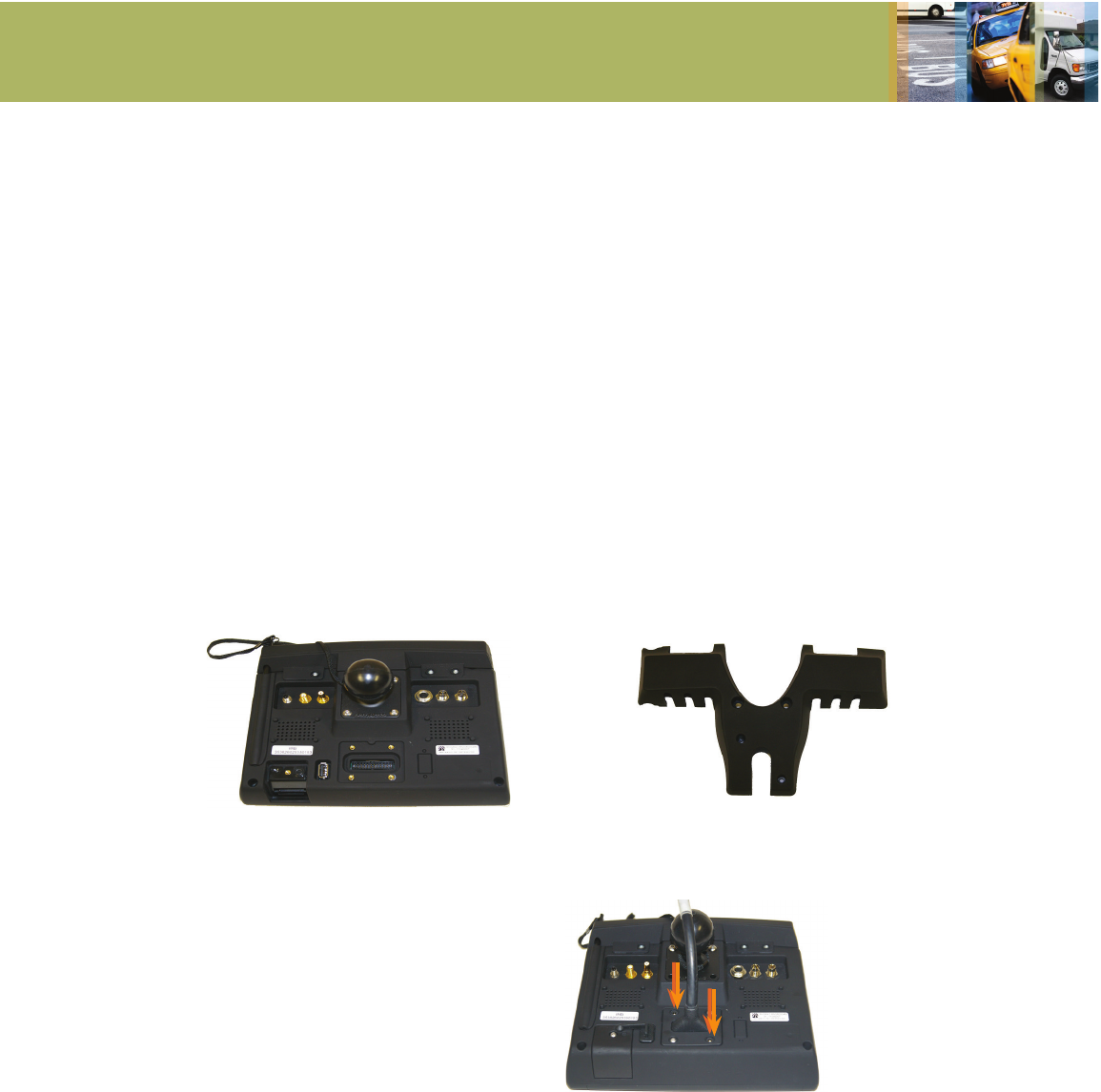

INSTALLING THE RANGER COVER PLATE
Ranger Back View
STEP 1
Connect the Ranger power cable
to the power input as shown.
Use 2mm screws and fasten cover.
This requires a 2mm Hex bit.
Torque main cable cover screws to
80 - 90 oz-inches (55 - 65 N-cm).
Ranger Back Cover Plate
SUPPLIES REQUIRED TO INSTALL COVER
In order to install the Ranger Cover, the following
items will be used. Most items are included in your
shipment of Ranger equipment:
- Ranger Cover Plate
- 6mm hex head screw (Quantity 2)
- 2mm hex head screw (Quantity 2)
- Hex bit, for 2mm hex head screws
- 5/16” wrench (torque wrench preferred) **
**Not included
