8.2 Part Numbers

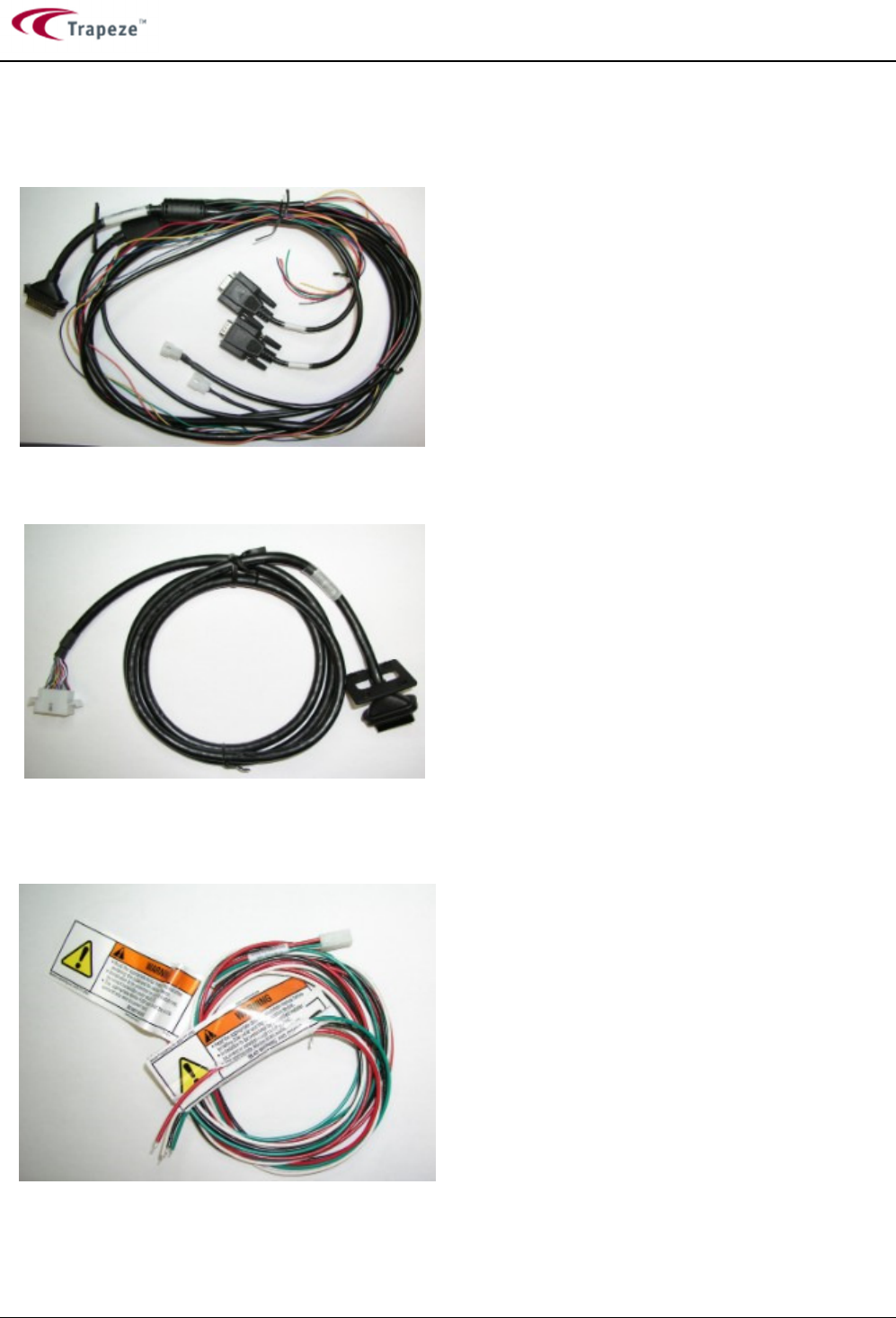

The part numbers for the Main Cables that are typically included with Ranger V4.4 are:
• P/N: 4–CAS–RNG4MUL310–00 (Octopus cable)
• P/N: 4–CAS–CGRDMMLX18–31 (24pin Molex)
This cable is typically specified when ordering a Ranger V4.4 to replace an existing Ranger V1 or V2 unit.
• P/N: 4–CAS–PIGTMMLX20–00
A power pigtail cable is used with the octopus cable, and provides power, ground, ignition, and odometer
inputs to the Ranger unit.
8.3 Adaptor Cables
Earlier versions of Ranger V4 (i.e. V4.2) used M8 connectors for the USB, Ethernet, and J1939 on the back of the
Ranger unit. In the event that a Ranger V4.4 is being used in place of an earlier version of Ranger V4, an adaptor
