Ranger v4.4 Installation Guide
Sep
2017
TRADE SECRET. Trapeze Proprietary and Confidential.Copyright © 2017 Trapeze Software ULC, its subsidiaries and affiliates. All rights reserved.
15
of 42
2.

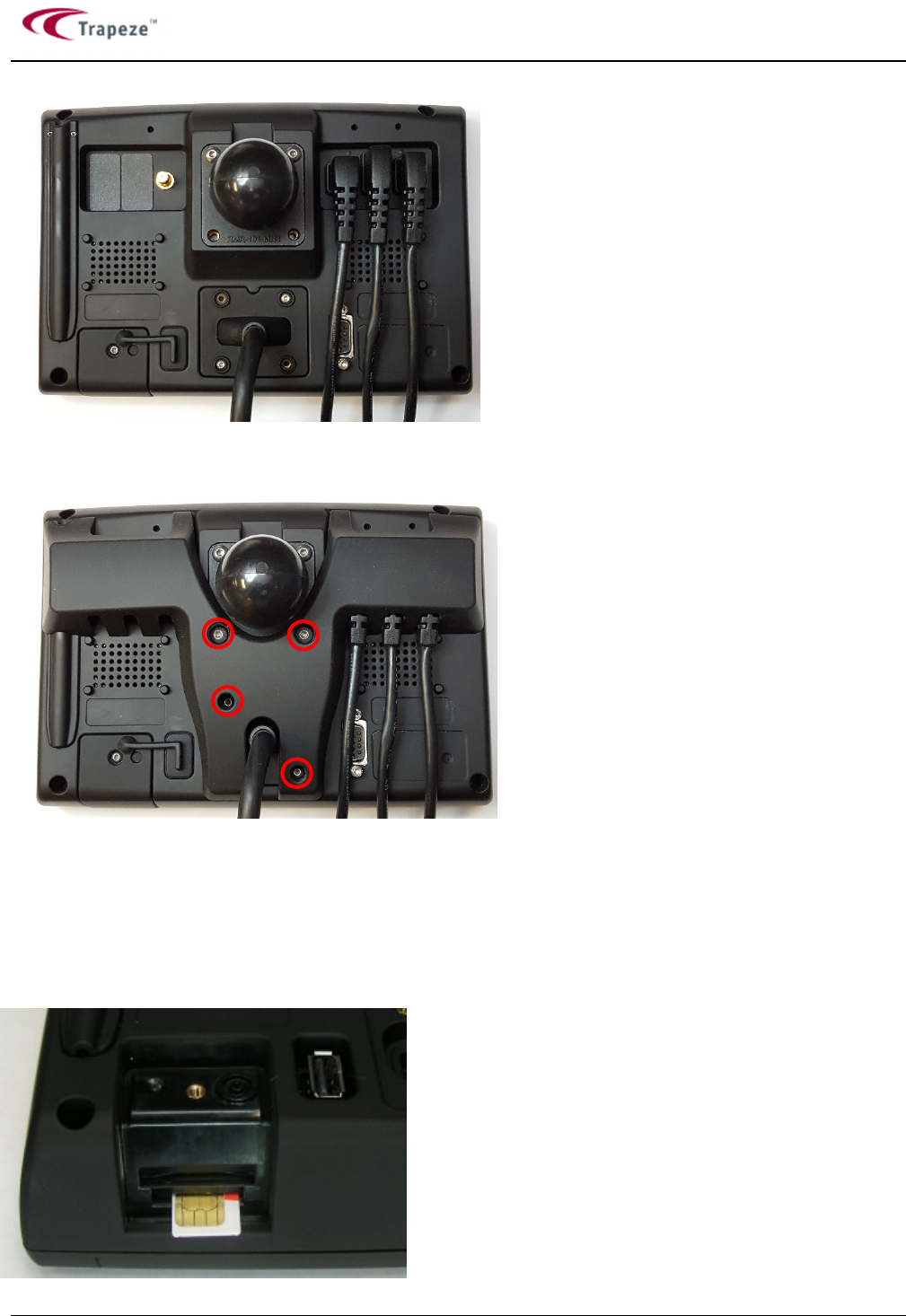

If there are external cables connected to the Ranger unit, attach these cables to the unit.
3. Secure the Cable Cover to the Ranger unit with the screws provided. This requires two M3 and two M4 hex
button head screws. Apply torque to the mounting ball and RF cable cover screws to 80 - 90 oz-inches (55 - 65
N-cm).
7.3 SD/SIM Cover
The Ranger will be shipped with the SD/SIM Cover installed. It can be removed temporarily to install a SIM card
and Secure Digital memory card.
The SIM and SD card should click into place when installed correctly. To remove the SIM or SD card, depress the
card and release and the card can be withdrawn.
