Datasheet

For MP-3XX
For MP-422
For MP-522E
For MP-620
For MP-632

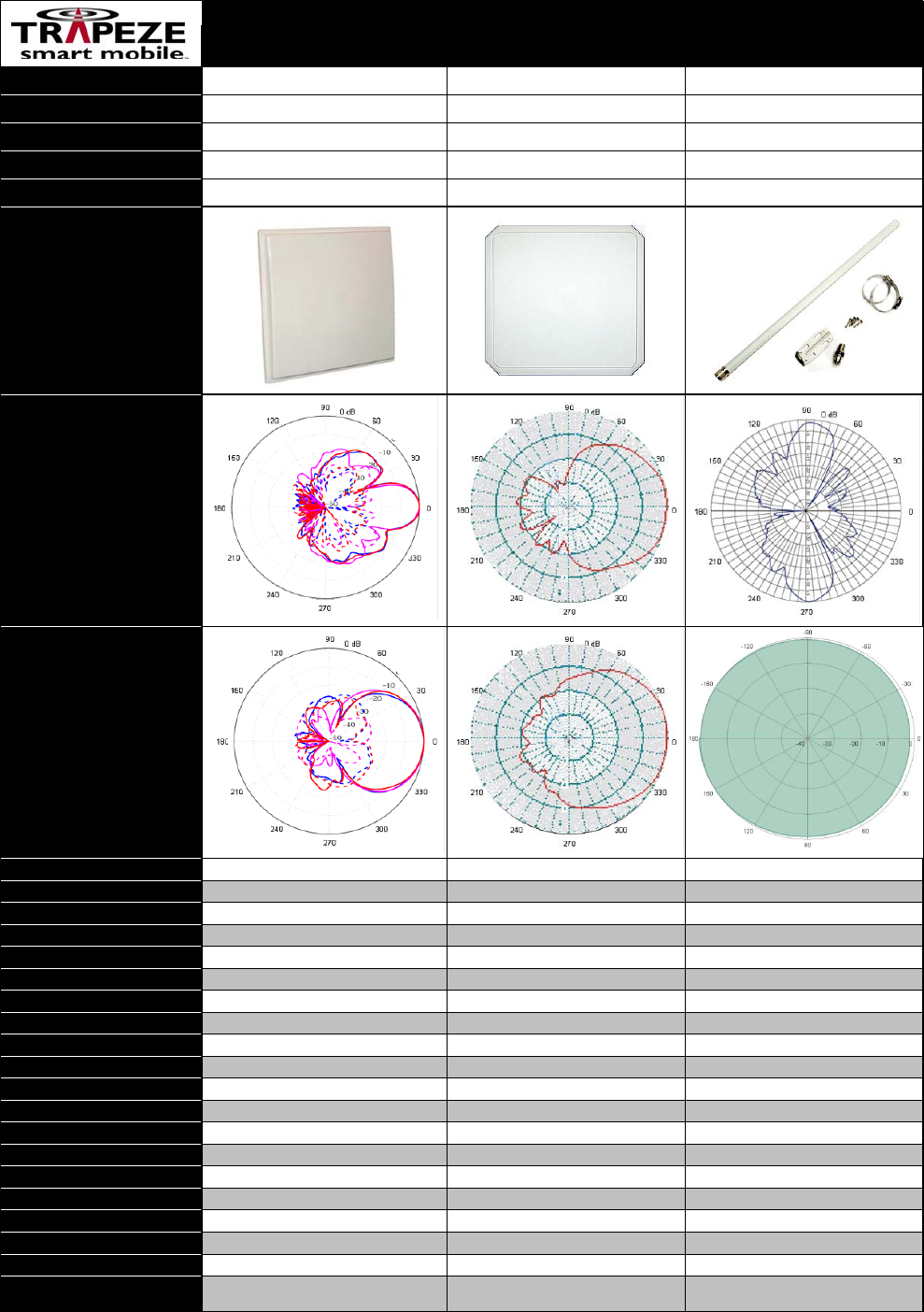

PRODUCT PHOTO
VERTICAL GAIN
HORIZONTAL GAIN
Frequency Range
Impedance
VSWR (50 Ohms)
Gain, dBi
Polarization
3dB Beamwidth V
3dB Beamwidth H
Front to Back Ratio
Maximum Power
Connector
Type / Style
Dimensions
Weight
Frontal Wind Loading
Operating Temperature
Storage Temperature
Humidity
Lightning Protection
Mounting Options
Cable
45
0
Sector 75
0
Sector 360
0
Omni
ANT-7360R-OUT
ANT-74520-OUT ANT-77555-OUT ANT-7360A-OUT
ANT-74520-OUT ANT-77555-OUT ANT-7360A-OUT
2400-2500 MHz 2400-2500 MHz 2400-2480 MHz
50 Ohms 50 Ohms 50 Ohms
2.0: 1 Max 2.0: 1 Max 2.0: 1 Max
10.9 dBi 8.0 dBi 6.0 dBi
Linear, 2 Vertical, 1 Horizontal Linear, 2 Vertical, 1 Horizontal Vertical
45 Deg 70 Deg 22 Deg
45 Deg 75 Deg 360 Deg
10 W 10 W 25 W
3 x Reverse SMA 3 x Reverse SMA N-Type Jack, Female
Panel Panel Stick
411.4 mm x 373.3 mm x 35.8 mm 259.1 mm x 259.1 mm x 33.5 mm 660 mm Length
1100 g 1800 g 226 g
200 Km/h 200 Km/h 200 Km/h
-30 to +65 Deg C -30 to +65 Deg C -30 to +65 Deg C
-40 to +80 Deg C -40 to +80 Deg C -40 to +80 Deg C
95% 95% 95%
Order Separately Order Separately Order Separately
Optional Wall or Pole Mount Optional Wall or Pole Mount Pole Mount and Direct Mount
36" (plenum rated) 36" (plenum rated)
R-OUT: 36" RG-174/U type, RP-SMA connectors
A-OUT: 36" RF-400 type, N-type connectors
DUAL BAND OUTDOOR 2.4 GHz Specifications
