Datasheet

For MP-3XX
For MP-422
For MP-522E
For MP-620
For MP-632

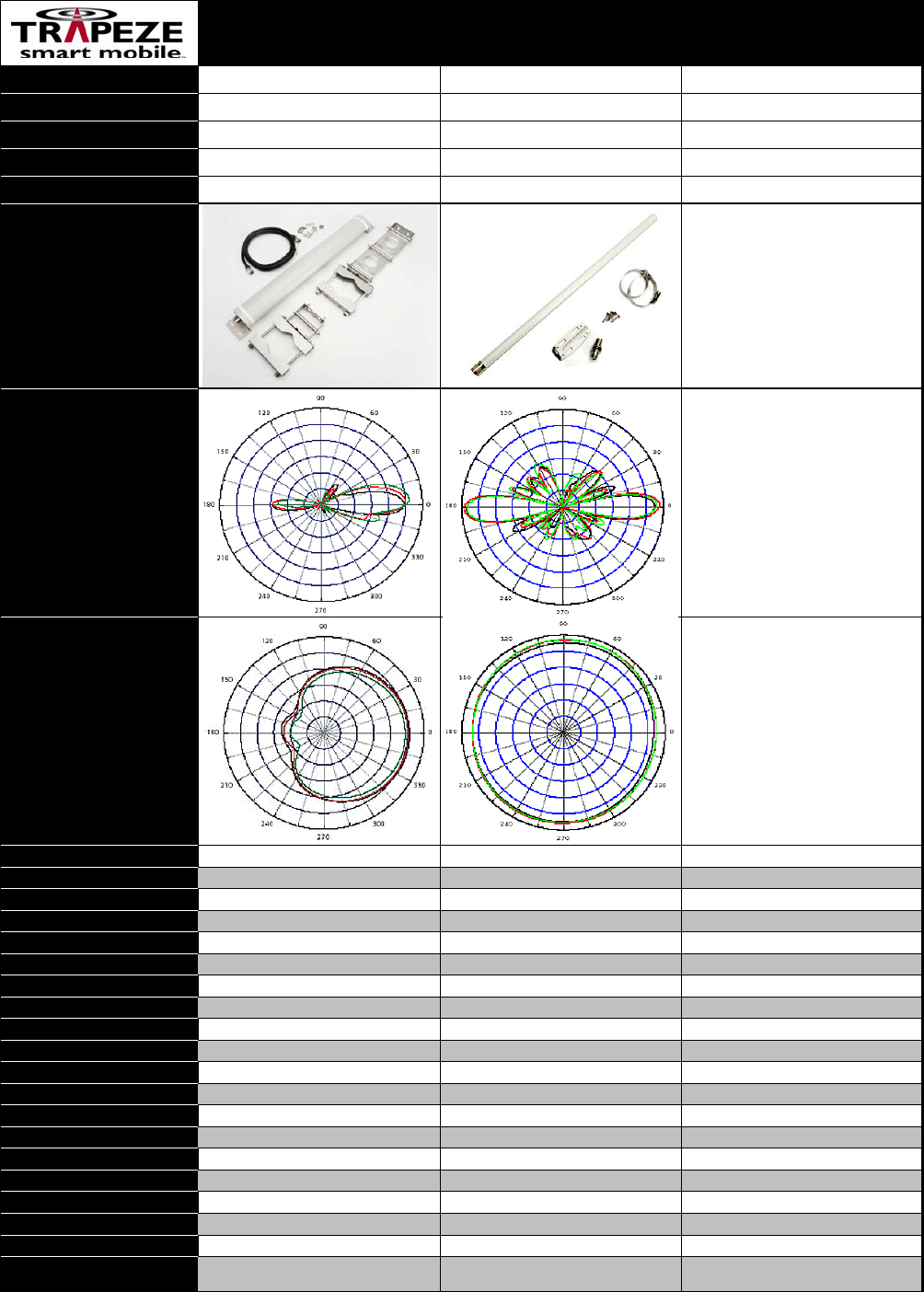

PRODUCT PHOTO
VERTICAL GAIN
HORIZONTAL GAIN
Frequency Range
Impedance
VSWR (50 Ohms)
Gain, dBi
Polarization
3dB Beamwidth V
3dB Beamwidth H
Front to Back Ratio
Maximum Power
Connector
Type / Style
Dimensions
Weight
Frontal Wind Loading
Operating Temperature
Storage Temperature
Humidity
Lightning Protection
Mounting Options
Cable
120
0
Sector 360
0
Omni-directional
ANT-1120-OUT ANT-1360-OUT
INTENTIONALLY LEFT BLANK
INTENTIONALLY LEFT BLANK
INTENTIONALLY LEFT BLANK
2400-2500 MHz 2400-2500 MHz
50 Ohms 50 Ohms
1.5: 1 Max 2.0: 1 Max
10 dBi 8 dBi
Vertical, Linear Vertical, Linear
15 Deg 15 Deg
120 Deg 360 Deg
10 dB N/A
10W 10W
N-Type Jack N-Type Plug
Sector Stick
88 x 750 x 70 mm 510 mm x 21 mm (diameter)
700g / 1.54 Lbs 170g / 0.375 Lbs
216 km/hr N/A
-40 to +80 Deg C -40 to +80 Deg C
-40 to +80 Deg C -40 to +80 Deg C
95% @ 55 deg C 95% @ 55 deg C
Order Separately Order Separately
Adjustable Wall Mount / Pole Mount Direct Mount / Optional Wall or Pole Mount
3 Meter ULA400 Coaxial NONE Required
2.4 GHz BAND OUTDOOR
7/12/2010 Trapeze Networks Antenna Summary.xls 5 of 9
