Datasheet

For MP-3XX
For MP-422
For MP-522E
For MP-620
For MP-632

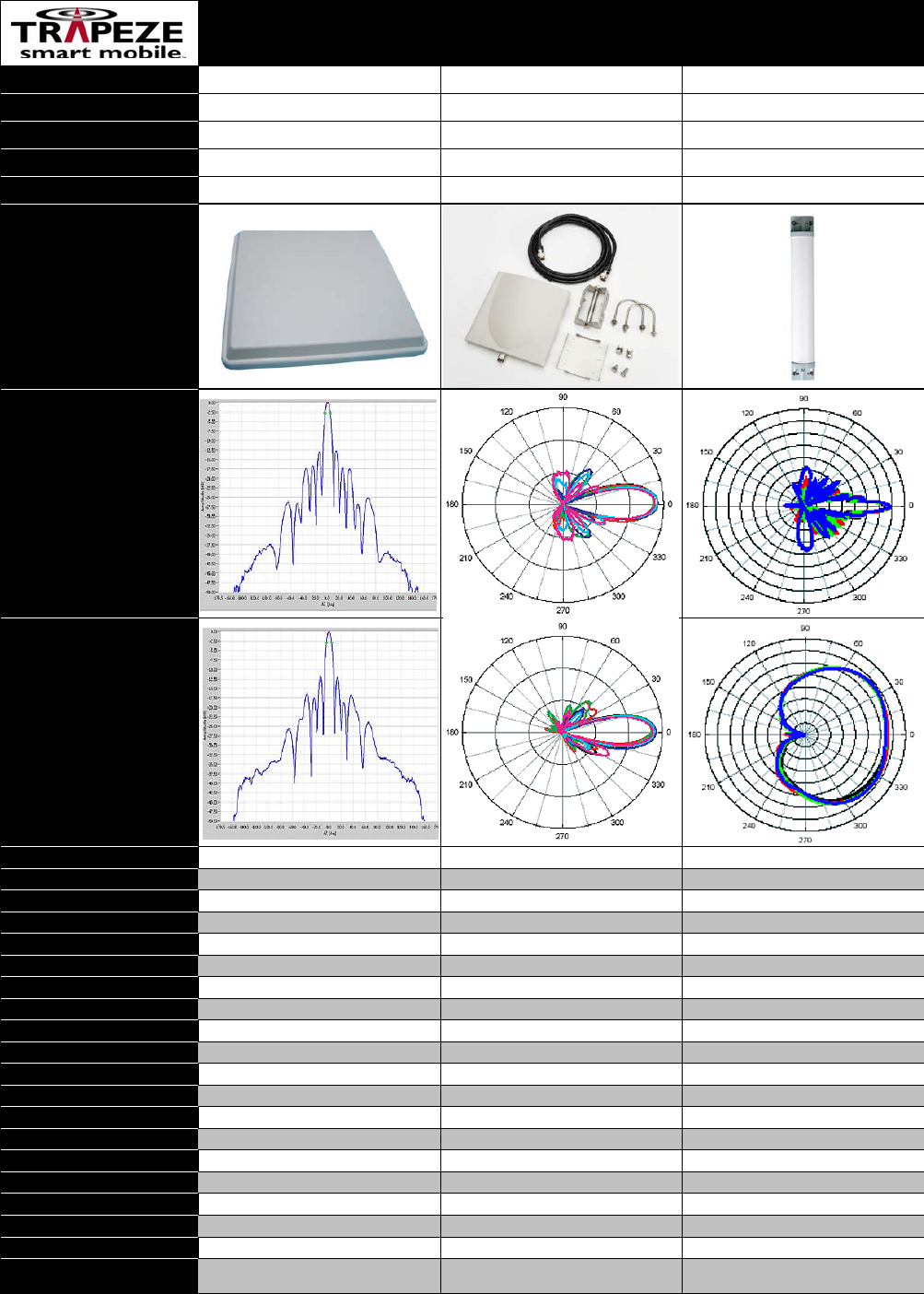

PRODUCT PHOTO
VERTICAL GAIN
HORIZONTAL GAIN
Frequency Range
Impedance
VSWR (50 Ohms)
Gain, dBi
Polarization
3dB Beamwidth V
3dB Beamwidth H
Front to Back Ratio
Maximum Power
Connector
Type / Style
Dimensions
Weight
Frontal Wind Loading
Operating Temperature
Storage Temperature
Humidity
Lightning Protection
Mounting Options
Cable
7
0
Sector 18
0
Sector 120
0
Sector
ANT-5007-OUT
ANT-5PNL-OUT ANT-5120-OUT
ANT-5007-OUT
4900-5875 MHz 4900-5875 MHz 5150-5875 MHz
50 Ohms 50 Ohms 50 Ohms
1.7: 1 Max 2.0: 1 Max 2.0: 1 Max
23.5 dBi 18 dBi 13.5 dBi
Linear, Vertical and Horizontal Vertical, Linear Vertical, Linear
7-9 Deg 18 Deg 6 Deg
7-9 Deg 18 Deg 120 Deg
ETSI TS3, TS4, TS5 25 dB 25 dB
5 W 5 W 5 W
2 x N-Type Jack, Female N-Type Jack N-Type Jack
Panel Panel Sector
370 x 370 x 40 mm 200 x 215 x 50 mm 88 x 620 x 70 mm
2100 g 825 g 590 g
200 km/hr 216 km/hr 216 km/hr
-40 to +65 Deg C -40 to +80 Deg C -40 to +80 Deg C
-40 to +80 Deg C -40 to +80 Deg C -40 to +80 Deg C
ETS 300 019-1-4,EN 302 085 (Annex A.1.1) 95% @ 55 deg C 95% @ 25 deg C
DC Grounded Order Separately Order Separately
Adjustable Wall Mount / Pole Mount Adjustable Wall Mount / Pole Mount Adjustable Wall Mount / Pole Mount
??????? 3 Meter ULA400 Coaxial 3 Meter ULA400 Coaxial
5 GHz BAND OUTDOOR
