Installation and Maintenance Manual

Installation - Mechanical
74 RLC-SVX09H-EN
Shipping Spacers
For RTWD units listed in table below, and all RTUD 80-130
ton units, remove and discard the two shipping spacers
with four bolts, located underneath the oil separator, as
shown in Figure 42, p. 74 before starting unit.
For RTUD 150-250 ton units, remove and discard the four
sets of shipping spacers (each including two spacers and
one bolt), located within the oil separator mounting
brackets, as shown in Figure , p. 74 before starting unit.
Failure to remove the spacers could result in excessive
noise and vibration transmission into the building
NOTICE:
Excessive Noise and Vibration!
Failure to remove the spacers could result in excessive
noise and vibration transmission into the building
Table 66. RTWD Units that require oil sep spacer removal
Size Hz Efficiency
80, 90, 100, 110, 120, 130, 140 60 STD
80, 90, 100, 110, 120, 130 60 HIGH
70, 80, 90, 100, 110, 120, 130, 140, 150 50 STD
60, 70, 80, 90, 100, 110, 120 50 HIGH

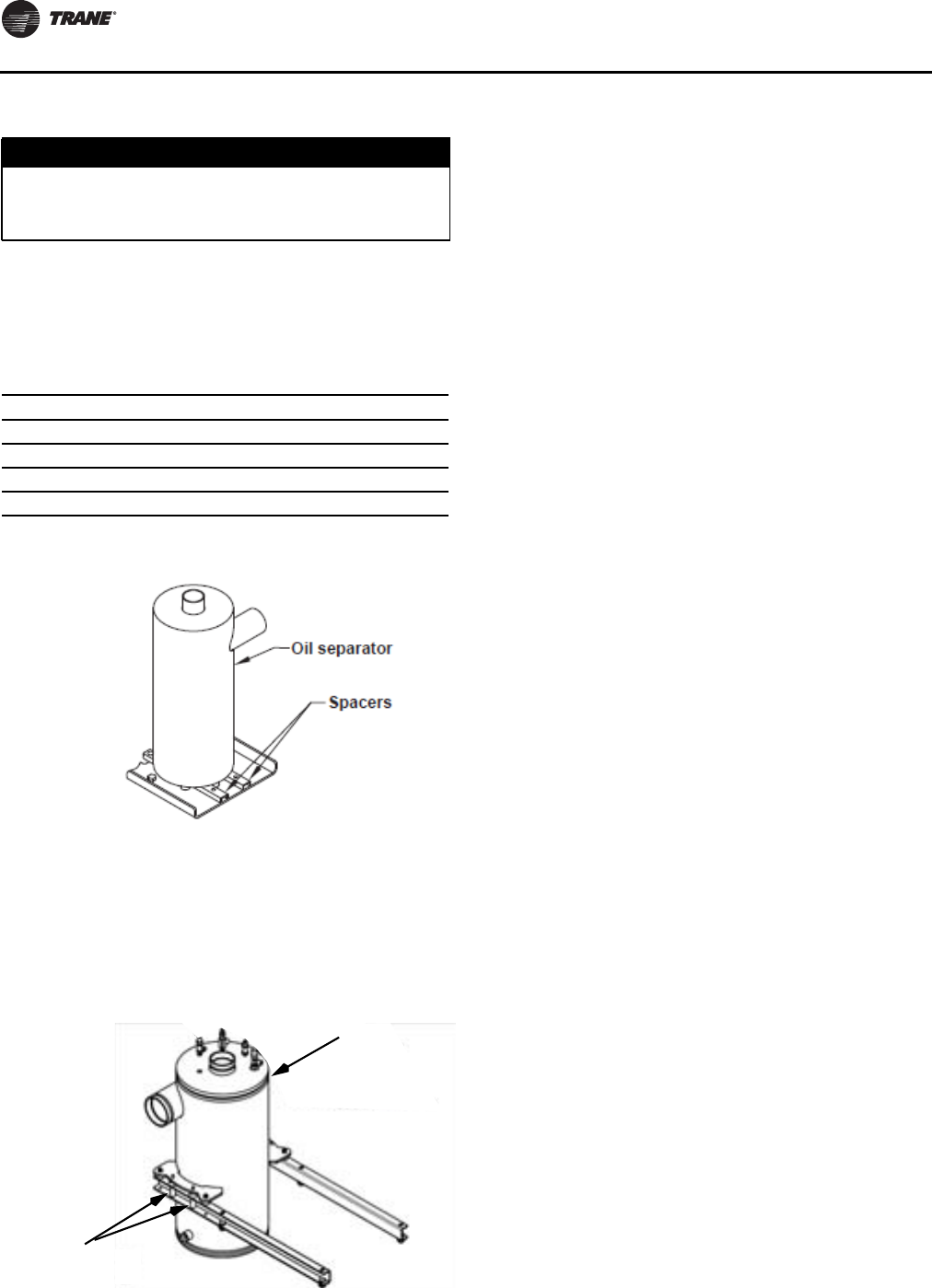

Figure 42. Oil separator spacer removal -
RTWD and RTUD 80-130T
Figure 43. Oil sep spacer removal - RTUD 150-250T
Oil Separator
Spacers
