Installation - Mechanical
50 RLC-SVX09H-EN

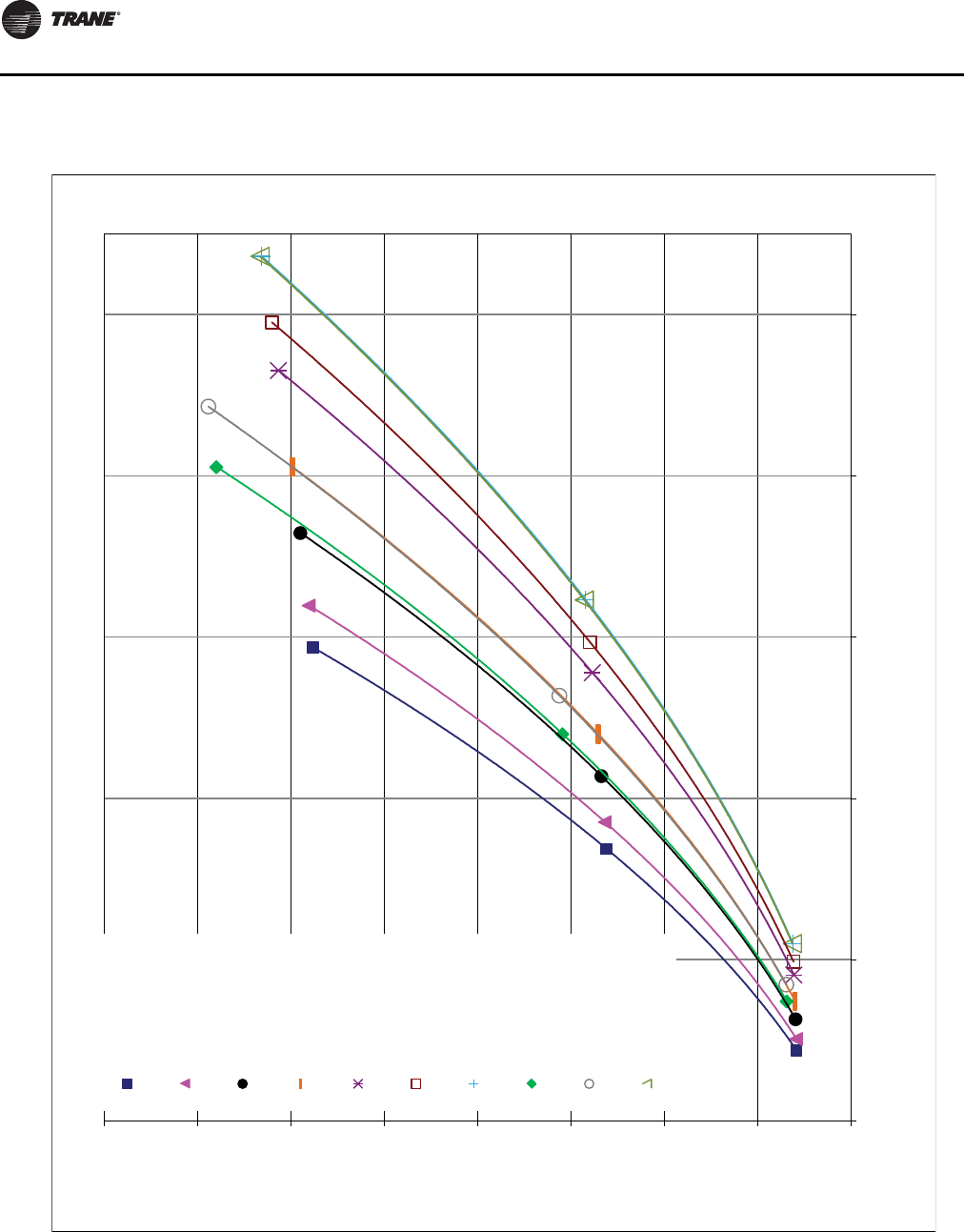

Figure 28. Evaporator pressure drop curves - 3 pass, 50 Hz - RTWD
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
50.0 150.0 250.0 350.0 450.0 550.0
Pressure Drop (ft. H2O)
Water Flow (GPM)
Waterside Pressure Drop - 50 Hz Units - 3 Pass Evaporator
RTWD130 High
RTWD140 High
RTWD160 High
RTWD180 High
RTWD200 High
RTWD220 High
RTWD250 High
RTWD160 Prem
RTWD180 Prem
RTWD200 Prem
