Installation - Mechanical
48 RLC-SVX09H-EN

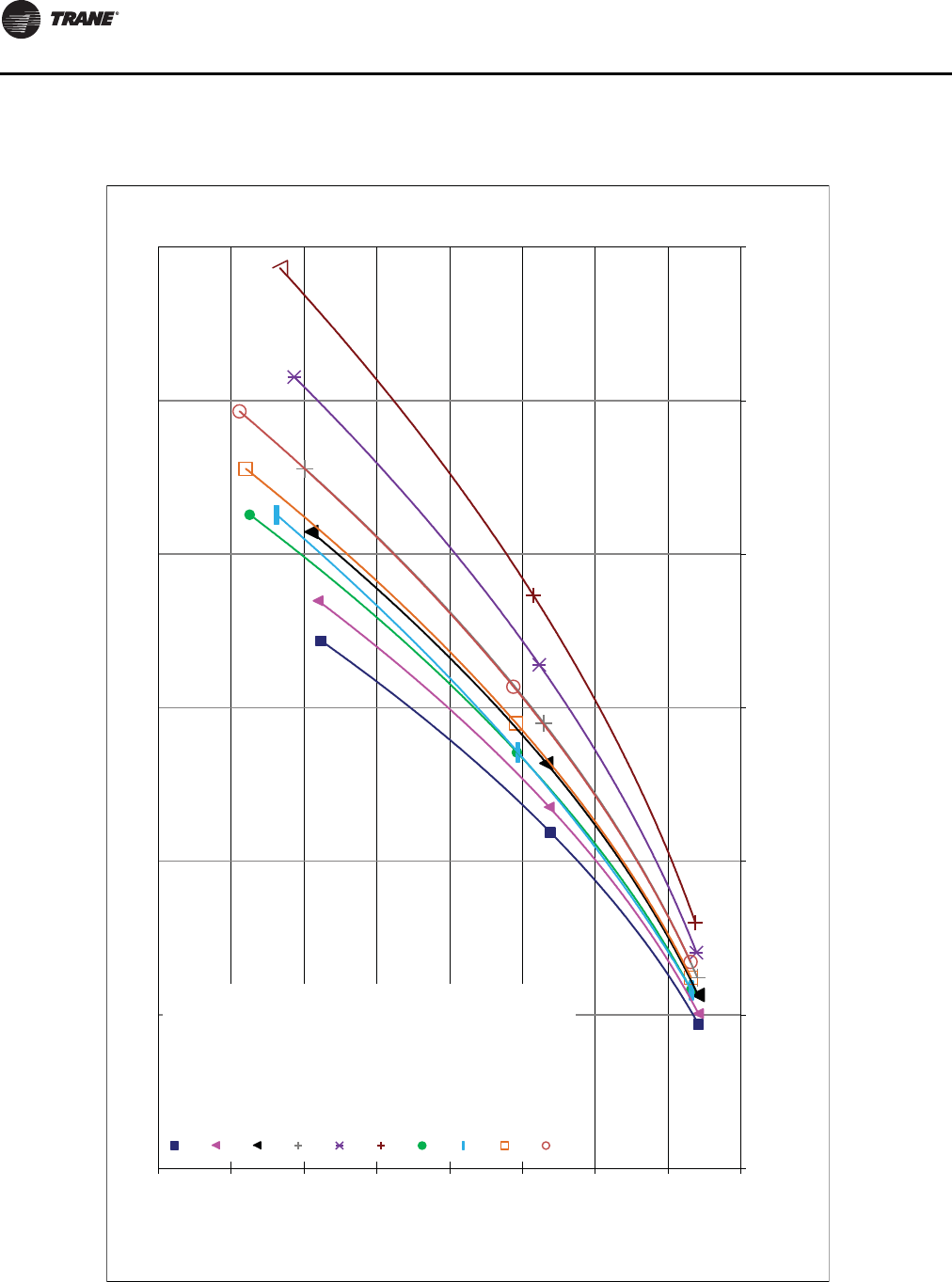

Figure 26. Evaporator pressure drop curves - 3 pass, 60 hz - RTWD, RTUD
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
80.0
0.0 100.0 200.0 300.0 400.0 500.0 600.0
Pressure Drop (ft. H2O)
Water Flow (GPM)
Waterside Pressure Drop - 60 Hz Units - 3 Pass Evaporator
RTWD150 High &
RTUD160, 180 High
RTWD160 High &
RTUD200 High
RTWD180 High &
RTUD 220 High
RTWD200 High &
RTUD 250 High
RTWD220 High
RTWD250 High
RTWD150 Prem
RTWD160 Prem
RTWD180 Prem
RTWD200 Prem
