Installation - Mechanical
RLC-SVX09H-EN 47

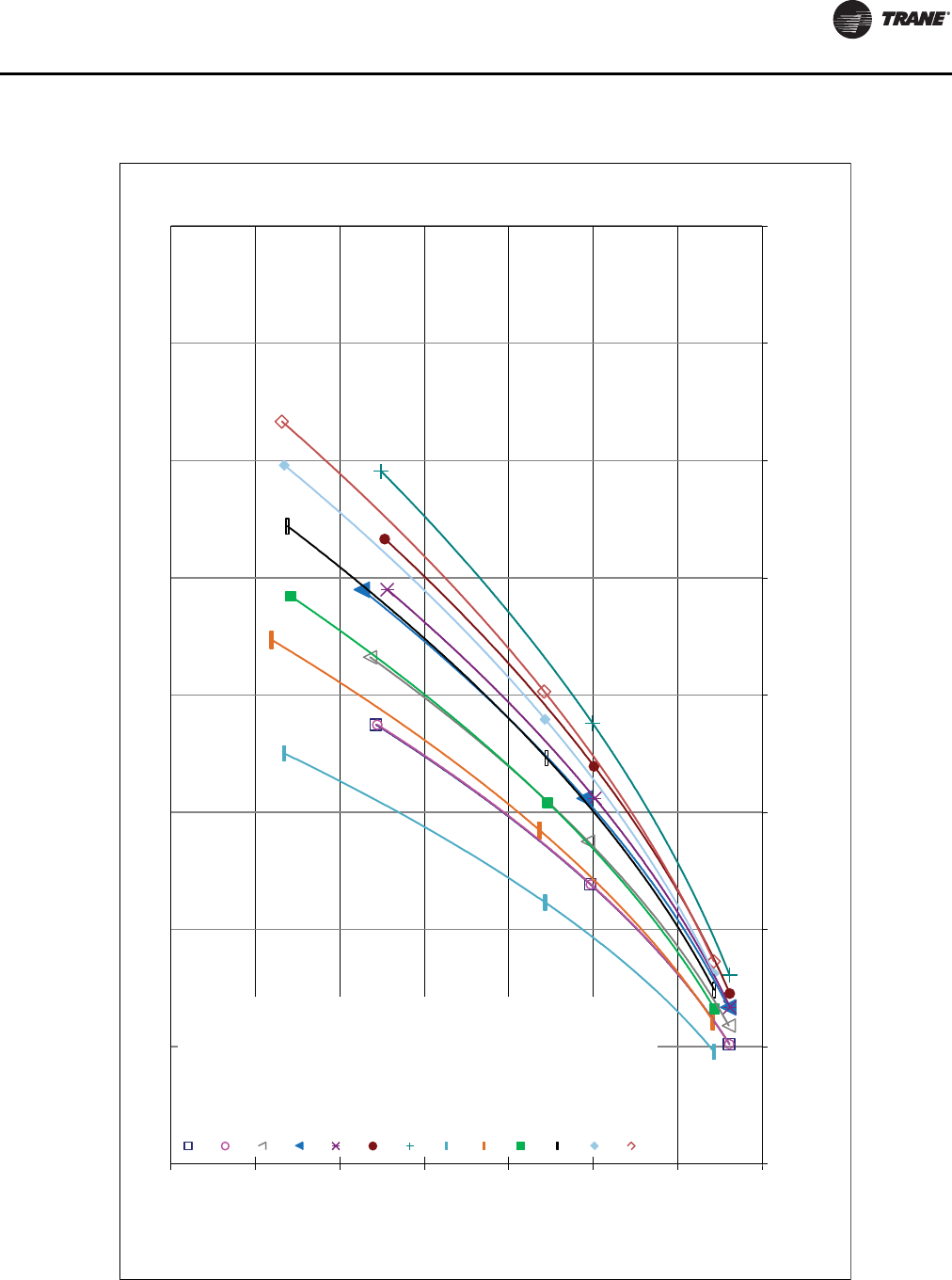

Figure 25. Evaporator pressure drop curves - 3 pass, 60 hz - RTWD, RTUD
0.0
10.0
20.0
30.0
40.0
50.0
60.0
70.0
0.0 50.0 100.0 150.0 200.0 250.0 300.0 350.0 400.0
Pressure Drop (ft. H2O)
Water Flow (GPM)
Waterside Pressure Drop - 60 Hz Units - 3 Pass Evaporator
RTWD080 Std
RTWD090 Std
RTWD100 Std
RTWD110 Std
RTWD120 Std
RTWD130 Std
RTWD140 Std
RTWD80 High
RTWD90 High
RTWD100 High &
RTUD110 High
RTWD110 High &
RTUD120, 130 High
RTWD120 High &
RTUD150 High
RTWD130 High
