Installation - Mechanical
38 RLC-SVX09H-EN
Center of Gravity

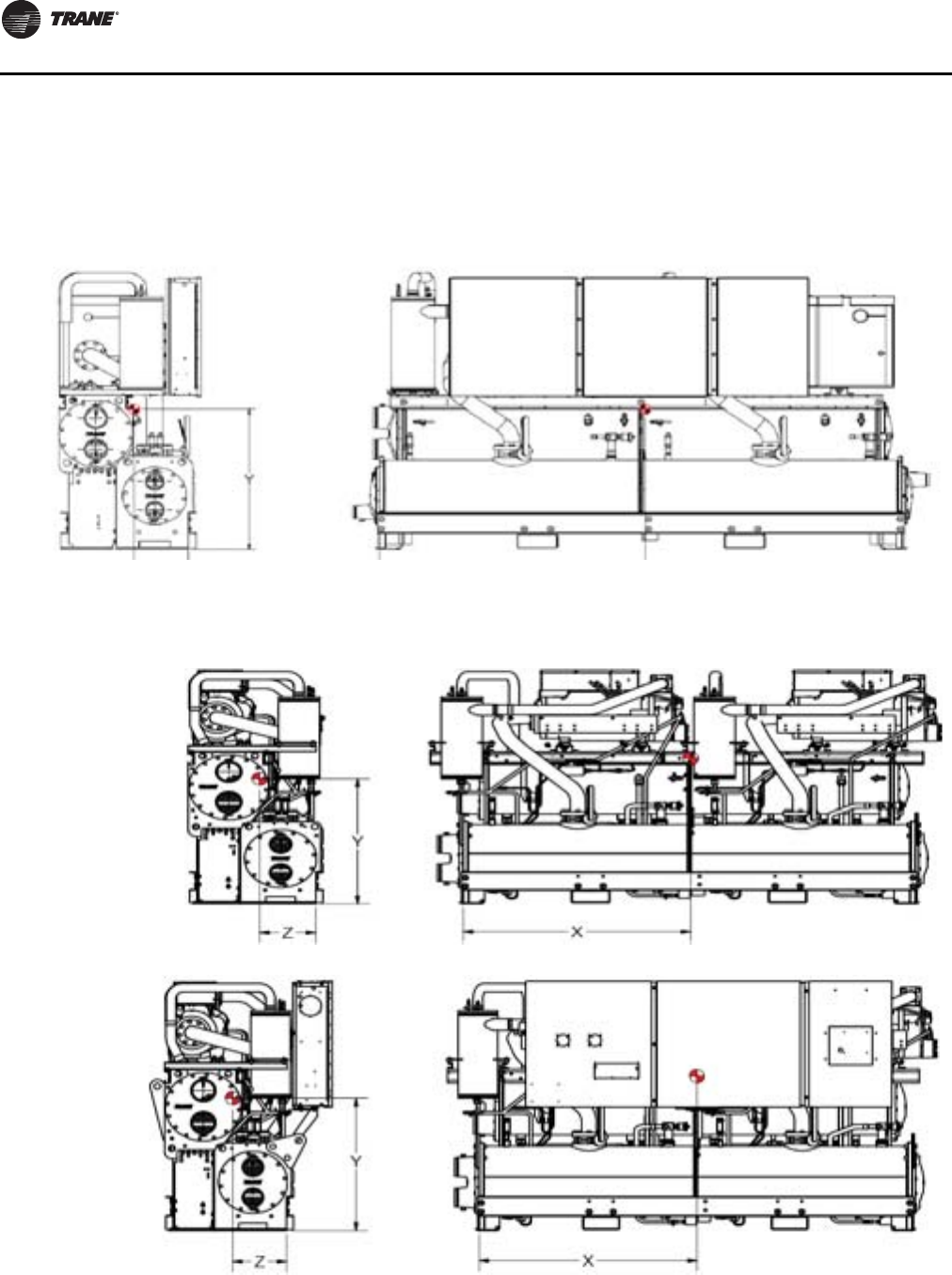

Figure 17. Center of gravity
RTWD - Std efficiency (all)
RTWD - High efficiency, 80-120T (60 Hz), 60-120T (50 Hz)
RTUD - 80-130T
Figure 18. Center of gravity
RTWD - High efficiency, 150-250T (60Hz), 130-250T (50Hz)
RTWD - Premium efficiency (all)
RTUD - 150-250T
Without panel
With panel
