Installation - Mechanical
RLC-SVX09H-EN 33

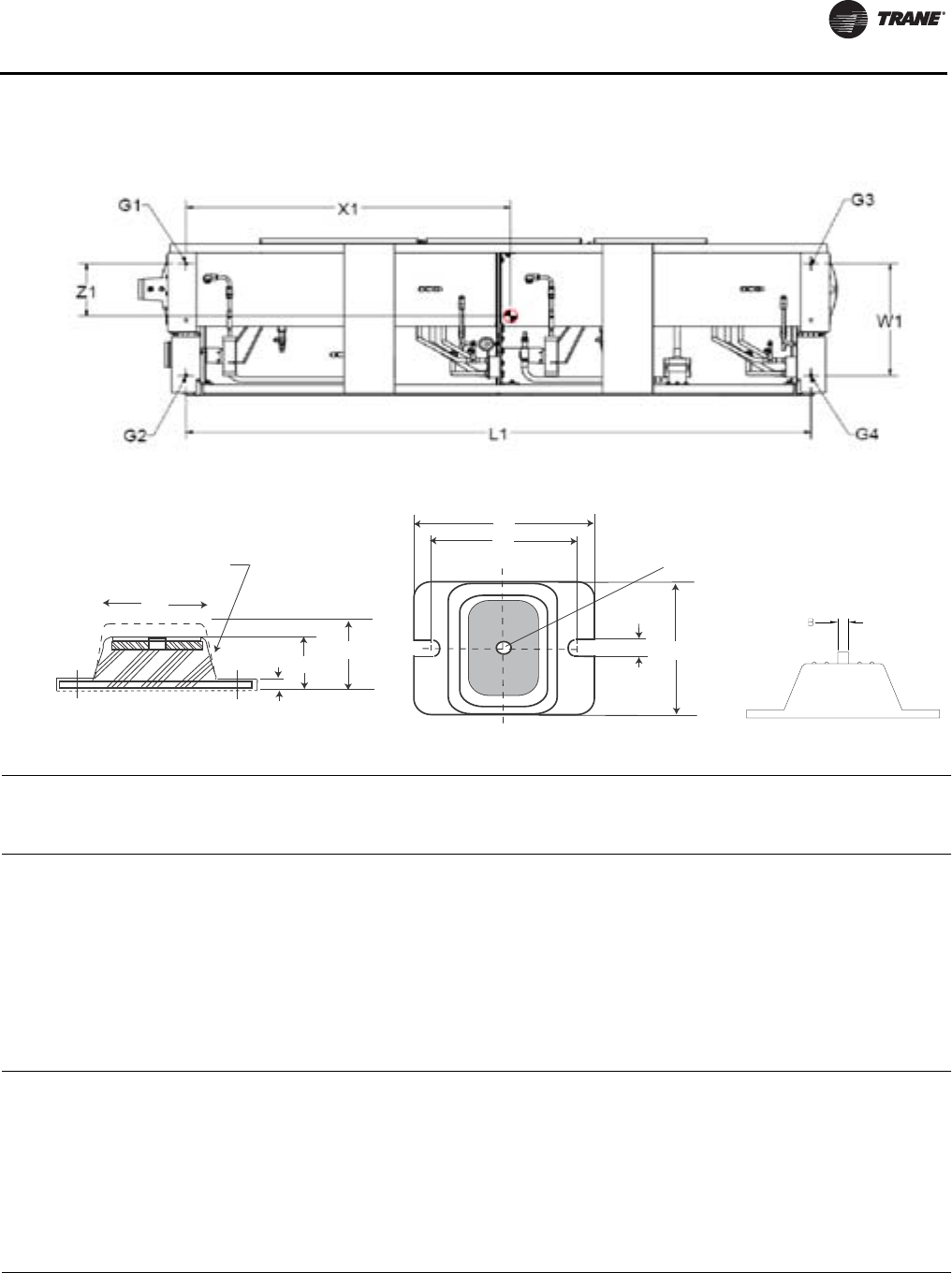

Figure 13. Isolator pad placement
Figure 14. RTWD/RTUD neoprene isolator
Table 21. Isolator part numbers and dimensions
(a)
Isolator Type
Color [Ext]
(b)
Max Load-
lbs (kg)
Maximum Dimension - in (mm)
Model Size Hz Effic. Deflection (in) A B C D E H L W
RTWD
80, 90, 100, 110,
120, 130, 140
60 STD
RDP-4
Red [62]
2250 (1021)
0.50
3.0
(76.2)
0.50
(12.7)
5.00
(127.0)
0.56
(14.2)
0.38
(9.7)
2.75
(69.8)
6.25
(158.8)
4.63
(117.6)
RTWD
80, 90, 100, 110,
120, 130
60 HIGH
RTWD
70, 80, 90, 100,
110, 120, 130,
140, 150
50 STD
RTWD
60,70,80, 90,
100, 110, 120
50 HIGH
RTUD
80, 90, 100, 110,
120, 130
60 HIGH
RTWD
150, 160, 180,
200, 220, 250
60 HIGH
RDP-4
Green [63]
3000 (1361)
0.50
3.0
(76.2)
0.50
(12.7)
5.00
(127.0)
0.56
(14.2)
0.38
(9.7)
2.75
(69.8)
6.25
(158.8)
4.63
(117.6)
RTWD
150, 160,
180, 200
60 PREM
RTWD
130, 140, 160,
180, 200, 220,
250
50 HIGH
RTWD 160, 180, 200 50 PREM
RTUD
150, 160, 180,
200, 220, 250
60 HIGH
(a) See submittal drawing to verify correct isolators.
(b) Part number is X10140305-xx
Note: Level unit to 1/4” (6.35 mm) across
width and length
Note: Level unit to 1/4” (6.35 mm) across
width and length
L
C
D
1/2-13NC-2B
W
Mounting molded in Neoprene
H (RD)
H (R)
E
A
