Unit Dimensions/Weights
28 RLC-SVX09H-EN
Weights

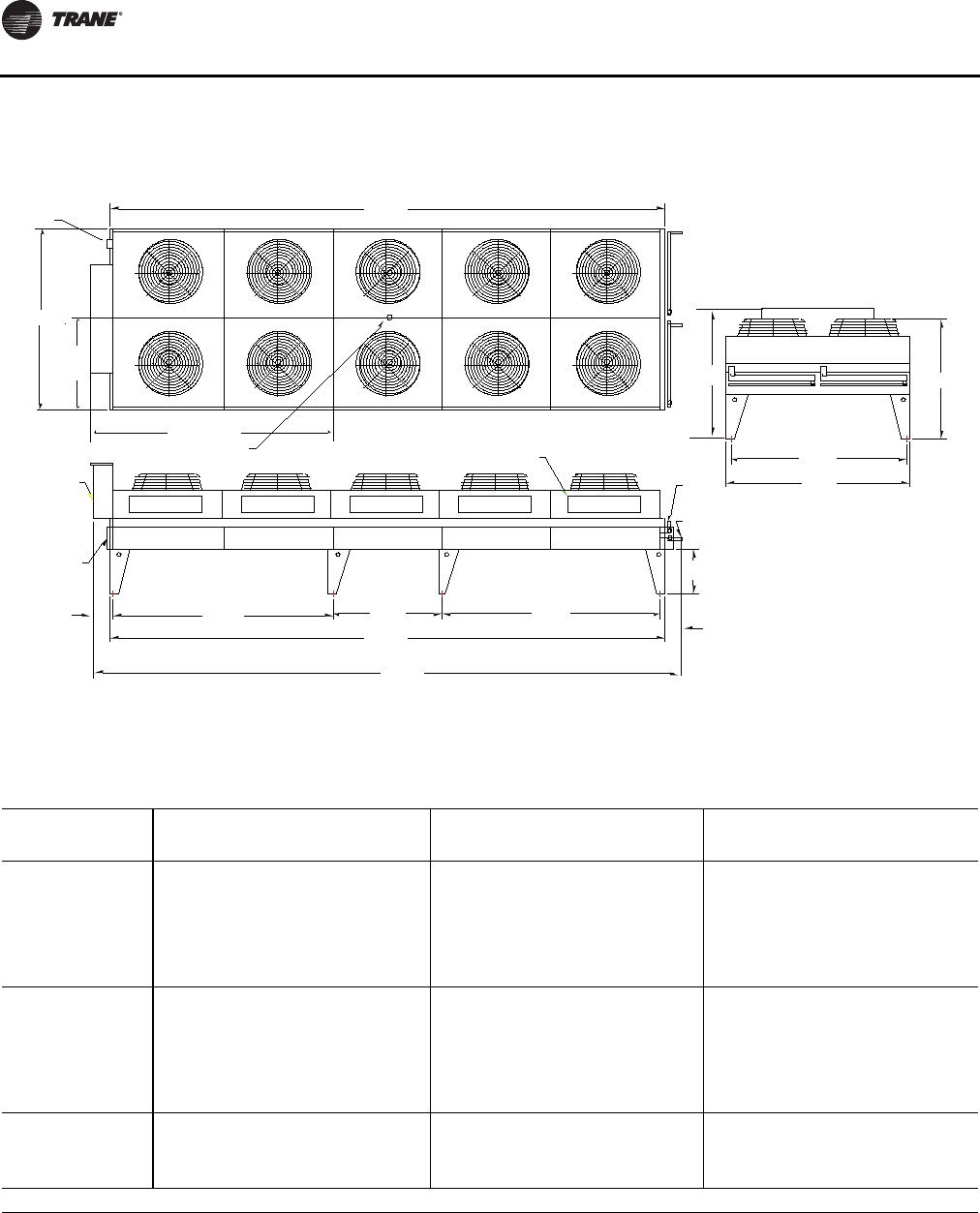

Figure 11. Trane air-cooled condenser - 120T, 130T
274.0‚
45.25‚
90.5‚
145.0‚
Approx. center of gravity
64.0‚
86.5‚
90.5‚
Disconnect
switch
Electrical box
split controls
Return
bend cover
10.0‚
108.0‚
54.0‚
108.0‚
22.0‚
8.0‚
274.0‚
292.0‚
Inlet connection
Outlet connection
58.5‚
Table 15. Weights - RTWD 60 Hz - IP units
Standard Efficiency High Efficiency Premium Efficiency
Model Operating (lb) Shipping (lb) Operating (lb) Shipping (lb) Operating (lb) Shipping (lb)
80 5900 5703 5732 5551 - -
90 5933 5721 5792 5587 - -
100 6140 5902 6255 6025 - -
110 6332 6074 6475 6208 - -
120 6530 6248 6510 6230 - -
130 6535 6244 6543 6248 - -
140 6971 6649 - - - -
150 - - 7884 7544 8724 8243
160 - - 8395 8036 9171 8691
180 - - 8490 8098 9290 8772
200 - - 8578 8157 9337 8803
220 - - 9493 8995 - -
250 - - 10071 9478 - -
Note: Weights include optional base rail forklifting. Subtract 300 lbs if this option is not selected.
