Unit Dimensions/Weights
26 RLC-SVX09H-EN

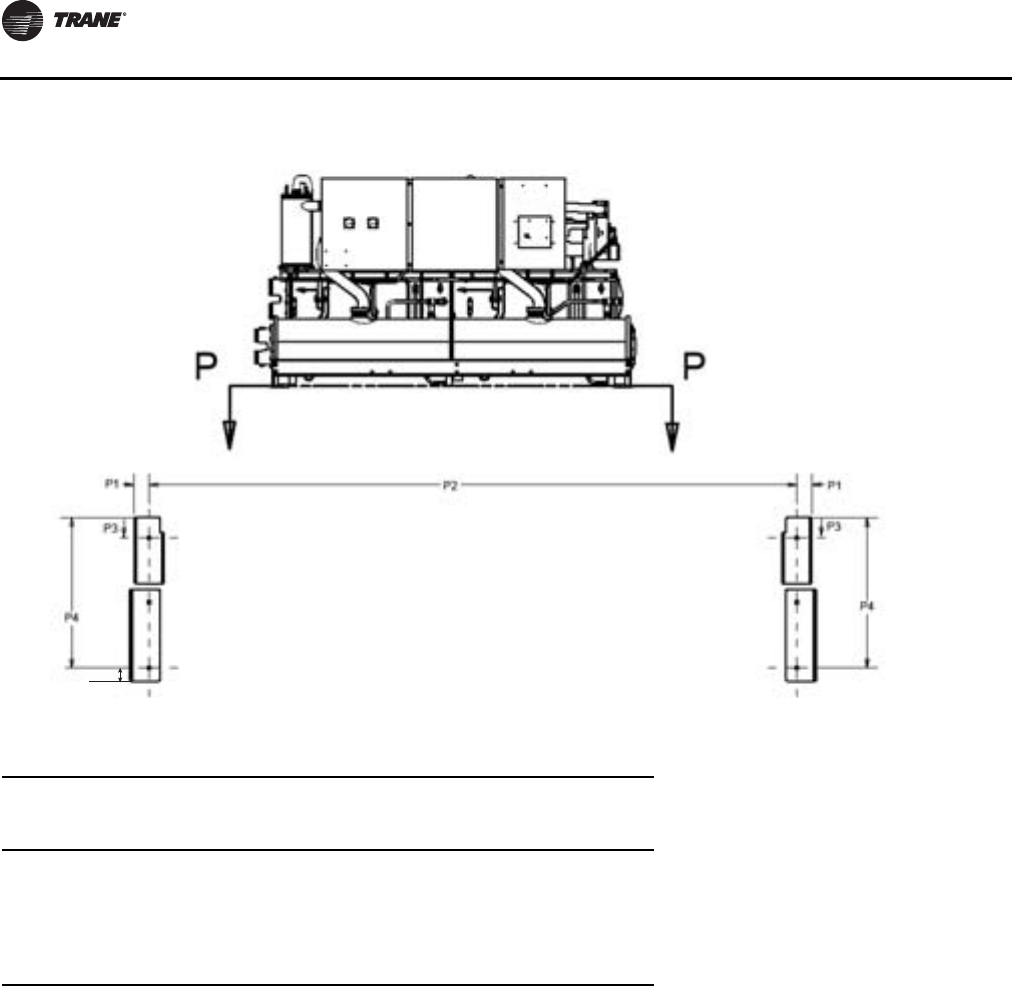

Figure 8. RTWD/RTUD Unit footprint
P5
Table 14. RTWD/RTUD – unit footprint – all sizes
Standard Efficiency
High Efficiency
200 PE (50 Hz)
Premium Efficiency
inch (mm) inch (mm) inch (mm)
P1
3.68 (93.5) 3.68 (93.5) 3.68 (93.5)
P2
123.78 (3144) 111.97 (2844) 131.65 (3344)
P3
2.43 (61.8) 4.30 (109.3) 4.30 (109.3)
P4
24.93 (633.2) 24.93 (633.2) 24.93 (633.2)
P5
2.5 (64) 2.5 (64) 2.5 (64)
Note: Base hole diameters all 0.63 inch (16 mm).
