To change the setpoint, enter a new value for the setpoint
into the text field.
If the entered value is outside the given range, the
background turns red.
If the value entered is not valid, an error message will
display and the change will not occur.
Status View
Status View displays, in real time, all non-setpoint data
organized by subsystem tabs. As data changes on the
chiller, it is automatically updated in Status View.

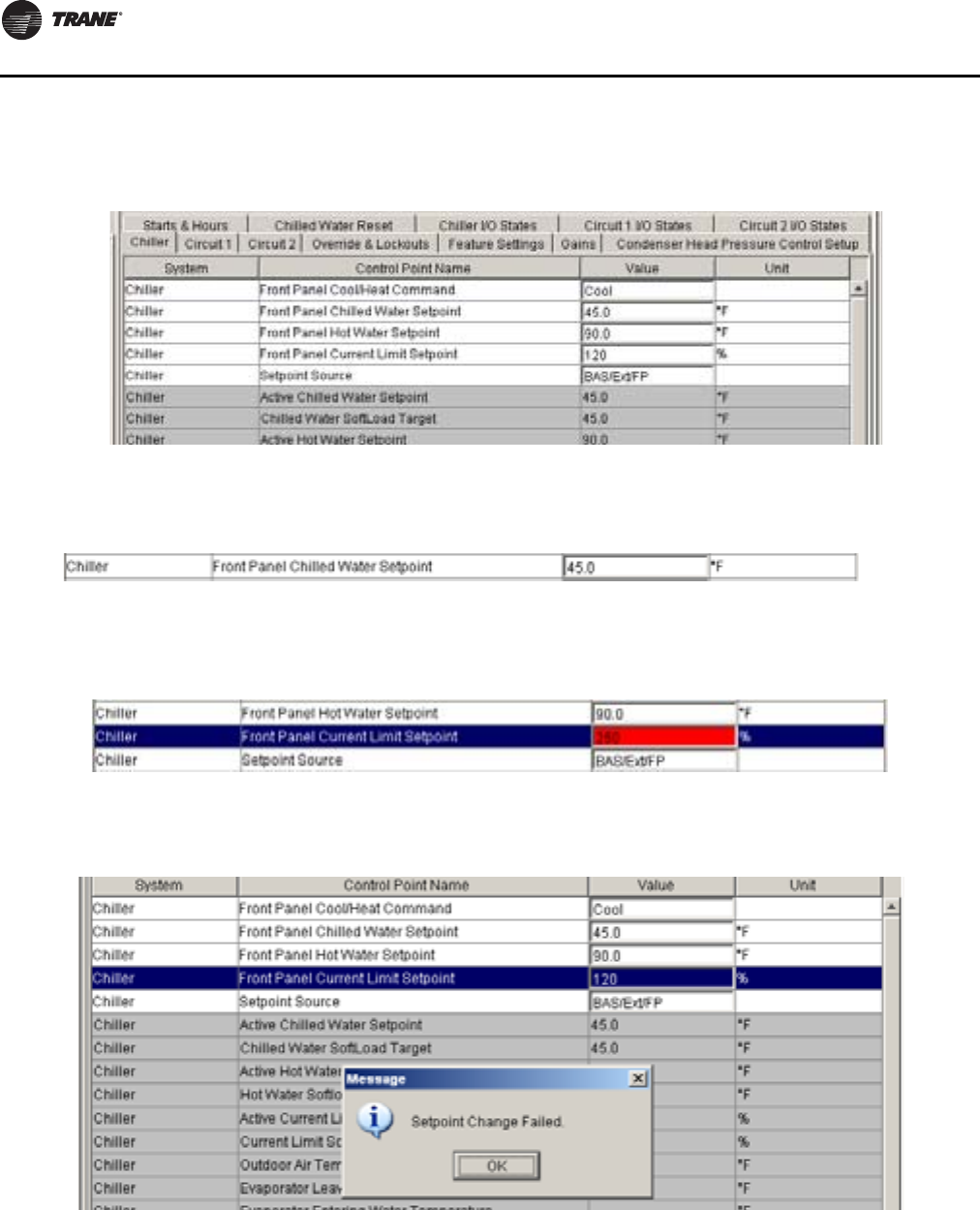

Figure 57. Fields in white
Figure 58. Change setpoint
Figure 59. Change out of range
Figure 60. Setpoint change failed
