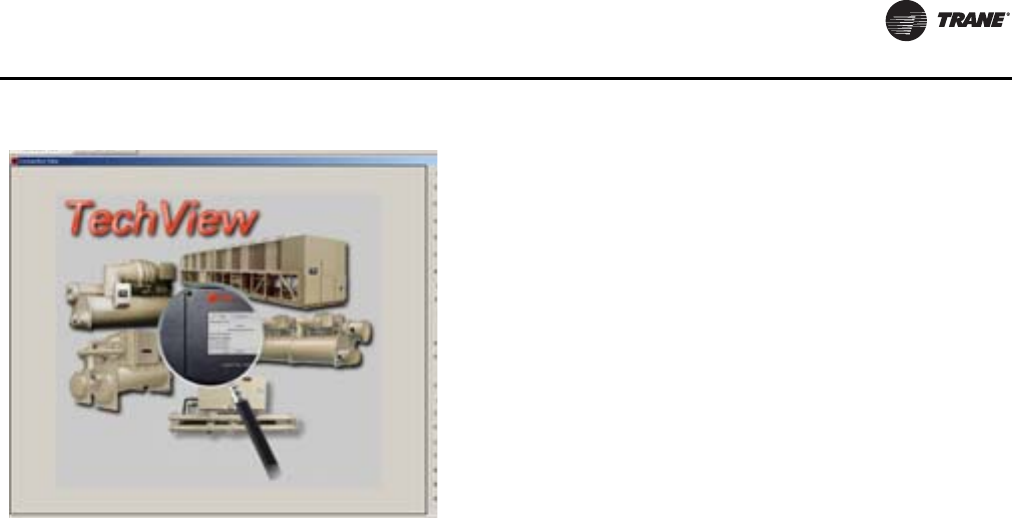

TechView
TechView is the PC (laptop) based tool used for servicing
Tracer CH530.Technicians that make any chiller control
modification or service any diagnostic withTracer CH530
must use a laptop running the software application
“TechView.”TechView is aTrane application developed to
minimize chiller downtime and aid the technicians
understanding of chiller operation and service
requirements.
Important: Performing anyTracer CH530 service
functions should be done only by a properly
trained service technician. Please contact
your localTrane service agency for
assistance with any service requirements.
TechView software is available viaTrane.com.
http://www.trane.com/COMMERCIAL/DesignAnalysis/
TechView.aspx?i=1435
This download site provides a user theTechView
installation software and CH530 main processor software
that must be loaded onto your PC in order to service a
CH530 main processor.TheTechView service tool is used
to load software into theTracer CH530 main processor.
TechView Software Download, Installation
This information can also be found at http://
www.trane.com/COMMERCIAL/DesignAnalysis/
TechView.aspx?i=1435.
1. Create a folder called “CH530” on your (C:\CH530) on
your hard drive.This \CH530 folder is the standard
recommended location for the installation file. Storing
the installation file in this location helps you remember
where it is stored and makes it easier for technical
support personnel to assist you.
2. Click the link for the latest version on theTechView
Software Download page. Enter your name, e-mail
address and other required information. Click Submit.
3. A download link will be sent to the e-mail address
provided. Before you click the link please note:
• Sent link may only be used one time.
• Internet options must be set correctly to allow
download.To verify correct setting:
– Open Internet Explorer Browser
– ClickTools
– Select Internet Options
– Select Security tab
– Click on Internet zone
– Click Custom Level button
– Scroll to Downloads section
– Verify/Enable “Automatic prompting for file
downloads”
– Click OK
– ClickYES on warning window
– Click Apply, then OK
Note: If this setting is incorrect, you may or may
not receive an error message during
download attempt.
4. Click the download link in the e-mail message.
• If the download window does not open
immediately, please look for a yellow highlighted
message bar/line near the top of your browser. It
may contain a message such as "To help protect
your security, Internet Explorer blocked this site
from downloading files to your computer. Click here
for options.." Click on message line to see options.
• When dialog box appears, click Save and navigate
to the CH530 folder created in Step 1. Click OK.
• If you do not complete the download successfully,
you will have to request another download link
(Step 2).
5. Navigate to the CH530 folder created in Step 1. Double-
click the installation (.exe) file.The License Agreement
dialog box appears.
6. Click I Agree after reviewing License Agreement. The
Choose Components dialog box appears. All
components are selected by default. (These are the
actual MP versions for all units.) Deselect any
components you do not want.
Note: Deselecting components reduces the size of the
installed application.
7. Click Install. A progress meter dialog box appears. An
information file appears when installation is complete.
Note: Techview requires a current version of JAVA. If
you do not have the current release,TechView
installation will be interrupted, and you will be
provided with information for required JAVA
software download. Once you have completed
the JAVA installation, return to Step 5 to restart
installation.
